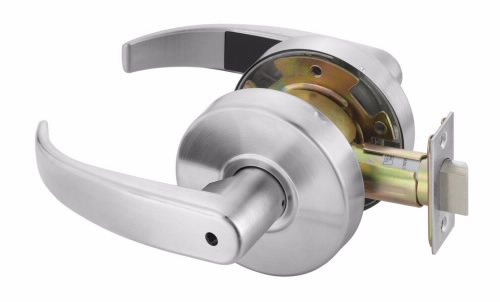

Accentra 4602LN Privacy Lever – Reliable Privacy for Bedrooms and Bathrooms

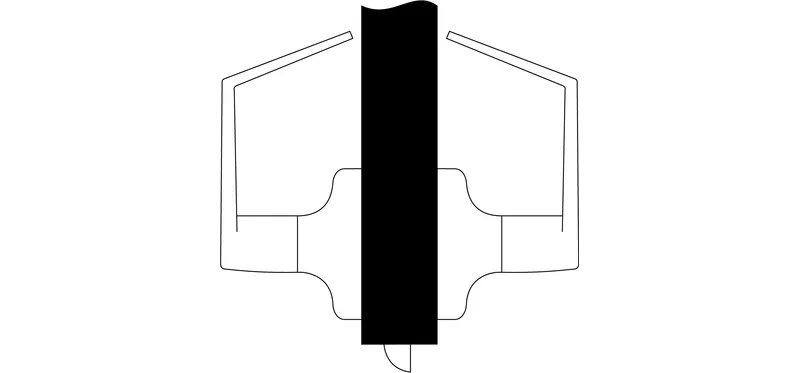

The Accentra 4602LN Privacy Lever is designed for bedrooms, bathrooms, and other privacy doors where security and convenience are essential. This Grade 2 lockset (F76A) ensures that the inside lever always operates the latchbolt, while the outside lever can be locked with a pushbutton for privacy. The button automatically releases when the inside lever is turned or the door is closed, and an emergency release on the outside lever ensures safety when needed.
Lever Options
- Standard Series

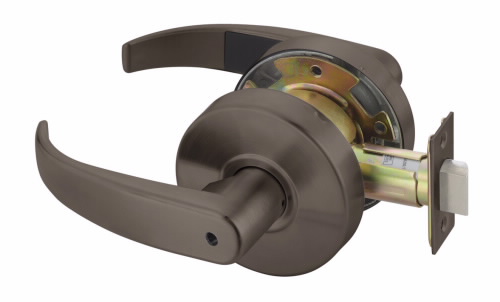

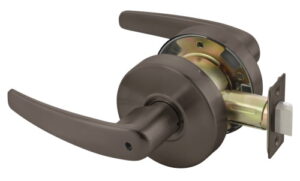

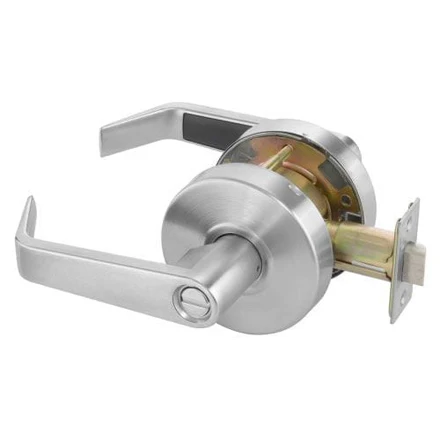

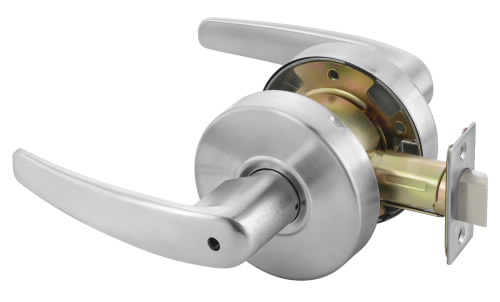

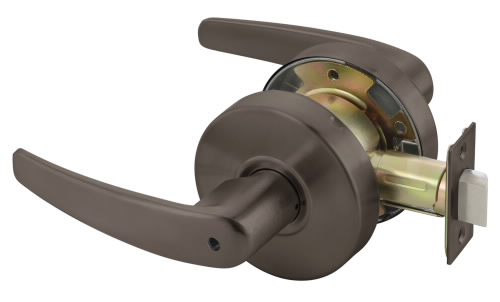

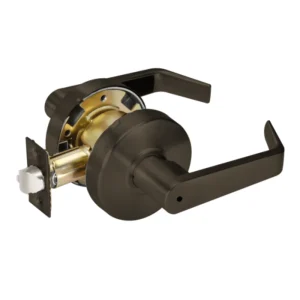

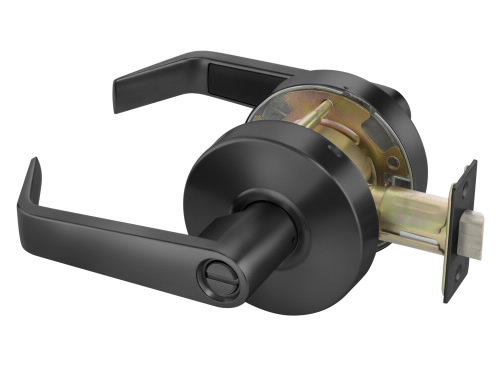

- AU – Augusta, MO – Monroe, PB – Pacific Beach
- Reflections Series

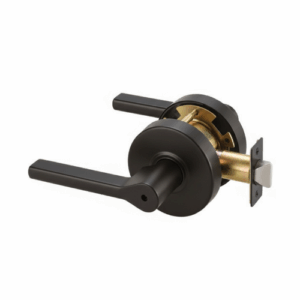

- TB – Hudson Lever, UB – Hudson Lever
Key Features
- Function: Privacy – ANSI Function No. F76A
- Operation: Inside lever always active; outside lever locks with pushbutton
- Emergency Release: Outside lever includes emergency release for safety
- Handing: Field reversible for easy installation
- Applications: Ideal for bathrooms, bedrooms, lavatories, and other privacy doors
- Available Options: 5 trims and 6 finishes for design flexibility
- ADA Compliant: Accessible lever design for universal usability
- UL/cUL Fire Rated: Up to 3 hours for added safety
- Windstorm Certified: Meets stringent local building codes
- Warranty: Backed by a 3-year mechanical warranty
Benefits
- Flexible installation with field reversible handing
- Affordable and durable, ideal for projects of any budget
- Meets multiple safety and performance certifications
- Designed for ease of use, accessibility, and commercial-grade reliability
Specifications
- ANSI/BHMA Code: A156.2, Series 4600LN, Grade 2
- Backset Depth (Standard): 2-3/4″
- Backset Range: 2-3/8″ to 2-3/4″
- Latchbolt Throw: 1/2″
- Door Thickness (Standard): 1-3/4″
- Door Thickness Range: 1-3/8″ to 1-3/4″
- Cylinder Format: Conventional, Small Format
- Cylinder Pins: 6 pin
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- Handing: Non-handed (Field Reversible)
- UL/ULC Listed: Yes
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E1886 / E1996 / E330 Certified
- Florida Building Code Approved (FL# 3063)
- UL/cUL Fire Rated – Up to 3 Hours
- NFPA 80 Compliant
- TAS 201, TAS 202, TAS 203 Certified
- ICC A117.1 & ADA Compliant
