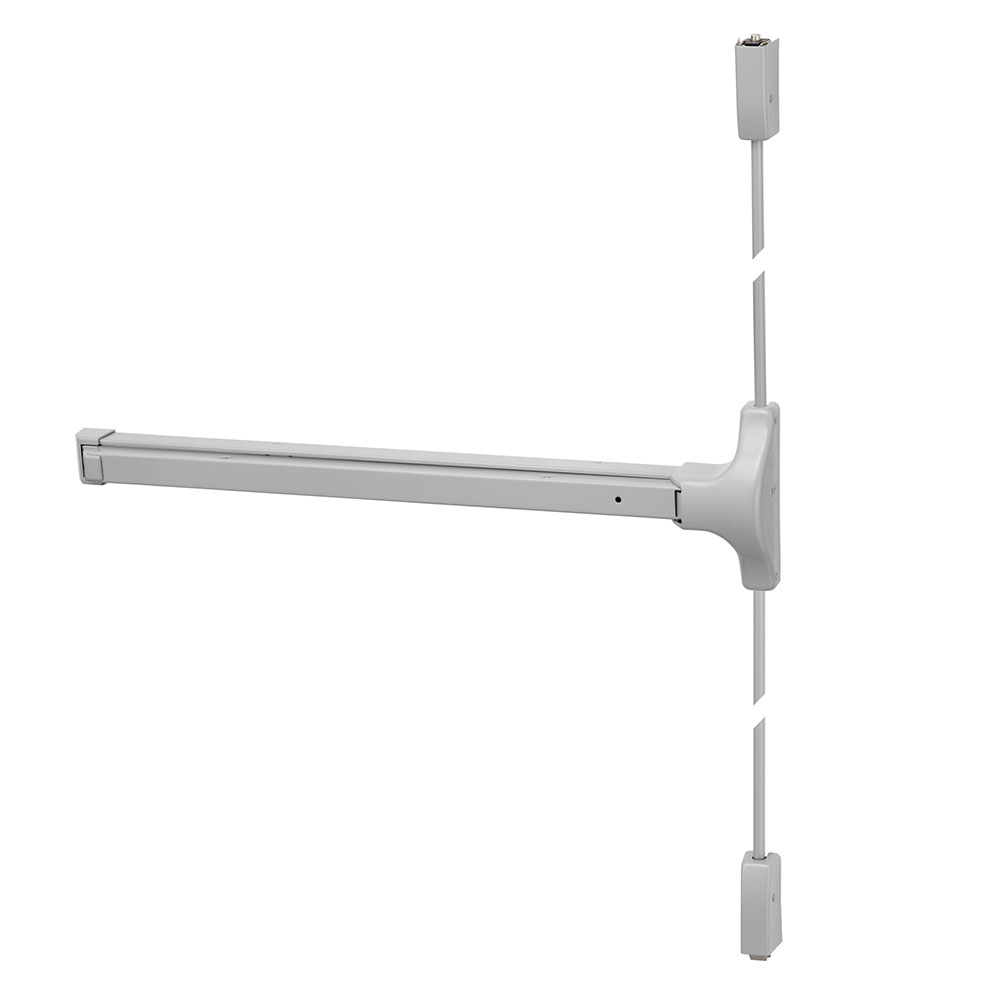

Accentra 2170 Surface Vertical Rod Exit Device

The Accentra 2170 Surface Vertical Rod Exit Device is designed for wide stile and flush doors where one or two-point latching is required. This exit-only device (outside trim sold separately) is perfect for paired doors up to 10′ in height, providing reliable exit control for both panic and fire-rated openings. In addition, a Less Bottom Rod (LBR) option is available for flexible installation.

Constructed with heavily electroplated high-grade steel and non-ferrous materials, the device is strong and resists corrosion. Furthermore, its interlocking top strike and latch mounting plate provide added stability, while a handed but field-reversible design allows for easy installation. Because it is suitable for wide stile doors, it works well in commercial and institutional buildings. As a result, it ensures safe and secure operation every time.

Certification & Compliance

• UL/cUL Listed for Panic Hardware (FVSR / FVSR7)
• UL/cUL Listed for Fire Exit Hardware (GXHX / GXHX7)
• Fire-rated up to 1-1/2 hours on 8′ x 10′ pairs and 3 hours on 8′ x 8′ pairs
• ANSI/BHMA Certified A156.3 Type 2, Grade 1

Key Features

• Designed for wide stile and flush doors
• Exit-only configuration; outside trims sold separately
• One or two-point latching for secure exit control
• Handed device; however, it is field reversible for installation flexibility
• Durable mechanisms made of electroplated steel and non-ferrous materials
• Hex key dogging supplied standard on panic devices

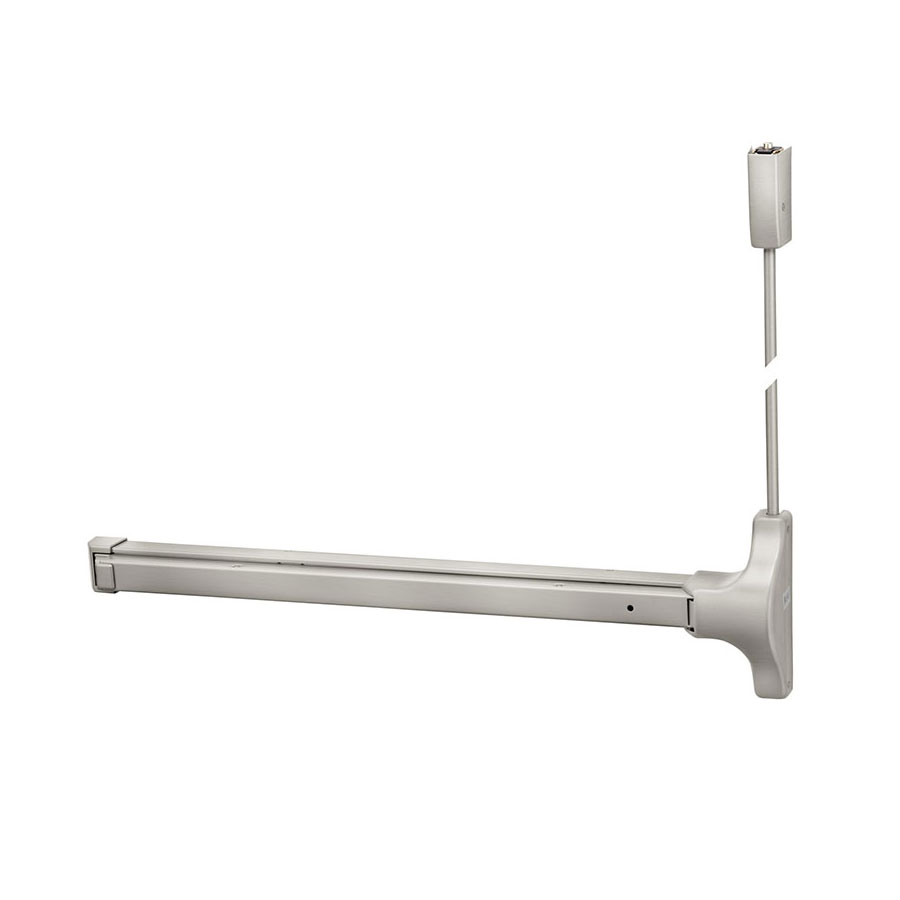

• Less Bottom Rod (LBR) option available
• Also, interlocking strike and latch plate enhances stability

Applications

• Pairs of doors
• Double egress openings
• Metal, wood, or composite door materials

Specifications

• Door widths: 30″–36″, 36″–42″, 42″–48″
• Standard door height: 7′ (device centerline at 39-15/16″ from floor)
• Optional heights: suffix -8, -9, -10
• Standard door thickness: 1-3/4″ (optional up to 3-1/2″)
• Minimum stile width: 4-1/2″ (114mm)
• Projection: 2-1/2″ active, 1-3/4″ depressed

Latching & Rod Details

• Top latchbolt: 3/4″ throw pullman-type with automatic deadlatching
• Bottom latchbolt: 5/8″ throw deadbolt, held retracted during door swing
• Vertical rods: 1/2″ O.D. tubular brass, bronze, or stainless steel with rod guides
• Strikes: top 726 roller type, bottom flush 790
• Optional 794 floor strike for threshold openings

Fasteners

• Panic hardware: machine screws and wood door fasteners
• Fire exit hardware: sex nuts and bolts supplied as standard

Compatible Trims (Sold Separately)

• 210F series utility trim
• 440F series rose trim
• 580F series rose trim with escutcheon plate
• 620F series escutcheon trim
• 630F series pull / thumbpiece trim

Options & Warranty

• Shim kit #223, sex nuts and bolts, bottom pullman latch (panic only), less bottom rod (LBR), rod extensions, MicroShield® coating
• Backed by a 3-year limited warranty
