Description

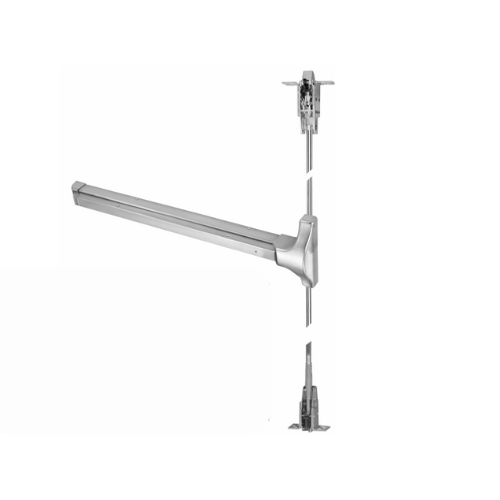

Accentra 2160 Concealed Vertical Rod Exit Device

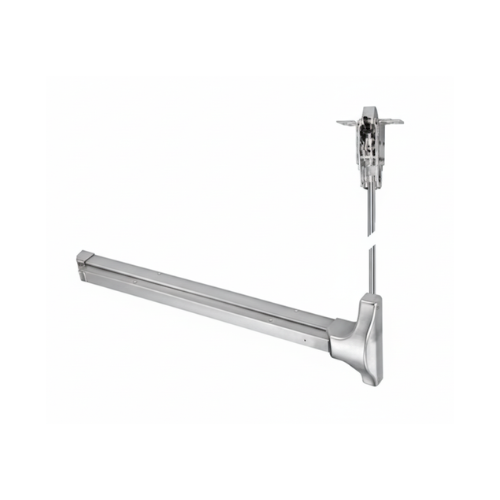

The Accentra 2160 Concealed Vertical Rod Exit Device is an exit-only solution (outside trim sold separately) designed for wood and metal doors where one or two-point latching is needed. Because it provides secure exit control, it is suitable for paired doors up to 10′ in height and meets both panic and fire-rated requirements. In addition, a Less Bottom Rod (LBR) option is available for doors where the bottom rod is not required.
While the rods are concealed, the device maintains a clean door surface. It features heavily electroplated steel and non-ferrous parts that resist corrosion and provide long-term durability. Furthermore, the device is handed but field reversible, which makes installation flexible for many door types. As a result, it ensures smooth operation and reliable latching for daily use.
Certification & Compliance
- UL/cUL listed for Panic Hardware (FVSR / FVSR7)
- UL/cUL listed for Fire Exit Hardware (GXHX / GXHX7)
- Fire-rated up to 1-1/2 hours on 8′ x 10′ pairs
- Fire-rated up to 3 hours on 8′ x 8′ pairs
- ANSI/BHMA Certified A156.3 Type 7 & Type 8, Grade 1
Key Features
- Concealed vertical rod design for a clean door face
- Exit-only configuration; outside trims sold separately
- One or two-point latching for flexible door control
- Handed device; however, it is field reversible
- Durable electroplated steel and non-ferrous materials resist corrosion
- Less Bottom Rod (LBR) option available
- Hex key dogging supplied standard on panic devices
Applications
- Paired doors
- Double egress openings
- Wood and metal door materials
Specifications
- Door widths: 30″–36″, 36″–42″, 42″–48″
- Standard door height adjustable up to 8′
- Optional heights: suffix -9 or -10
- Standard door thickness: 1-3/4″
- Optional door thicknesses: 2″ and 2-1/4″
- Minimum stile width: 4-1/2″
- Projection: 2-1/2″ active, 1-3/4″ depressed
Latching & Rod Details
- Top latchbolt: 3/4″ pullman-type with automatic deadlatching
- Bottom latchbolt: 5/8″ deadbolt, held retracted during door swing
- Vertical rods: 1/2″ O.D. telescoping tubular rods
- Top strike: mortised 761
- Bottom strike: flush-mounted 790
- Optional 794 floor strike available for threshold openings
- Heat-activated door bolt (Popper) used when LBR is selected on fire-rated devices
Fasteners
- Panic hardware: machine screws and wood door fasteners
- Fire exit hardware: sex nuts and bolts supplied as standard
Compatible Trims (Sold Separately)
- 210F series utility trim
- 440F series rose trim
- 580F series rose trim with escutcheon plate
- 620F series escutcheon trim
- 630F series pull / thumbpiece trim
Options & Warranty
- Shim kit #223, sex nuts and bolts, bottom pullman latch (panic only), less bottom rod (LBR), rod extensions, MicroShield® antimicrobial coating
- Backed by a 3-year limited warranty
