Description

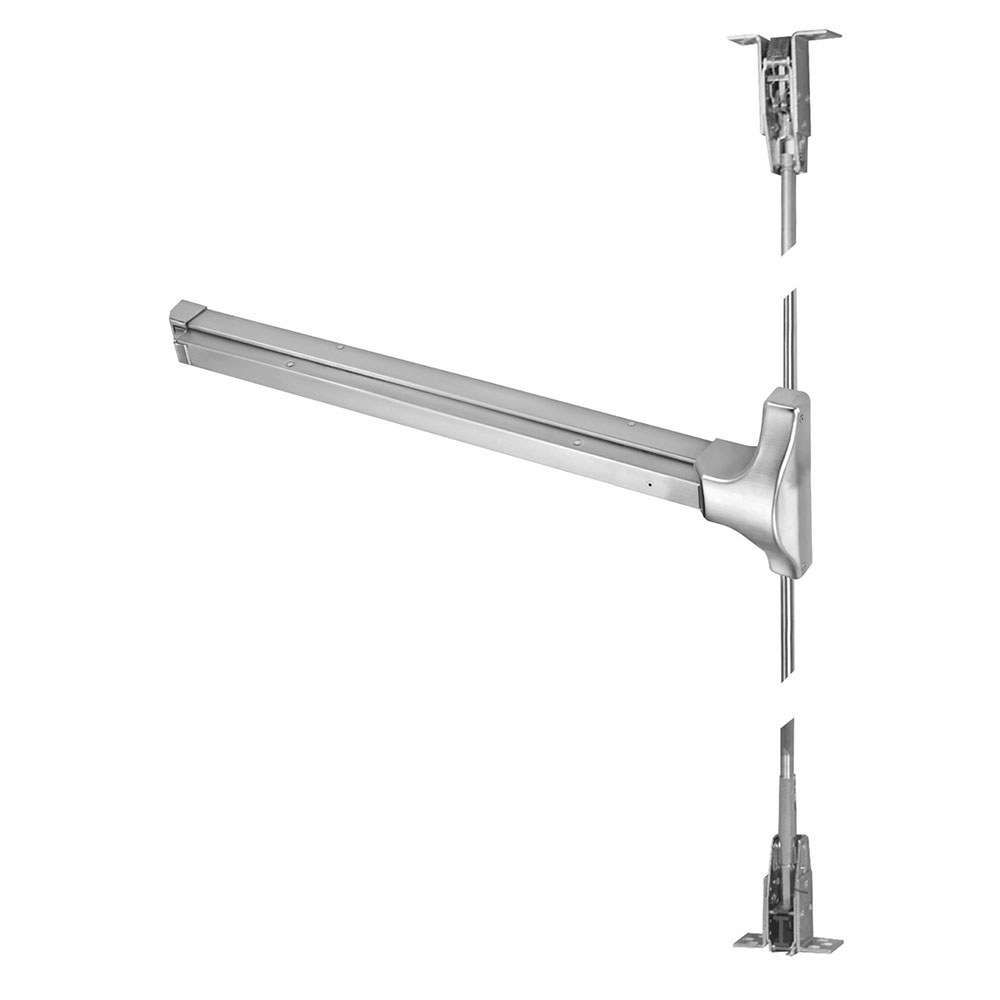

Accentra 2120 Concealed Vertical Rod Exit Device

The Accentra 2120 Concealed Vertical Rod Exit Device is an exit-only solution (outside trim sold separately) designed for metal doors where clean looks and strong two-point latching are needed. Because the rods are concealed, the device keeps the door surface smooth while still providing safe and reliable exit use for paired doors up to 8′ in fire-rated openings and up to 10′ in panic applications.

The device uses a deadlocking top pullman latch and a direct-pull bottom deadbolt to secure the door. When the device is released, both bolts stay retracted until the door closes; as a result, door alignment stays consistent and wear is reduced. In addition, the unit is handed but field reversible, which makes installation easier in many layouts.

Certification & Compliance

• UL/cUL Listed for Panic Hardware (FVSR / FVSR7)
• UL/cUL Listed for Fire Exit Hardware (GXHX / GXHX7)
• Fire-rated up to 3 hours on 8′ x 8′ paired doors
• ANSI/BHMA Certified A156.3 Type 8, Grade 1

Key Features

• Concealed vertical rod design for a clean, flush appearance
• Exit-only configuration; outside trims sold separately
• Two-point latching for added security and door control
• Handed device; however, field reversible for easy installation
• Bolts remain retracted while the door is open
• Hex key dogging supplied standard on panic devices

Applications

• Paired doors
• Double egress openings
• Metal door applications only

Specifications

• Door widths: 30″–36″, 36″–42″, 42″–48″
• Standard door height: adjustable up to 8′
• Optional heights: up to 10′ for panic hardware using rod extensions
• Standard door thickness: 1-3/4″
• Optional door thicknesses: 2″ and 2-1/4″
• Minimum stile width: 4-1/2″
• Projection: 2-1/2″ active, 1-3/4″ depressed

Latching & Rod Details

• Top latchbolt: 3/4″ throw pullman-type with automatic deadlatching
• Bottom latchbolt: 5/8″ throw deadbolt, held retracted during door swing
• Vertical rods: 1/2″ O.D. telescoping tubular rods
• Strikes: top roller type 791; bottom flush-mounted 790
• Optional 794 floor strike available for threshold openings

Fasteners

• Panic hardware: machine screws and wood door fasteners
• Fire exit hardware: sex nuts and bolts supplied as standard

Compatible Trims (Sold Separately)

• 210F series utility trim
• 440F series rose trim
• 580F series rose trim with escutcheon plate
• 620F series escutcheon trim
• 630F series pull / thumbpiece trim

Options & Warranty

• Shim kit #223, sex nuts and bolts, bottom pullman latch (panic only), MicroShield® antimicrobial coating
• Backed by a 3-year limited warranty
