Description

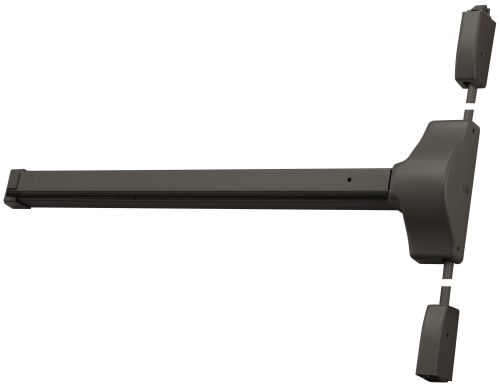

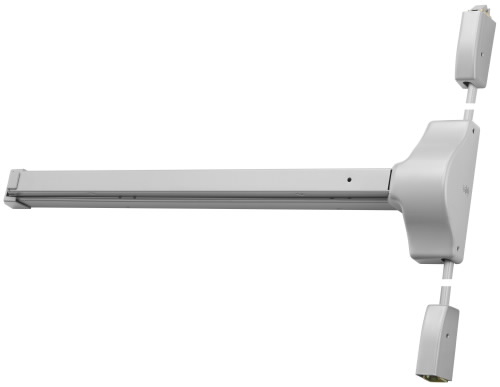

The Accentra 1810 Surface Vertical Rod Exit Device is designed for metal, wood, or composite paired doors where secure two-point latching is required. Suitable for doors up to 8 feet in height, this surface-mounted device provides reliable, code-compliant egress for both panic and fire-rated applications.

Built for dependable daily use, the device features a positive action linkage with a deadlocking top Pullman bolt and a direct-pull bottom deadbolt. When the device is released, both bolts remain retracted until the door is fully closed, ensuring smooth operation and consistent alignment. In addition, the unit is handed but field reversible, allowing flexible installation on wide stile and flush doors.

Exit Only (outside trim sold separately).

Certification & Compliance

• UL/cUL Listed for Panic Hardware (FVSR / FVSR7)
• UL/cUL Listed for Fire Exit Hardware (GXHX / GXHX7)
• Fire-rated up to 3 hours on openings up to 4′ x 8′ single doors and 8′ x 8′ paired doors
• ANSI/BHMA Certified A156.3 Type 2, Grade 1

Key Features

• Surface vertical rod exit device for paired doors
• Designed for wide stile and flush doors
• Two-point latching with top Pullman bolt and bottom deadbolt
• Handed device; however, field reversible for easier installation
• Bolts remain retracted while the door is open
• Hex key dogging supplied standard on panic devices

Applications

• Paired doors
• Double egress openings
• Metal, wood, or composite door materials

Specifications

• Door widths: 30″–36″, 36″–42″, 42″–48″
• Standard door height: 7′
• Optional height: up to 8′ with rod extensions
• Standard door thickness: 1-3/4″
• Minimum stile width: 4-1/2″
• Projection: 2-1/2″ active, 1-3/4″ depressed

Latching & Strike Details

• Top strike: roller type 791
• Bottom strike: flush-mounted 790
• Optional 794 floor strike for threshold openings
• Optional 702 bottom Pullman latch (panic only)

Compatible Trims

• 210F series utility trim
• 420F series escutcheon trim
• 440F series rose trim

Options & Warranty

• Shim kit #224
• Sex nuts and bolts
• Bottom Pullman latch (panic only)
• Backed by a 3-year limited warranty

Series Overview

The 1800 Series Exit Devices are ideal for economy commercial applications where consistent quality, durability, and ease of installation are essential. With ANSI/BHMA Grade 1 certification and versatile mounting options, the 1800 Series delivers reliable performance across a wide range of facilities.
