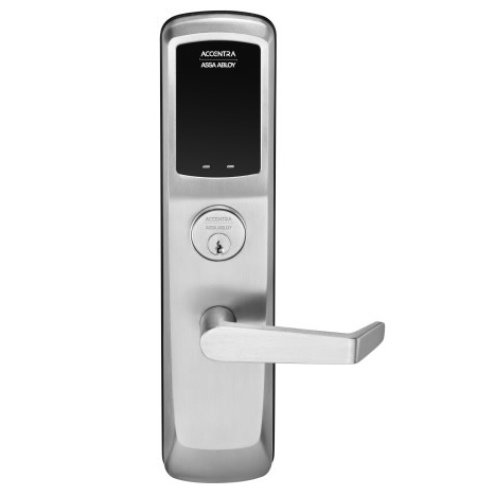

Accentra Nextouch NTT623-NR Exit Touchscreen Cylinder– Exit Rim Trim with Cylinder Override

The Accentra Nextouch NTT623-NR Exit Touchscreen Cylinder is a touchscreen-enabled exit rim trim designed for commercial doors that require keyless access with reliable mechanical key override. Built on the trusted nexTouch® platform, this trim upgrades existing exit devices while maintaining life-safety egress and secure exterior access.

Access is provided through the capacitive touchscreen or by mechanical key override when needed. From the interior, the pushbar retracts the bolt for fast and compliant egress, while the exterior lever retracts the bolt when unlocked. When the outside lever is locked, entry is restricted until a valid code is entered or the key is inserted and rotated to the left. Once the key is removed, the outside lever automatically re-locks, ensuring security is immediately restored. A deadlocking rim bolt provides enhanced resistance to forced entry without the use of a deadbolt.

Key Features

• Function: Exit rim trim with touchscreen keypad and mechanical cylinder override
• Operation: Bolt retracts by interior pushbar and exterior lever when unlocked; outside lever remains locked when secured
• Security: Deadlocking rim bolt with cylinder override; key unlocks outside lever only while inserted and rotated
• Safety: Interior pushbar provides immediate, code-free egress at all times
• Construction: Heavy-duty exit trim designed for reliable performance on high-traffic commercial doors
• Accessibility: Touchscreen keypad supports tactile use and ADA-compliant applications
• Warranty: 3-year limited mechanical & electrical; 1-year limited finish
• Applications: Exit doors, stairwells, and delivery doors requiring keypad access with mechanical key backup
• Power Source: Battery powered with 9V battery backup to prevent lockout

Benefits

• Provides ANSI/BHMA Series 1000, Operational Grade 1 performance for commercial exit doors
• Delivers convenient, easy-to-use touchscreen access while maintaining life-safety egress
• Mechanical key override ensures access during emergencies or system downtime
• Deadlocking rim bolt enhances resistance to forced entry
• Reduces key management and long-term maintenance costs
• Retrofits onto many existing pushpad exit devices without additional hardware

Specifications

• ANSI/BHMA Series: Series 1000
• Cylinder Format: Conventional
• Handing: Field Reversible
• Warranty: 3-year limited warranty on mechanical and electrical components; 1-year finish warranty

Certifications

• ANSI/BHMA A156.13, Series 1000, Operational Grade 1
