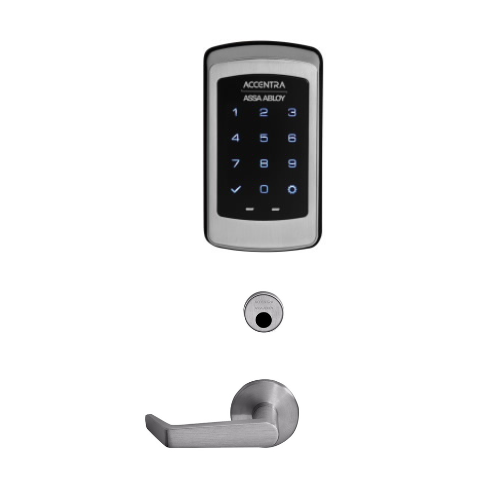

Accentra Nextouch NTM648-NR Touchscreen Non-Cylinder – with Deadbolt
The Accentra Nextouch NTM648-NR is a Grade 1 mortise lock for commercial doors that provides keyless touchscreen access and a thumbturn deadbolt. Therefore, it offers strong security while supporting quick anti-panic exit.
First, the touchscreen keypad controls all entry. Additionally, the thumbturn-operated deadbolt and deadlocking latchbolt enhance inside security. Specifically, the anti-panic function allows the inside lever to retract both the deadbolt and latchbolt instantly, even when the outside lever is locked. Furthermore, the robust mortise construction ensures durability and reliable performance on high-traffic doors.
Moreover, this lock eliminates the need for keys or cylinder hardware, which reduces maintenance. Consequently, it simplifies access control while maintaining high security.
Key Features
- Function: Mortise lock with capacitive touchscreen keypad and thumbturn-operated deadbolt
- Operation: Latchbolt retracts by lever on either side, except when outside lever is locked; deadbolt operated by thumbturn inside
- Security: Deadbolt without cylinder override; projecting deadbolt automatically locks outside lever
- Safety: Anti-panic operation allows inside lever to retract latchbolt and deadbolt for emergency exit
- Construction: Strong mortise design for long-lasting commercial use
- Accessibility: Inside lever allows exit while outside lever stays locked
- Warranty: 3-year limited mechanical & electrical; 1-year limited finish
- Applications: Commercial doors requiring high security, anti-panic egress, and modern touchscreen keyless access
- Power Source: 4 AA alkaline batteries (included); optional 9VDC hardwire input with keypad battery backup
Benefits
- Provides ANSI/BHMA Grade 1 security for commercial doors.
- Features a sleek, modern, and highly responsive touchscreen
- Anti-panic operation ensures fast and safe exit during emergencies
- Deadbolt and deadlocking latchbolt enhance door security
- Simplifies access control with a fully keyless design (no cylinder)
- Durable mortise construction supports daily use on high-traffic doors
Specifications
- ANSI/BHMA Code: A156.13
- ANSI/BHMA Series: Series 1000
- Backset (Standard): 2-3/4″
- Door Thickness: 1-3/4″ min to 2-1/4″ max
- Latchbolt Throw: 3/4″
- Handing: Field reversible
- UL/ULC Listed: Yes
- Finishes & Styles: Compatible with ACCENTRA® Reflections® decorative levers
- Configuration Requirement: Must be configured by a certified ACCENTRA® integrator
Certifications
- ANSI/BHMA A156.13, Series 1000, Grade 1
- UL Listed
- ULC Listed
- Windstorm Certified (refer to local codes)
