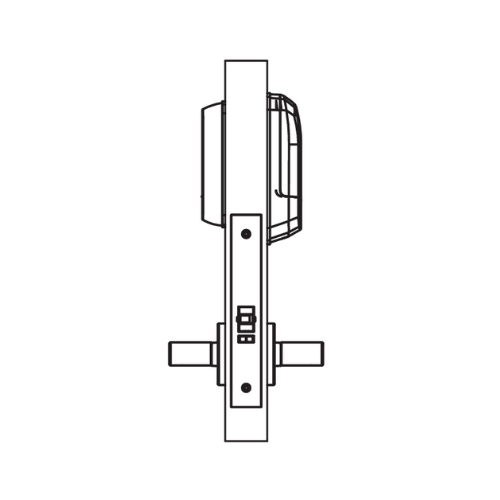

Accentra Nextouch NTM633-NR Pushbutton Non-Cylinder

The Accentra Nextouch NTM633-NR is a keyless pushbutton mortise lock built for commercial use where a mechanical key override is not required.

First, the lock uses a deadlocking latchbolt to help resist forced entry. The lever retracts the latchbolt from either side of the door. However, when the outside lever locks, the inside lever continues to operate, ensuring controlled entry. As a result, users maintain security while still allowing smooth and reliable exit.

Next, because this model includes no cylinder override and no deadbolt, users do not need keys or thumbturns. Therefore, facilities can reduce maintenance and simplify daily operation. In addition, the strong mortise construction delivers durability and stability. Consequently, the lock performs well on high-traffic commercial doors.

Key Features

• Function: Sectional mortise lock with pushbutton keypad
• Operation: Latchbolt retracts by lever on either side, except when outside lever is locked
• Construction: Strong mortise design for long-lasting use
• Accessibility: Inside lever allows exit while outside lever stays locked
• Warranty: 3-year limited mechanical & electrical; 1-year limited finish
• Applications: Commercial doors that do not require a mechanical key override
• Power Source: 4 AA alkaline batteries (included); optional 9VDC hardwire input with keypad battery backup

Benefits

• Provides ANSI/BHMA Grade 1 security for commercial doors

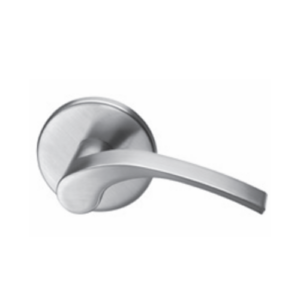

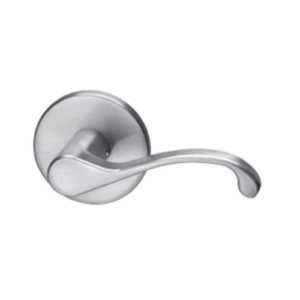

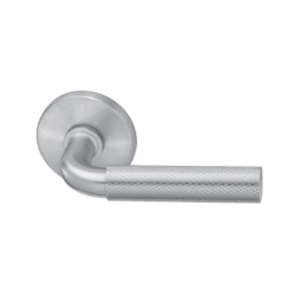

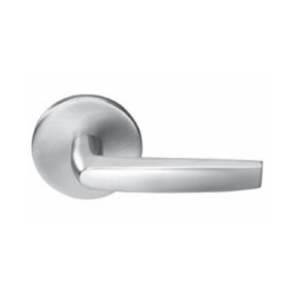

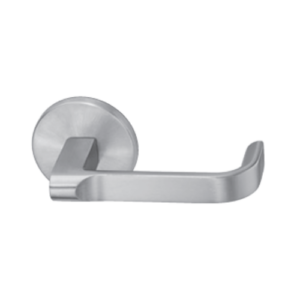

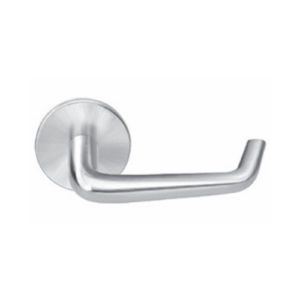

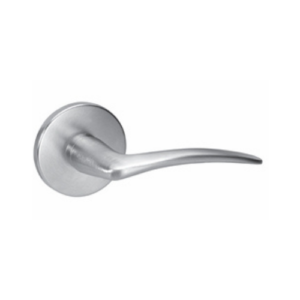

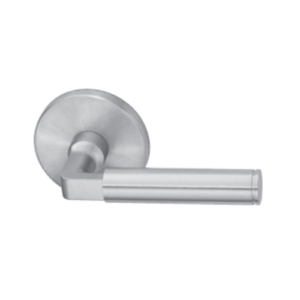

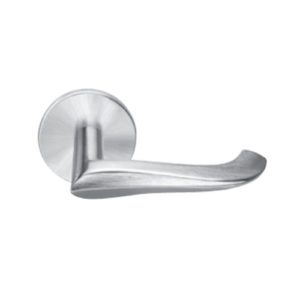

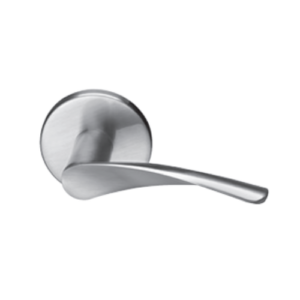

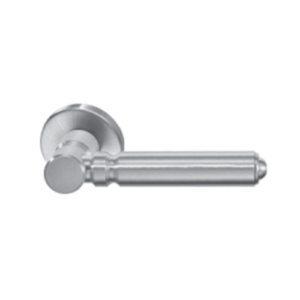

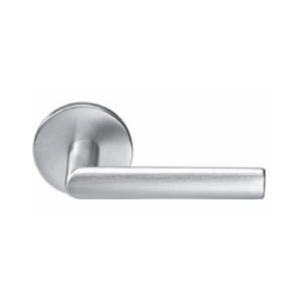

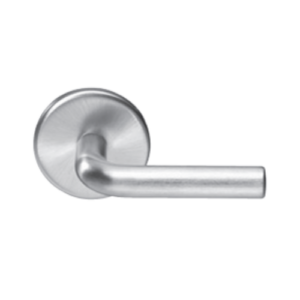

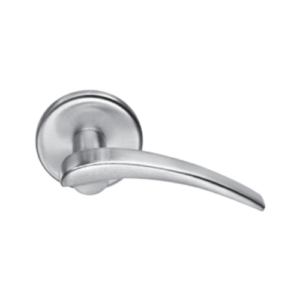

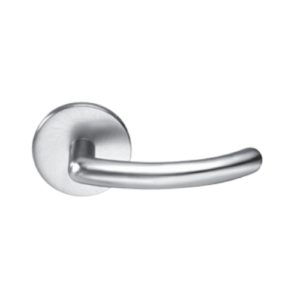

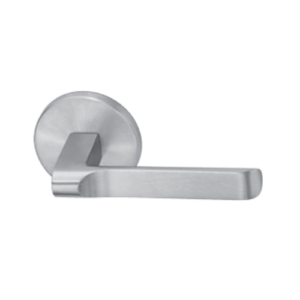

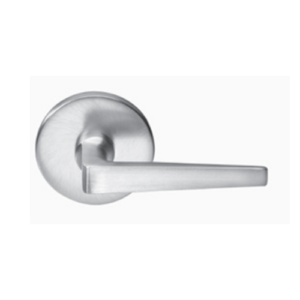

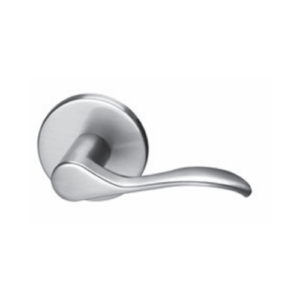

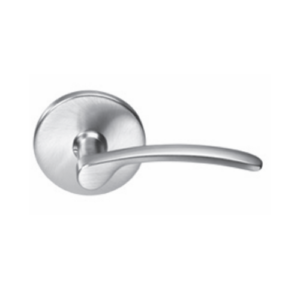

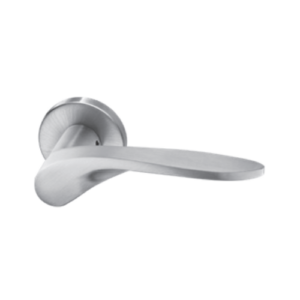

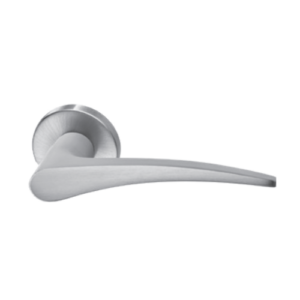

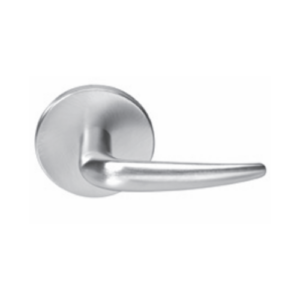

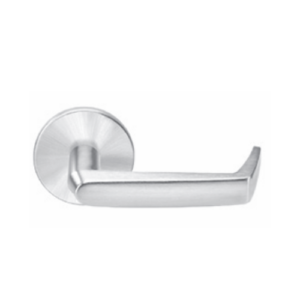

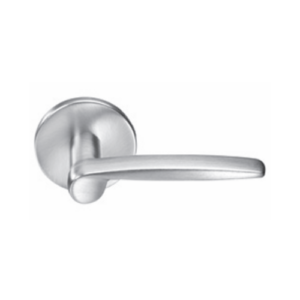

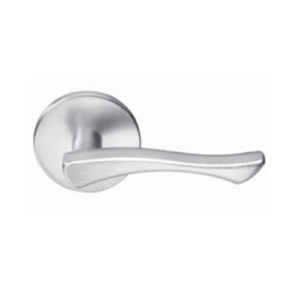

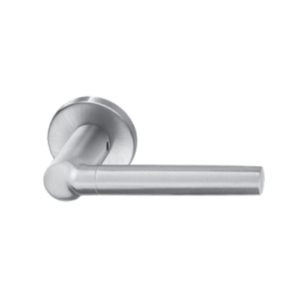

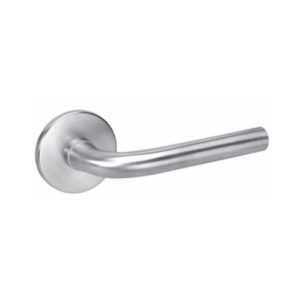

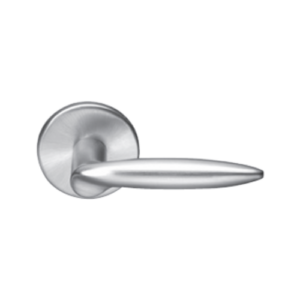

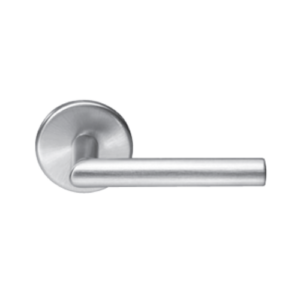

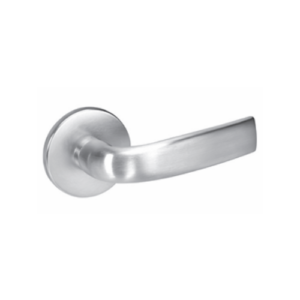

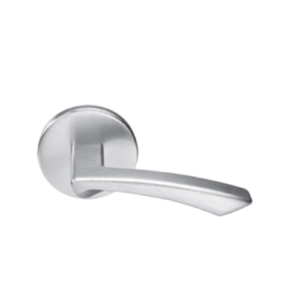

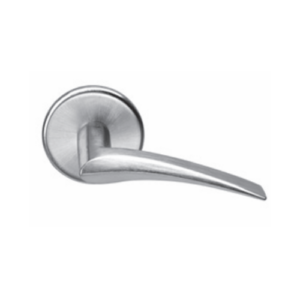

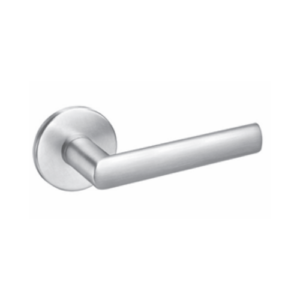

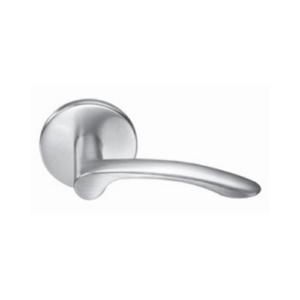

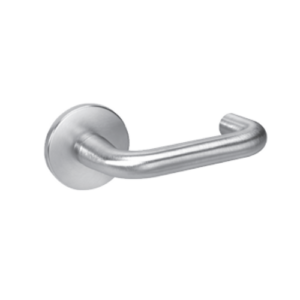

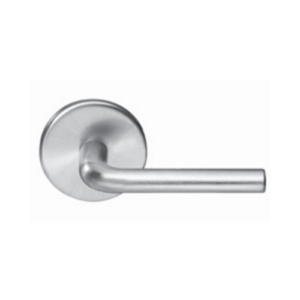

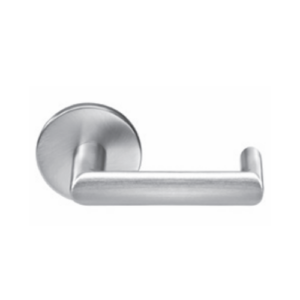

• Works easily with ACCENTRA® Reflections® decorative levers
• Ideal for doors that do not require keys or cylinder override
• Simplifies access control with a fully keyless design
• Deadlocking latchbolt enhances door security
• Durable mortise construction supports daily commercial use
• Reduces installation complexity and ongoing maintenance

Specifications

• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset (Standard): 2-3/4″
• Door Thickness: 1-3/4″ min to 2-1/4″ max
• Latchbolt Throw: 3/4″
• Handing: Field reversible
• UL/ULC Listed: Yes
• Finishes & Styles: Compatible with ACCENTRA® Reflections® decorative levers
• Configuration Requirement: Must be configured by a certified ACCENTRA® integrator

Certifications

• ANSI/BHMA A156.13, Series 1000, Grade 1
• UL Listed
• ULC Listed
• Windstorm Certified (refer to local codes)
