Description

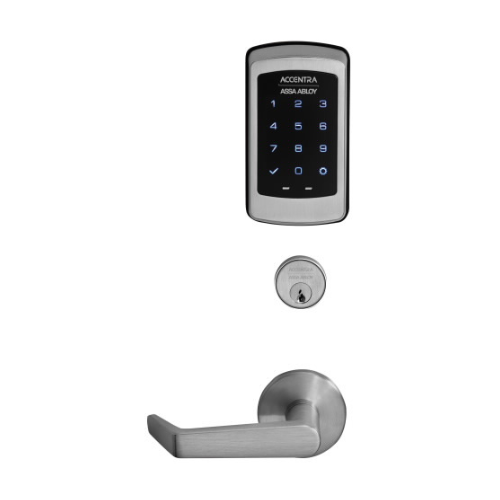

Accentra Nextouch NTM628-NR Touchscreen w/ Deadbolt

The Accentra Nextouch NTM628-NR Touchscreen Mortise Lock with Deadbolt delivers Grade 1 commercial security using a dependable touchscreen and cylinder override. At the same time, this sectional mortise lock features a deadlocking latchbolt and a key-operated deadbolt for added protection. In addition, the anti-panic inside lever allows quick exit, making it safe for everyday use. As a result, it is well suited for high-traffic commercial doors.

Furthermore, the lock is field reversible, UL/ULC listed, and compatible with ACCENTRA® Reflections® decorative levers and finishes, allowing both flexible installation and a clean, professional look.

Key Features

• Function: Sectional mortise lock with touchscreen keypad and deadbolt
• Operation: Latchbolt retracts by lever on either side unless the outside lever is locked; deadbolt operates by key outside and thumbturn inside
• Construction: Heavy-duty mortise design for long-lasting commercial use
• Accessibility: Anti-panic feature retracts latchbolt and deadbolt from the inside while the outside lever stays locked
• Warranty: 3-year limited mechanical and electrical; 1-year limited finish
• Applications: Ideal for commercial doors needing secure and controlled access
• Power Source: Powered by 4 AA alkaline batteries (included); also supports optional 9VDC hardwire input with keypad battery backup

Benefits

• Provides ANSI/BHMA Grade 1 security for commercial applications
• Easy to integrate with ASSA ABLOY ACCENTRA® Reflections® decorative levers
• Field reversible handing allows flexible installation
• Anti-panic and automatic lever locking enhance safety and security

Specifications

• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset (Standard): 2-3/4″
• Door Thickness: 1-3/4″ min to 2-1/4″ max
• Cylinder Format: Large Format, Small Format, Conventional
• Latchbolt Throw: 3/4″
• Handing: Field reversible
• UL/ULC Listed: Yes
• Deadbolt Operation: Key outside, thumbturn inside
• Anti-Panic Operation: Yes
• Finishes & Styles: Compatible with ACCENTRA® Reflections® decorative levers
• Configuration Requirement: Must be configured by a certified ACCENTRA® integrator

Certifications

• ANSI/BHMA A156.13, Series 1000, Grade 1
• UL Listed
• ULC Listed
• Windstorm Certified (refer to local codes)
