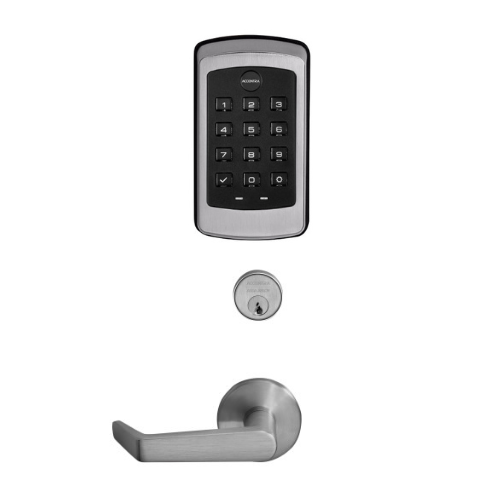

Accentra Nextouch NTM618-NR Pushbutton w/ Deadbolt

The Accentra Nextouch NTM618-NR Pushbutton Mortise Lock delivers Grade 1 commercial security with a pushbutton keypad, a solid deadbolt, and a key override with an inside thumbturn. As a result, it is an ideal solution for busy commercial doors that require reliable, secure access every day.

First, the lock includes a deadlocking latchbolt that helps prevent forced entry. The lever retracts the latchbolt from either side. However, when the outside lever is locked, only the inside lever will operate. In addition, the deadbolt functions by key on the outside and thumbturn on the inside. When the deadbolt is fully projected, it automatically locks the outside lever to provide extra protection.

Next, the inside lever supports anti-panic operation. With one smooth motion, it retracts both the latchbolt and the deadbolt, while the outside lever remains locked. Therefore, occupants can exit quickly and safely during an emergency. Moreover, the lock is field reversible, UL and ULC listed, and compatible with ACCENTRA® Reflections® decorative levers and finishes. Because of this, installation is simpler, and the door achieves a clean, professional appearance.

Key Features

• Function: Sectional mortise lock with pushbutton keypad and deadbolt
• Operation: Latchbolt retracts by lever on either side; deadbolt operated by key outside, thumbturn inside
• Construction: Strong mortise design for long-lasting use
• Accessibility: Anti-panic lever retracts latchbolt and deadbolt from inside while outside lever stays locked
• Warranty: 3-year limited mechanical & electrical; 1-year limited finish
• Applications: Commercial doors needing pushbutton access with deadbolt
• Power Source: 4 AA alkaline batteries (included); optional 9VDC hardwire input with keypad battery backup

Benefits

• Provides ANSI/BHMA Grade 1 security for commercial doors
• Works easily with ACCENTRA® Reflections® decorative levers
• Field-reversible handing lets you install it quickly
• Anti-panic and deadlocking latchbolt ensure safety and reliable operation

Specifications

• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset (Standard): 2-3/4″
• Door Thickness: 1-3/4″ min to 2-1/4″ max
• Cylinder Format: Large Format, Small Format, Conventional
• Latchbolt Throw: 3/4″
• Handing: Field reversible
• UL/ULC Listed: Yes
• Deadbolt Operation: Key outside, thumbturn inside
• Anti-Panic Operation: Yes
• Finishes & Styles: Compatible with ACCENTRA® Reflections® decorative levers
• Configuration Requirement: Must be configured by a certified ACCENTRA® integrator

Certifications

• ANSI/BHMA A156.13, Series 1000, Grade 1
• UL Listed
• ULC Listed
• Windstorm Certified (refer to local codes)
