Description

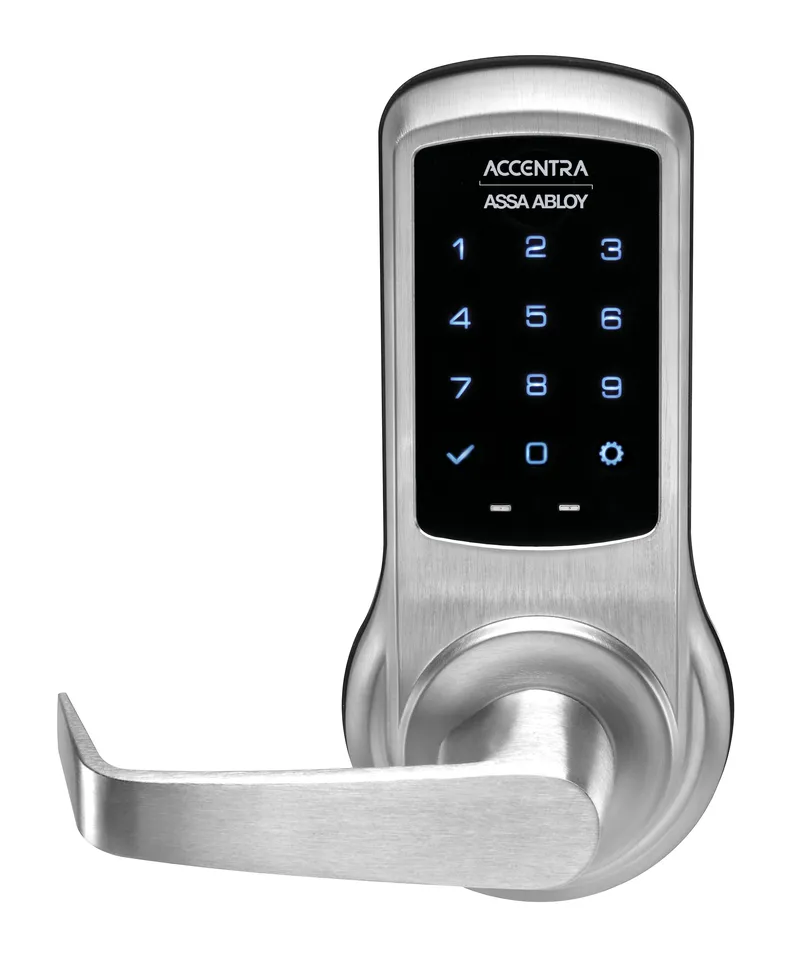

Accentra Nextouch NTB643-NR Touchscreen No Cylindrical

The Accentra Nextouch NTB643-NR Bored Lock w/Capacitive Touchscreen – Without Cylinder Override delivers modern, fully keyless access control for doors that do not require a mechanical key override. Designed for commercial environments, this touchscreen lock combines sleek aesthetics with dependable performance.

Access is granted by entering a valid PIN code on the capacitive touchscreen or by operating the inside lever, which always remains active for safe egress. A deadlocking latchbolt enhances protection against forced entry, making this bored cylindrical lock ideal for controlled-access interior applications.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Product Overview

This model is ideal for applications where mechanical key access is not required. The latchbolt retracts using a valid PIN code at the touchscreen or by turning the inside lever. Its bored cylindrical design ensures smooth, reliable operation in high-traffic commercial settings.

Features

• Modular design allows future upgrades to Data-on-Card technology
• Pushbutton keypad option for tactile environments and ADA compliance
• Privacy mode enabled with a single button press
• Supports up to 500 user codes in keypad-only operation
• 9V battery backup prevents lockout if batteries fail
• Available in four finishes.
• Non-handed and field reversible
• UL and ULC listed
• Configuration by an ASSA ABLOY Accentra™ Certified Integrator is required
• Select standalone versions available with CLH-CLE Center lock housing and keeper

Benefits

• Ideal for interior doors where mechanical keys are unnecessary
• Streamlines access management with intuitive touchscreen operation
• Enhances safety with an always-active inside lever and deadlocking latchbolt
• Supports high-traffic commercial environments with reliable performance
• Modular design allows future technology upgrades, reducing long-term costs

Specifications

• ANSI/BHMA Series: 4000
• Backset Depth: 2-3/4″
• Cylinder Format: Large Format, Small Format
• Handing: Non-handed, Field Reversible
• Latchbolt Throw: 1/2″
• Door Thickness: 1-3/8″ minimum to 1-3/4″ maximum
• Listings: UL Listed, ULC Listed
• Warranty: 3-year limited warranty on mechanical and electrical components; 1-year finish warranty

Certifications

• ISO 9001 Certified Manufacturing
