Description

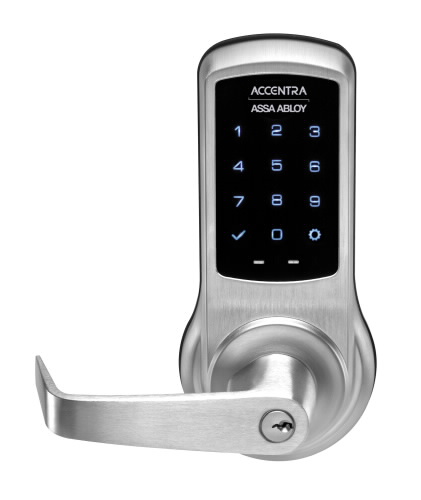

Accentra Nextouch NTB623-NR Touchscreen Cylindrical

The Accentra Nextouch NTB623-NR Bored Lock w/Capacitive Touchscreen – Cylinder Override combines modern touchscreen access with the reliability of a mechanical cylinder override, making it ideal for commercial doors that require both advanced security and dependable backup entry.

Access is granted by entering a valid PIN on the capacitive touchscreen, using the mechanical key, or by operating the inside lever, which always remains active. A deadlocking latchbolt enhances resistance to forced entry, while the sleek touchscreen design delivers a clean, contemporary appearance suited for professional environments.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever

Product Overview

This bored cylindrical lock is designed for applications where mechanical key override is required. The capacitive touchscreen provides smooth, responsive input, while maintaining compliance and ease of use for high-traffic commercial settings.

Features

• Modular design allows future upgrades to Data-on-Card technology
• Pushbutton keypad option for tactile environments and ADA compliance
• Privacy mode enabled with a single button press
• Supports up to 500 user codes in keypad-only operation
• 9V battery backup prevents lockout if batteries fail
• Available in four finishes.
• Non-handed and field reversible
• UL and ULC listed
• Configuration by an ASSA ABLOY Accentra™ Certified Integrator is required
• Select standalone versions available with CLH-CLE Center lock housing and keeper

Benefits

• Delivers a modern, easy-to-use access control solution for commercial facilities
• Touchscreen interface offers a clean appearance and intuitive operation
• Mechanical key override ensures continued access during emergencies or power loss
• Modular design allows for future technology upgrades
• Helps reduce long-term maintenance and operational costs

Specifications

• ANSI/BHMA Series: 4000
• Backset Depth: 2-3/4″
• Cylinder Format: Large Format, Small Format
• Handing: Non-handed, Field Reversible
• Latchbolt Throw: 1/2″
• Door Thickness: 1-3/8″ minimum to 1-3/4″ maximum
• Listings: UL Listed, ULC Listed
• Warranty: 3-year limited warranty on mechanical and electrical components; 1-year finish warranty

Certifications

• ISO 9001 Certified Manufacturing
