Description

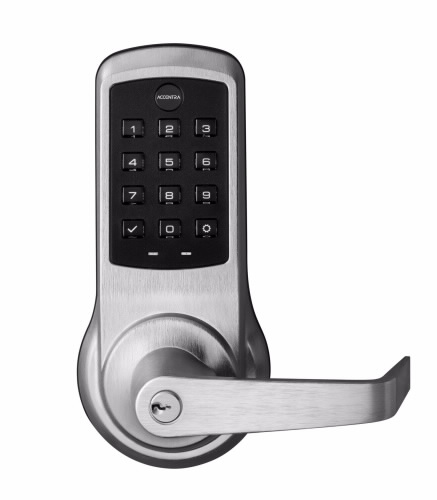

Accentra Nextouch NTB613-NR Pushbutton Cylindrical

The Accentra Nextouch NTB613-NR Bored Lock w/Pushbutton Keypad – Cylinder Override delivers reliable, keyless access control with the added security of a mechanical key override. Designed for commercial environments, this non-handed cylindrical lock combines durability, flexibility, and user-friendly operation in a sleek, modern form.

With pushbutton keypad entry, access is granted using a valid PIN code, while the mechanical cylinder override ensures uninterrupted access when required. The inside lever always remains active, and a deadlocking latchbolt enhances resistance against forced entry.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series
  • TB – Hudson Lever, UB – Hudson Lever

Product Overview

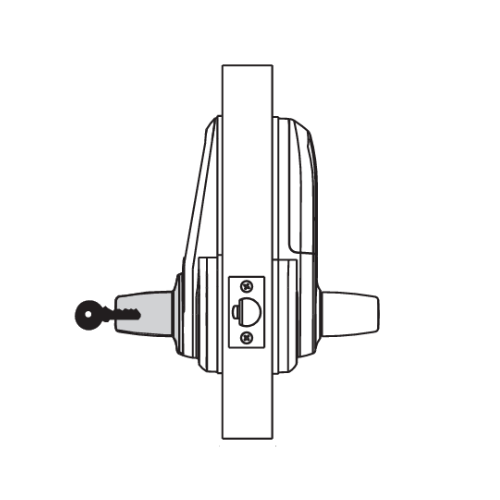

This model is ideal for doors that require mechanical key override capability. The latchbolt retracts by entering a valid PIN on the outside keypad, using the mechanical key, or by operating the inside lever. Privacy mode can be enabled with a simple button push, providing added control for occupants.

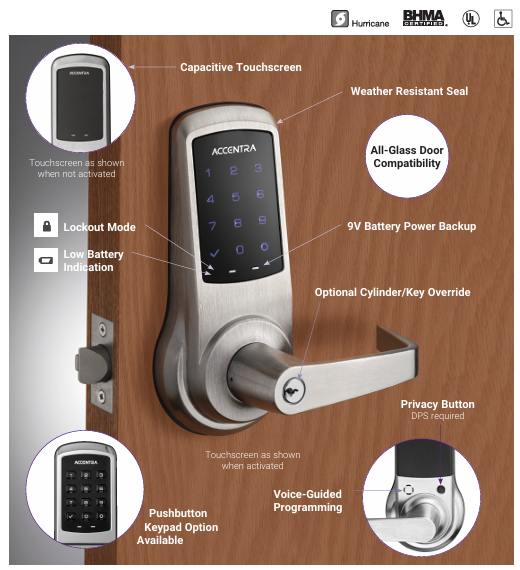

Features

• Modular design allows future upgrades to Data-on-Card technology
• Pushbutton keypad option for tactile environments and ADA compliance
• Privacy mode enabled with a single button press
• Supports up to 500 user codes in keypad-only operation
• 9V battery backup prevents lockout if batteries fail
• Available in four finishes.
• Non-handed and field reversible
• UL and ULC listed
• Configuration by an ASSA ABLOY Accentra™ Certified Integrator is required
• Select standalone versions available with CLH-CLE Center lock housing and keeper

Benefits

• Provides a comprehensive, easy-to-use access control solution
• Versatile design supports future technology upgrades
• Helps reduce long-term investment and maintenance costs
• Suitable for commercial facilities prioritizing security and flexibility
• Windstorm certified (refer to local code requirements)

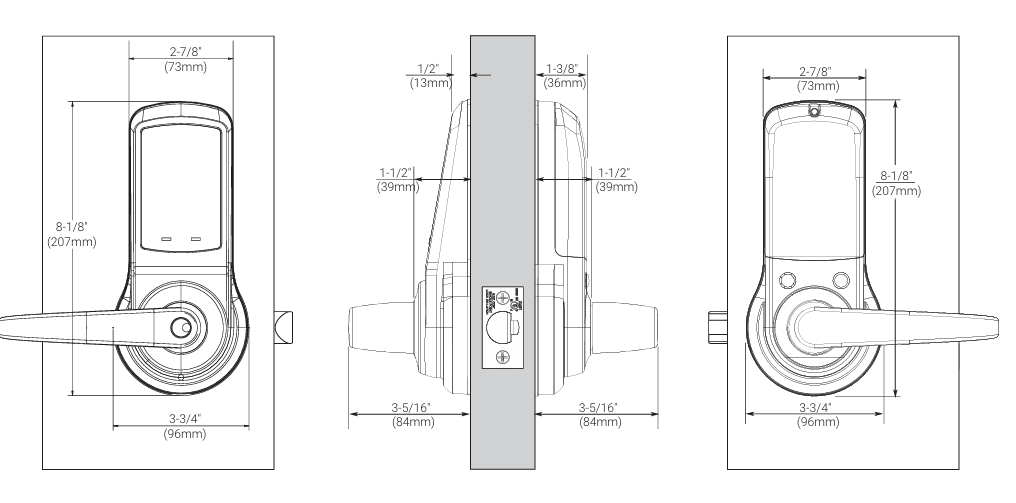

Specifications

• ANSI/BHMA Series: 4000
• Backset Depth: 2-3/4″
• Cylinder Format: Large Format, Small Format
• Handing: Non-handed, Field Reversible
• Latchbolt Throw: 1/2″
• Door Thickness: 1-3/8″ minimum to 1-3/4″ maximum
• Listings: UL Listed, ULC Listed
• Warranty: 3-year limited warranty on mechanical and electrical components; 1-year finish warranty

Certifications

• ISO 9001 Certified Manufacturing
