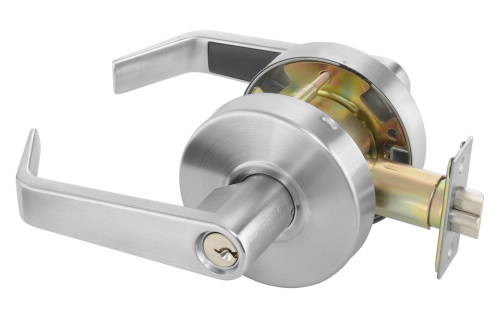

Accentra AU-4607LN Entry Door Lever | ANSI F109 Grade 2 Commercial Lockset for Entrance & Office Doors
ANSI F109 Grade 2 Commercial Lockset for Entrance & Office Doors
The Accentra AU-4607LN Entry Lever is designed to provide secure, reliable access control for entrance, office, and general-use doors in both commercial and residential settings. Built to ANSI/BHMA Grade 2 standards, this lockset delivers dependable performance, durability, and ease of operation for high-traffic environments.
Equipped with a deadlocking latchbolt, the 4607LN enhances security by resisting tampering and forced entry. The inside lever remains fully active at all times, allowing immediate egress, while the outside lever can be locked using the convenient interior push button.
A push-and-turn feature allows the outside lever to remain locked until manually released, making it ideal for situations requiring extended or continuous security.
Lever Options
- Standard Series – AU – Augusta
Available Finish:
- AU-4607LN x 626 (Satin Chrome)
- AU-4607LN x BSP (Black Suede Powder Coat)
- AU-4607LN x 605 (Bright Brass)
- AU-4607LN x 606 (Satin Brass)
- AU-4607LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-4607LN x 625 (Bright Chrome)
Key Features
- Function: Entrance / Office – ANSI Function No. F109
- Operation:
- Inside lever always active
- Latchbolt operated by key on the outside or by rotating the inside lever
- Outside lever locks when the inside turn button is pushed
- Locking Options:
- Push-button locking from the inside
- Push-and-turn feature retains the outside lever in a locked position
- Lock automatically releases when inside lever is turned or key is rotated (unless retained)
- Latchbolt: Deadlocking design for added security
- Applications: Homes, offices, and general entrance doors
- Construction: Commercial Grade 2 reliability
- Handing: Field reversible for easy installation
- Available Options: 5 trims and 6 finishes for design flexibility
- ADA Compliant: Accessible lever design for universal usability
- UL/cUL Fire Rated: Up to 3 hours for added safety
- Windstorm Certified: Meets stringent local building codes
- Warranty: Backed by a 3-year mechanical warranty
Benefits
- Flexible locking options for daily or long-term security needs
- Reliable operation with automatic lock release when needed
- Durable construction suited for both commercial and residential use
- Easy to install and ADA-friendly lever operation
Specifications
- ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
- Backset Depth (Standard): 2-3/4″
- Backset Range: 2-3/8″ to 2-3/4″
- Latchbolt Throw: 1/2″
- Door Thickness (Standard): 1-3/4″
- Door Thickness Range: 1-3/8″ to 1-3/4″
- Cylinder Format: Conventional, Small Format
- Cylinder Pins: 6 pin
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- Handing: Non-handed (Field Reversible)
- UL/ULC Listed: Yes
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E1886 / E1996 / E330 Certified
- Florida Building Code Approved (FL# 3063)
- UL/cUL Fire Rated – Up to 3 Hours
- NFPA 80 Compliant
- TAS 201, TAS 202, TAS 203 Certified
- ICC A117.1 & ADA Compliant
