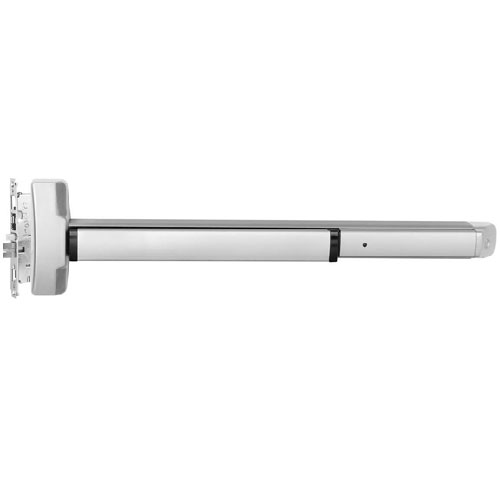

Accentra 6130ED Mortise Lock Exit Device
The Accentra 6130ED Mortise Lock Exit Device provides safe and secure egress where added door control is required. From the start, it combines an exit device with the Accentra® 8700 Series mortise lock, which makes it well suited for life-safety openings that also demand strength.
In addition, this exit-only device works on single doors or the active leaf of paired doors. Because the mortise lock is modified for exit use only, it allows fast egress while maintaining security. At the same time, the device fits both wide stile and flush doors. As a result, it works well in many commercial buildings.
Key Features:
- Integrated exit device with Accentra® 8700 Series mortise lock
- Exit only configuration (no outside trim)
- Two-piece mechanical deadlocking latchbolt with 3/4″ throw
- Stainless steel latchbolt with anti-friction insert for smooth operation
- Auxiliary deadlocking latch for added security
- Handed device; however, field reversible for easier installation
- Optional double cylinder function available
Applications:
- Single swing doors
- Active leaf of paired doors with removable mullions
- Wide stile aluminum, metal, wood, or composite doors
Specifications:
- Rail sizes: 24″, 30″–36″, 36″–42″, 42″–48″ (custom sizes available)
- Door thickness: 1-3/4″ standard; optional 2″ and 2-1/4″
- Minimum stile width: 4-1/2″ (114mm)
- Projection: 3-1/4″ active; 2-1/2″ dogged
- Latchbolt: Two-piece mechanical 3/4″ deadlocking stainless steel latchbolt
- Strikes: 798 curved lip standard; 612/712 or 618/718 optional
- Fasteners: Machine or wood screws for panic use; sex nuts and bolts for fire-rated applications
- Handing: Handed; specify handing when ordering
Standards & Performance:
- ANSI/BHMA A156.3 Type 3, Grade 1
Dogging
- Hex key dogging standard on panic devices
- Optional cylinder dogging (-5)
Options:
- Double cylinder function (-2), specify handing
- Shim kit #623SK
Warranty:
- 10-year limited warranty.
Exit Only (trim sold separately).
