Description

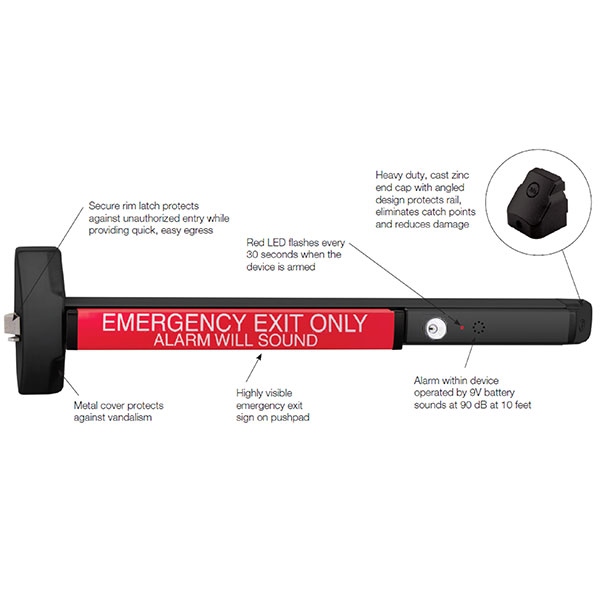

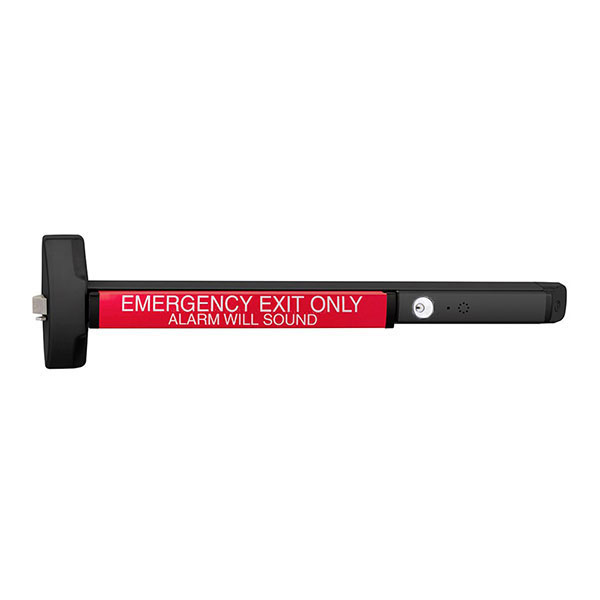

Accentra 6100-A-ALR Alarmed Rim Exit Device

The Accentra 6100-A-ALR Alarmed Rim Exit Device is a reliable solution for emergency exits where loss prevention is a priority. Designed specifically for 36″ doors, this alarmed rim device combines ANSI/BHMA Grade 1 performance with a built-in, battery-powered alarm to help reduce employee and customer theft in high-traffic environments.

In addition, the device features a durable all-metal aluminum rail construction and installs quickly using only five mounting screws. The alarm is armed and disarmed by key, while a loud 90-decibel alert sounds when the pushpad is pressed, clearly signaling unauthorized use. As a result, this exit device is ideal for retail, hospitality, and commercial spaces that require both security and code-compliant egress.

Key Features:

• Built-in alarmed rim exit device for loss prevention
• Loud 90 dB alarm sounds when pushpad is depressed
• Powered by one 9-volt battery (included)
• Arm and disarm using a mortise cylinder (sold separately)
• Red LED indicator flashes every 30 seconds when armed
• Tamper-resistant design triggers alarm if interference occurs
• Warning message on pushpad: “EMERGENCY EXIT – ALARM WILL SOUND”
• Exit Only (outside trim sold separately)

Alarm Operation

• Standard Mode: Alarm sounds and automatically resets after 5 minutes
• Continuous Mode: Alarm sounds continuously until manually reset by key
• Low audible chirp confirms alarm activation

Certifications & Standards

• ANSI/BHMA Grade 1
• UL/cUL Listed for panic hardware

Specifications

• Device length: 36″ (fits 35″–36″ doors; cannot be cut shorter)
• Power: One 9-volt battery
• Alarm volume: 90 dB @ 10 feet
• Cylinder: 1-1/8″ straight cam mortise cylinder required (sold separately)
• Finish: Black (BSP)
• Construction: All metal, no plastic parts

Compatibility

• Works with a full range of Accentra/Yale exit device trims
• Easily installed or retrofitted onto existing door preps

Ideal Applications

• Retail stores
• Shopping malls and plazas
• Grocery and convenience stores
• Hotels and hospitality venues

Warranty

• 10-year limited warranty
