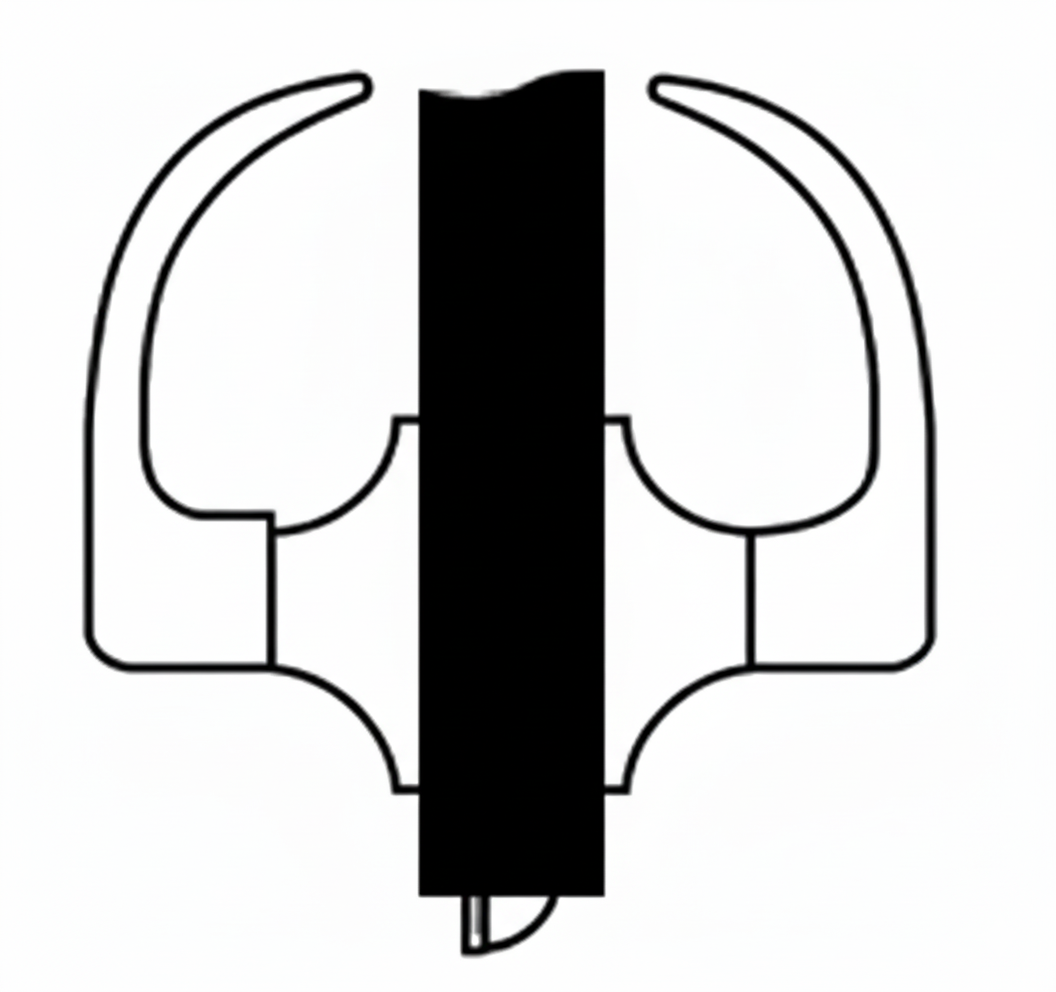

Accentra 5480LN Fail Safe Electrified Lever

The Accentra 5480LN Fail Safe Electrified Lever offers secure, power-controlled access for commercial doors. It uses a deadlocking latchbolt that works from either lever; however, power locks the outside lever for added control. When power is off, the outside lever unlocks to allow quick exit, and the inside lever always stays free. In addition, the free-wheeling mechanism and the continuous-duty solenoid make installation simple in standard cylindrical door setups.

Available Options

• No Cylinder Override (Complete Lockset)
• Lockbodies (Lockbody-Only Version)

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Fail Safe Electrified Lever
• Operation:
  • Deadlocking latchbolt operates by lever from either side
  • Power locks the outside lever; power off unlocks it for safe egress
  • Inside lever remains free for immediate exit
  • Free-wheeling lever mechanism prevents forced rotation
  • Self-contained, continuous-duty integral solenoid allows installation in standard cylindrical prep
  • Available in Fail Safe or Fail Secure configurations
  • Supports 12V or 24V DC
  • Mechanical cylinder override for manual control during power loss
• Construction: Heavy-duty Grade 1 performance for long-term durability
• Connectivity: 8-position ElectroLynx plug connector for simplified wiring
• Compatibility: Fits all 5400LN cylinder options; optional rectifier for AC
• Warranty: 2-year limited warranty
• Applications: Office doors, commercial buildings, secure areas, and any openings needing power-controlled locking with safe exit

Benefits

• Offers steady, power-controlled security in busy areas
• Handles frequent use with dependable performance
• Free-wheeling lever helps stop tampering
• Installs easily in standard cylindrical doors
• Provides flexible choices for voltage and locking style
• Carries Grade 1 and UL listings for added confidence

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
