Description

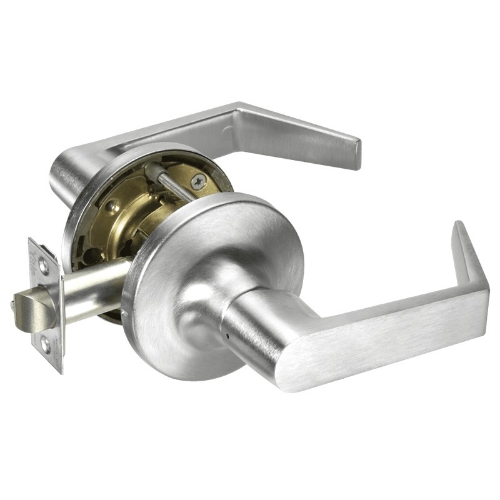

Accentra AU-5409LN Exit Latch Lever (Non-Key)

The Accentra AU-5409LN Exit Latch Lever is a heavy-duty non-keyed exit hardware solution designed for doors that require secure egress while preventing outside entry. Additionally, it features a deadlocking latchbolt system with an always-locked outer lever, ensuring controlled access while still keeping full and quick inside exit.

Moreover, the inside lever stays active at all times, so users can exit safely and without delay. In addition, when locked, both levers become free-wheeling, which helps block forced entry, reduce tampering, and limit damage in busy or secure spaces.

Lever Options

• Standard Series: AU – Augusta

Key Features

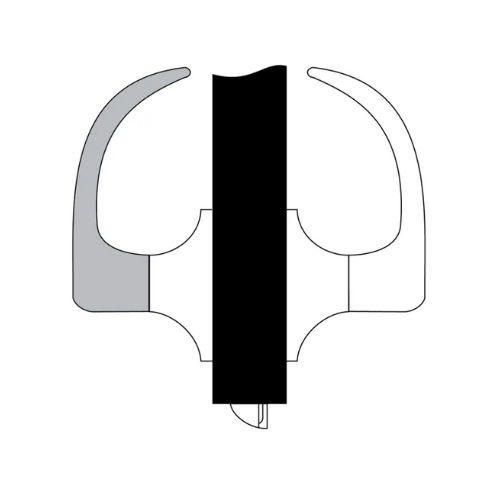

• Function: Exit Latch (Non-Keyed) – F89
• Operation:
  • Outside lever always locked to restrict entry
  • Inside lever always active for safe exit
  • Deadlocking latchbolt for enhanced security
  • Free-wheeling levers in locked position for added protection
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Exit-only doors, emergency exits, and restricted-entry areas

Benefits

• Prevents unauthorized entry while allowing safe and immediate exit
• Deadlocking latchbolt improves resistance against forced entry
• Free-wheeling lever design helps deter vandalism and abuse
• Rugged construction ensures long-term durability in high-traffic environments
• Adjustable rose allows easy installation on various door thicknesses
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Ideal for commercial facilities, back-of-house exits, and secured areas

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
