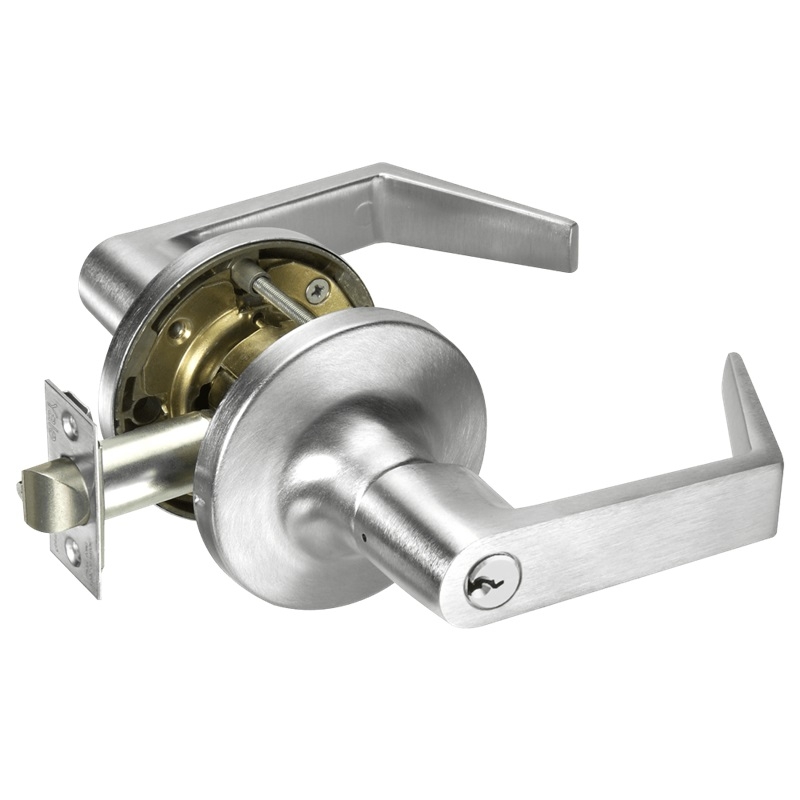

Accentra 5406LN Service Station Lever

The Accentra 5406LN Service Station Lever delivers heavy-duty keyed performance for service station, office, and commercial doors that require dependable access control. It uses a deadlocking latchbolt, and either lever operates the latch unless you engage the inside pushbutton to lock the outside lever. The latch releases automatically when you turn the inside lever, close the door, or rotate the key in the outside lever. The inside lever always allows safe and immediate egress. In the locked position, the free-wheeling lever design increases security and resists forced entry.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

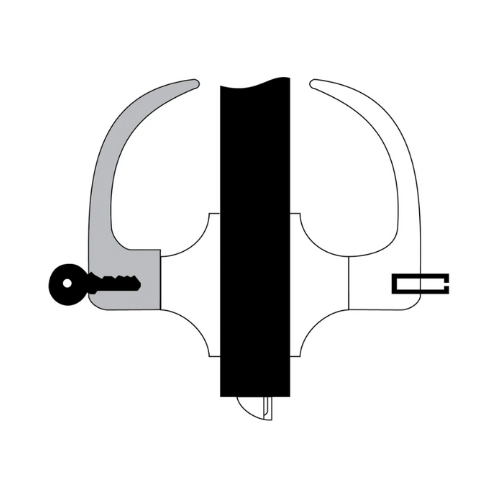

• Function: Service Station / F92
• Operation:
  • Deadlocking latchbolt for dependable security
  • Both levers operate the latchbolt for smooth operation
  • Inside pushbutton locks outside lever
  • Automatic release of the outside lever when:
    •  Inside lever is turned
    • Door is closed
    • Key is rotated in the outside lever
  • Slotted pushbutton can be turned 90° clockwise to retain outside lever in locked position
  • Free-wheeling lever design in locked mode for vandal resistance
  • Inside lever always active for immediate egress
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Service stations, commercial facilities, utility areas, and doors requiring controlled locking and automatic release

Benefits

• Provides reliable control of outside lever access in high-traffic environments
• Automatic release ensures convenience and prevents accidental lockouts
• Constructed for long-lasting performance in demanding commercial settings
• Easy installation with flexible door compatibility

Specifications

• Brand: Accentra (Formerly Yale)
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
