Description

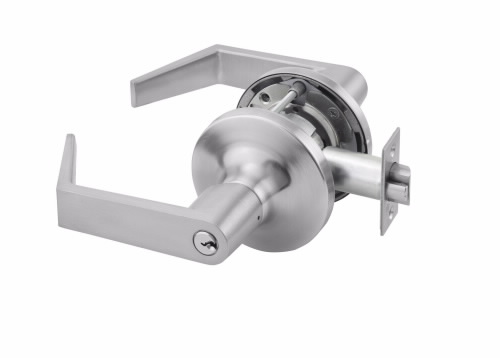

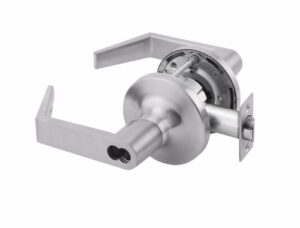

Accentra AU-5405LN Storeroom Lever | Augusta Lever
The Accentra AU-5405LN Storeroom Lever features a robust Augusta-style lever designed for storerooms, utility rooms, and exit doors requiring secure, controlled access. Its heavy-duty construction ensures durability, while the deadlocking latchbolt keeps the outside lever locked and operable only with a key, and the inside lever always allows safe egress. In the locked position, the free-wheeling lever handles prevent forced rotation, protecting against vandalism and misuse.
Lever Options
- Standard Series – AU – Augusta
Available Lever Trims:
- AU-5405LN x 626 (Satin Chrome)
- AU-5405LN x BSP (Black Suede Powder Coat)
- AU-5405LN x 605 (Bright Brass)
- AU-5405LN x 606 (Satin Brass)
- AU-5405LN x 613E (Dark Oxidized Satin Bronze equivalent)
- AU-5405LN x 625 (Bright Chrome)
- AU-5405LN x 612 (Satin bronze)
- AU-5405LN x 619 (Satin Nickel Plated)
- AU-5405LN x WSP (White Suede Powder Coat)
- AU-5405LN x 693 (Flat black painted)
Key Features

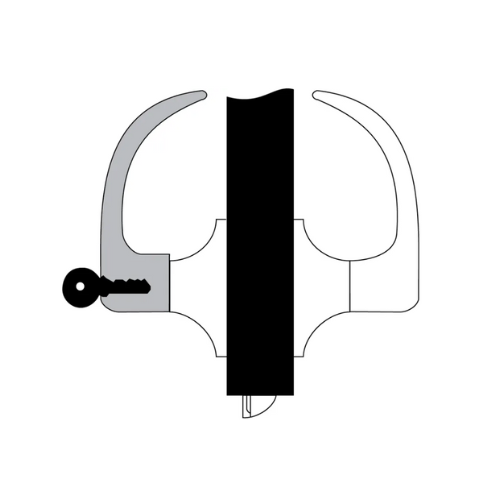

- Function: Storeroom / Closet – F86
- Operation:
- Inside lever operates latchbolt for safe egress
- Outside lever locked at all times; key required for operation
- Deadlocking latchbolt for enhanced security
- Free-wheeling levers in locked position for added protection
- Construction: Heavy-duty Grade 1 performance for durability
- Accessibility: ADA compliant for ease of use
- Warranty: 7-year mechanical warranty
- Applications: Storerooms, utility rooms, and exit doors requiring secure access
Benefits
- Provides secure access to restricted areas while ensuring safe exit
- Deadlocking latchbolt improves resistance against forced entry
- Free-wheeling lever design helps prevent vandalism and misuse
- Durable construction ensures long-lasting performance in high-use areas
- Easy to install and suitable for various door thicknesses
- Certified ANSI/BHMA Grade 1 for heavy-duty commercial and residential use
Specifications
- Brand: Accentra (Formerly Yale)
- Usage: Heavy Duty
- ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
- Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
- Backset: 2-3/4″
- Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
- Handing: Non-Handed
- Door Thickness: 1-3/4″ to 2-1/4″
- ADA Compliance: Meets A117.1 Accessibility Code
Certifications
- ANSI/BHMA Grade 1 certified for heavy-duty commercial use
- Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
- ADA and ICC A117.1 accessible design compliant
- UL/cUL fire-rated for up to 3 hours
- Florida Building Code approved (FL# 3063)
- NFPA 80 compliant for fire door applications
- Windstorm and impact resistant (ASTM E330, E1886, E1996)
- Certified to TAS 201, TAS 202, and TAS 203 standards
