Description

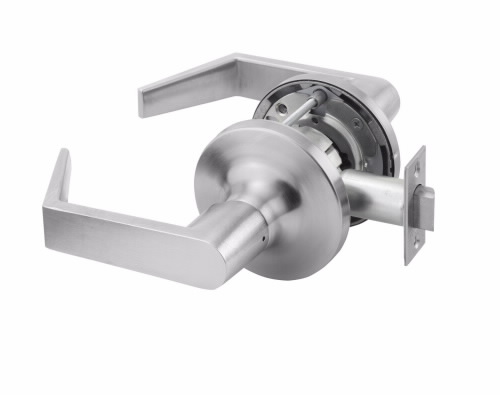

Accentra 5401LN Passage Lever (Non-Key)

The Accentra 5401LN Passage Lever is a heavy-duty, non-keyed lever designed for doors that do not require locking. Both levers operate the latchbolt at all times, making it ideal for interior passage and closet applications where free access is required. Built with rugged construction and a free-wheeling lever, it delivers superior durability, vandal resistance, and long-term performance.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach

Key Features

• Function: Passage / Closet (Non-Keyed) – F75
• Operation:
  • Either lever operates the latchbolt at all times
  • No locking function for continuous free access
  • Free-wheeling lever design for vandal resistance
• Construction: Heavy-duty Grade 1 performance for strength and durability
• Accessibility: ADA compliant for ease of use
• Warranty: 7-year mechanical warranty
• Applications: Interior passage doors, closets, corridors, and common-use areas

Benefits

• Rugged construction resists wear and tear for long-term reliability
• Adjustable rose allows easy installation on various door thicknesses
• Certified ANSI/BHMA Grade 1 for heavy-duty performance
• Windstorm certified (refer to local codes)
• Ideal for high-traffic commercial environments

Specifications

• Brand: Accentra (Formerly Yale)

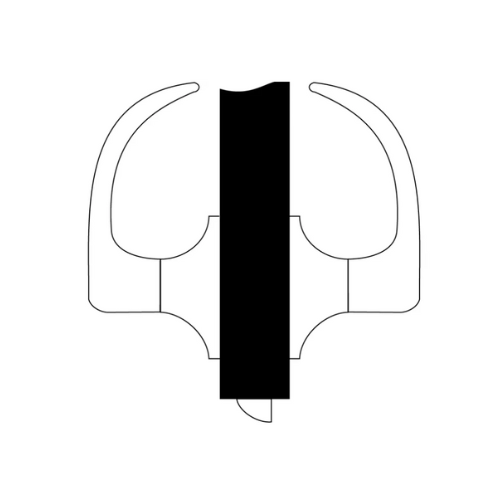

• Lock Function: Passage
• Usage: Heavy Duty
• ANSI/BHMA Standard: A156.2, Series 4000 Grade 1
• Latch: 1/2″ throw – 1-1/8″ x 2-1/4″ face
• Backset: 2-3/4″
• Strike: 4-7/8″ x 1-1/4″ ASA/ANSI with curved lip (ANSI A115.2 prep)
• Handing: Non-Handed
• Door Thickness: 1-3/4″ to 2-1/4″
• ADA Compliance: Meets A117.1 Accessibility Code

Certifications

• ANSI/BHMA Grade 1 certified for heavy-duty commercial use
• Compliant with ANSI A156.2 (Series 4000) and ANSI A156.41 standards
• ADA and ICC A117.1 accessible design compliant
• UL/cUL fire-rated for up to 3 hours
• Florida Building Code approved (FL# 3063)
• NFPA 80 compliant for fire door applications
• Windstorm and impact resistant (ASTM E330, E1886, E1996)
• Certified to TAS 201, TAS 202, and TAS 203 standards
