Description

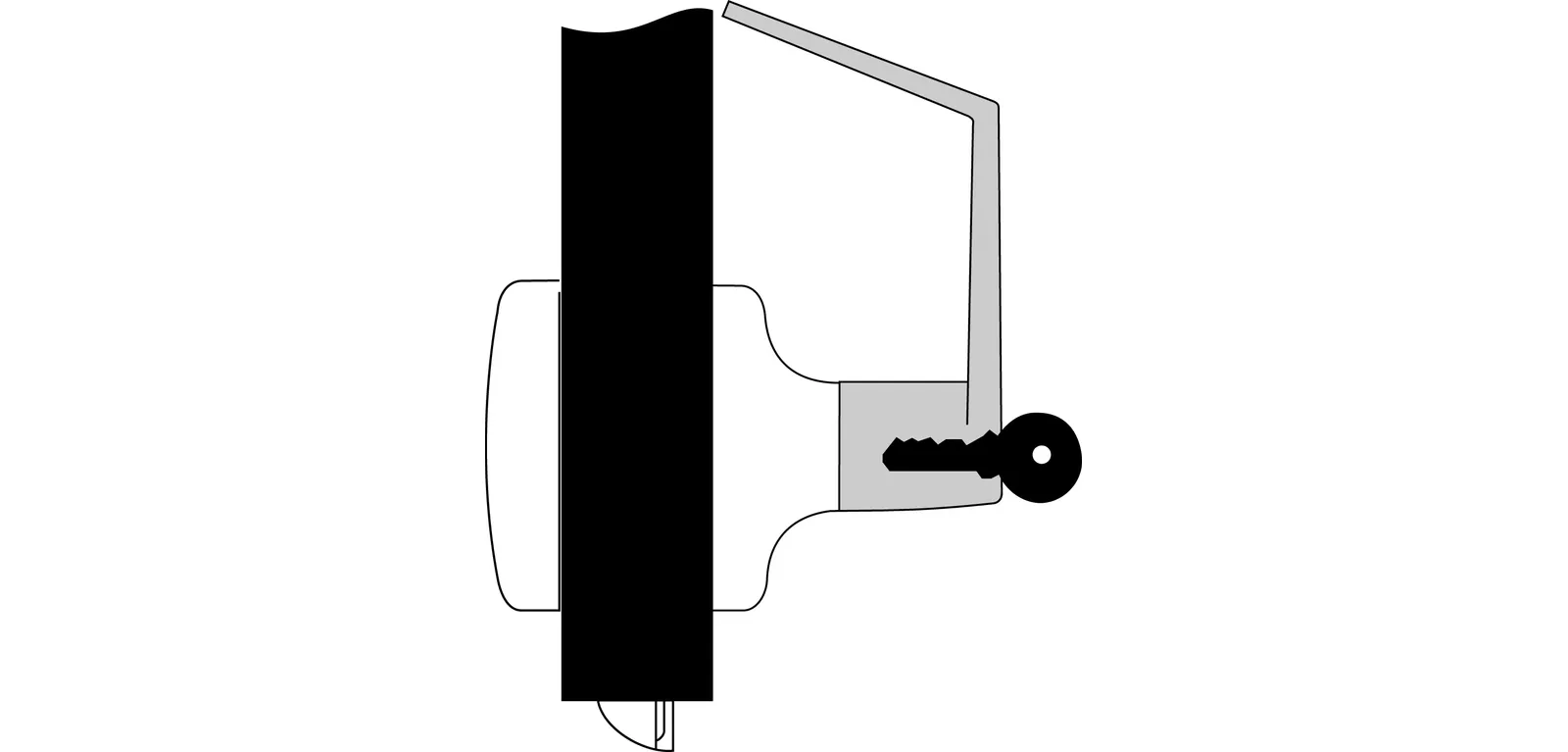

Accentra 5329LN Communicating Lever

The Accentra 5329LN Communicating Lever is designed for twin communicating or closet doors where one-side operation or limited space between doors is required. It features a deadlocking latchbolt, with the inside lever operating the latch except when locked by key. The lever includes a blank rose for a clean appearance and is intended for rooms with more than one entrance. Free-wheeling handles help prevent forced rotation and vandalism.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Communicating – F113
• Operation:
  • Deadlocking latchbolt provides reliable security
  • Inside lever operates latchbolt unless locked by key
  • Designed for use on twin doors or limited-space applications
  • Blank rose offers a clean, streamlined appearance
  • Free-wheeling lever handles resist forced rotation
• Construction: Grade 2 heavy-duty performance for long-term use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Twin communicating doors, closets, or rooms with limited space where one-side operation is required

Benefits

• Provides secure and controlled access on communicating doors
• Free-wheeling lever prevents tampering and reduces damage
• Durable design ensures long-lasting performance in everyday use

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
