Description

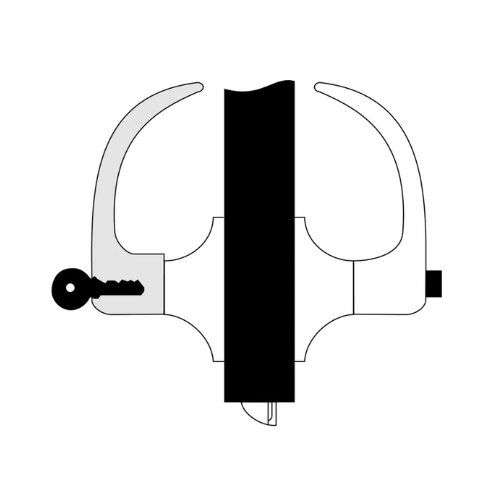

Accentra 5304LN Entry Lever

The Accentra 5304LN Entry Lever delivers dependable security and smooth operation for entrance and office doors. It features a deadlocking latchbolt for added protection and allows either lever to operate the latch unless the outside lever is locked from the inside. The inside pushbutton locks the outside lever, and it automatically releases when the inside lever is turned or when a key rotates in the locked outside lever. The inside lever always remains active for safe and easy egress, and the free-wheeling design helps prevent damage from forced rotation.

Lever Options

• Standard Series
  • AU – Augusta, MO – Monroe, PB – Pacific Beach, B AU – Augusta

Key Features

• Function: Entry / Office – F82A
• Operation:
  • Deadlocking latchbolt improves strength and security
  • Either lever operates latchbolt unless the outside lever is locked
  • Inside pushbutton locks the outside lever
  • Automatic release when the inside lever turns or key rotates in the outside lever
  • Inside lever always active for quick exit
  • Free-wheeling lever design reduces forced-entry damage
• Construction: Grade 2 durability for daily commercial or residential use
• Accessibility: ADA-compliant lever for accessible operation
• Warranty: 5-year mechanical warranty
• Applications: Office doors, main entrances, interior entries, and areas requiring simple pushbutton locking

Benefits

• Provides convenient pushbutton locking with automatic release for smooth operation
• Ensures reliable security with a strong deadlocking latchbolt
• Free-wheeling mechanism protects against tampering and misuse
• Designed for comfortable, long-lasting performance in everyday environments

Specifications

• ANSI/BHMA Code: A156.2
• Backset (Standard): 2 3/4″
• Optional Backsets: 2 3/8″ min, 6″ max
• Door Thickness: 1 3/8″ min to 2 1/4″ max
• Cylinder Format: Conventional, Large Format, Small Format
• Pins: 6-pin (where applicable)
• Handing: Non-handed
• Latchbolt Throw: 1/2″
• Strike: ANSI Curved Lip
• UL/ULC Listed: Yes

Certifications

• NSI/SDI 250.13
• ASTM E330
• Florida Building Code Approved (FL# 3063)
• ADA Compliant
• UL/cUL Fire-Rated Up to 3 Hours
• ASTM E1996
• ASTM E1886
• NFPA 80 Compliant
• TAS 201 / TAS 202 / TAS 203
• ICC A117.1
• ANSI/BHMA A156.2, Series 4000, Grade 2
• ANSI/BHMA A156.41
