Accentra 4722LN Corridor Lever

Assa Abloy Accentra

Assa Abloy Accentra a leading brand of commercial hardware, formerly known as Yale Commercial, has been rebranded but using the same great quality products!

Manufacturers Website

Accentra 4722LN Corridor Lever

Original price was: $604.00.Current price is: $181.68.

Flexible and Secure Corridor Access

This lever ensures reliable key- or pushbutton-controlled entry while keeping the inside lever always active for safe egress. Additionally, its free-wheeling design prevents damage and delivers long-lasting durability.

Choose your lever design. Styles differ by handle shape only.
Select finish
Select finish
Select finish
Select finish
Select finish
Select finish
Select a keyway
Select how you would like your lock keyed
Please include any comments we should know about your order.
Product total
Options total
Grand total

Description

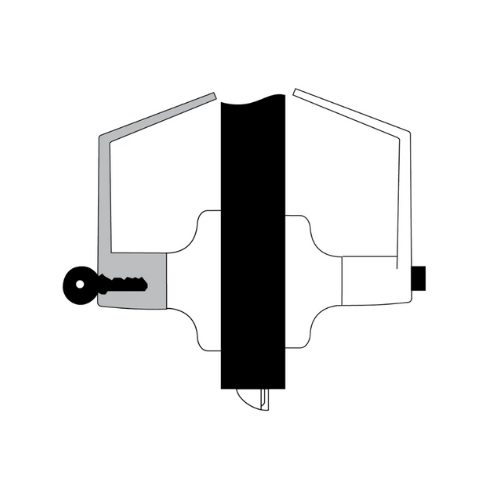

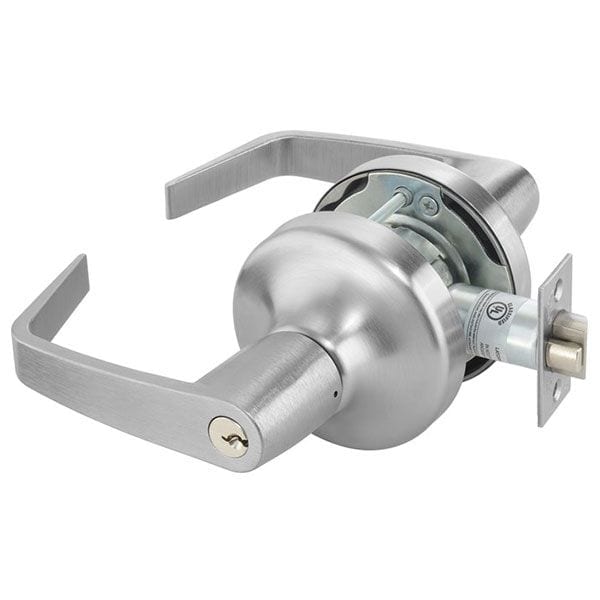

Accentra 4722LN Corridor Lever – Secure and Convenient Access for Dormitories and Corridors

The Accentra 4722LN Corridor Lever secures dormitory, corridor, and other high-traffic doors while providing smooth, reliable operation. Furthermore, either lever retracts the deadlocking latchbolt unless the outside lever is locked by the inside pushbutton or key, allowing controlled access whenever needed.

In addition, pressing the pushbutton locks the outside lever, and it automatically releases when users turn the inside lever or close the door, ensuring safe egress at all times. However, when the key locks the outside lever, users must manually unlock it, as the automatic release is disabled. Moreover, the inside lever always remains active, providing consistent and secure operation for residents and staff. Finally, the free-wheeling lever prevents forced rotation damage, which enhances durability and ensures long-lasting performance in high-use areas.

Lever Options

  • Standard Series
    • AU – Augusta, MO – Monroe, PB – Pacific Beach
  • Reflections Series
    • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever
Key Features
  • Function: Corridor / Dormitory – ANSI F90
  • Operation:
    • Either lever operates latchbolt unless outside lever is locked
    • Inside lever always active for safe egress
    • Pushbutton locks outside lever; automatically releases when inside lever turns or door closes
    • Key lock disables automatic release; requires manual key operation
    • Free-wheeling lever prevents forced rotation damage
  • Applications: Dormitories, corridors, and other medium-traffic areas
  • Construction: Grade 1 strength for durability
  • Handing: Non-handed for easy installation
Benefits
  • Provides flexible access control with pushbutton or key locking
  • Ensures safe and constant egress from inside
  • Free-wheeling lever protects the lock from damage
  • Ideal for dormitories, residential halls, and corridor doors
Specifications
  • ANSI/BHMA: A156.2, Series 4000, Grade 1
  • Backset: 2-3/4″ standard (other options available)
  • Cylinder Formats: Conventional, Large Format IC, Small Format IC
  • Pins: 6-pin (when keyed cylinder format is used)
  • Door Thickness: 1-3/4″ standard (1-3/8″ to 2-1/4″ range)
  • Latchbolt Throw: 1/2″
  • Strike: ANSI curved lip
  • Handing: Non-handed
  • Max Backset: 19″
  • UL/ULC Listed: Yes, up to 3 hours
  • Warranty: 5-year mechanical warranty
Certifications
  • ANSI/SDI 250.13
  • UL/cUL Fire Rated (Up to 3 Hours)
  • ADA Compliant
  • NFPA 80
  • ASTM E1886, E1996, E330
  • Florida Building Code Approved (FL# 3063)
  • TAS 201, 202, 203
  • ICC A117.1
  • ANSI/BHMA A156.2 (Grade 1)
  • ANSI/BHMA A156.41
