Description

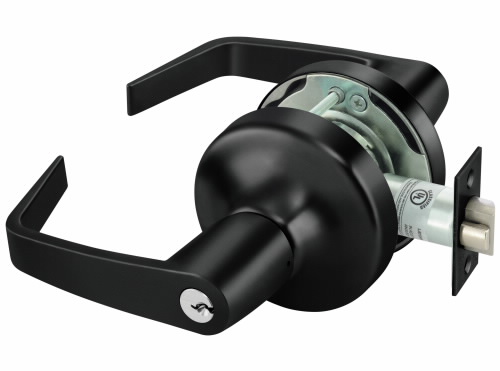

Accentra 4705LN Storeroom Lever – Secure Access for Storeroom and Utility Doors

The Accentra 4705LN Storeroom Lever is designed for storeroom, utility, or exit doors, providing reliable security and everyday functionality. Additionally, the deadlocking latchbolt is operated by the inside lever while the outside lever is controlled by a key, ensuring the outside lever remains locked at all times.

Moreover, the inside lever is always active for safe egress, and the free-wheeling lever design helps prevent damage when the outside lever is locked. As a result, this lever is ideal for commercial, institutional, or high-traffic areas where secure, controlled access is essential.

Lever Options

• Standard Series

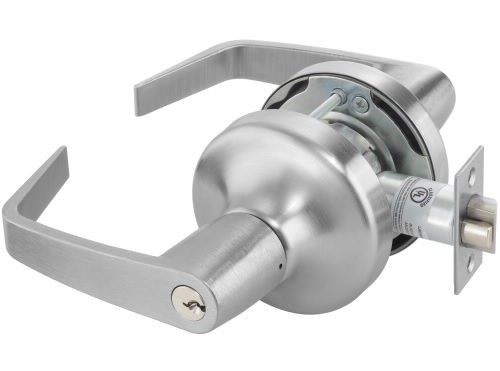

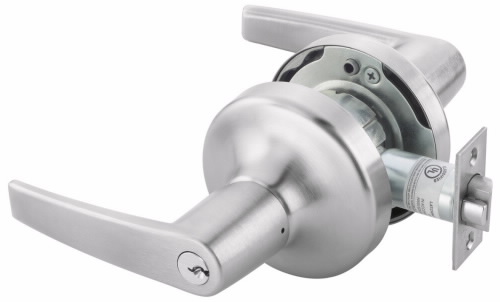

  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series

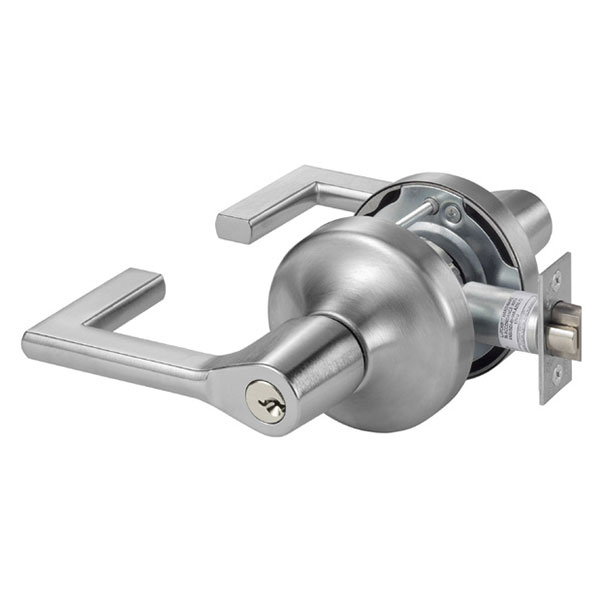

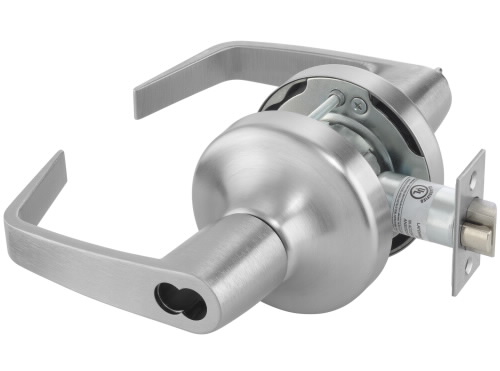

  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

• Function: Storeroom / Closet – ANSI F86

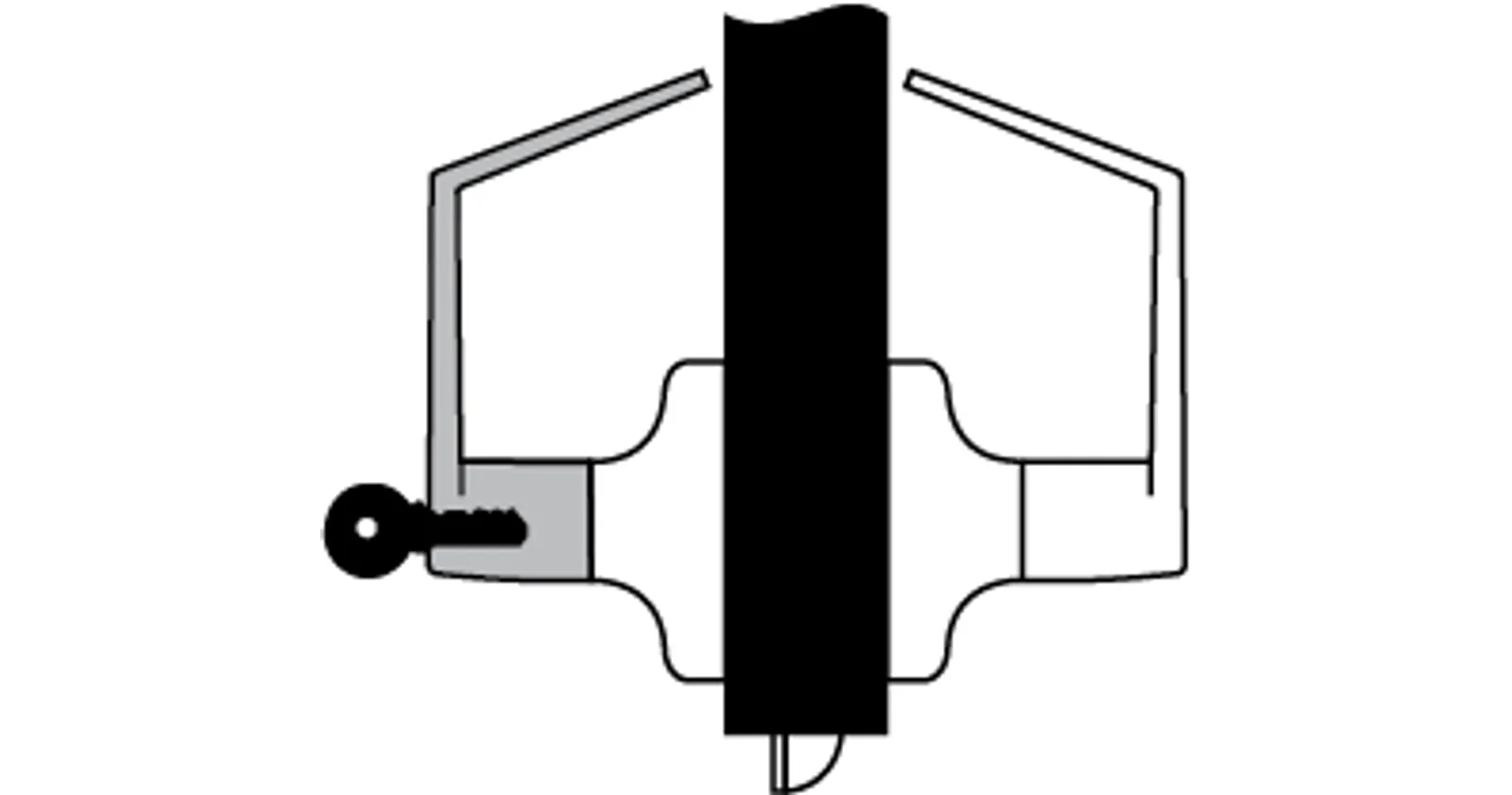

• Operation:
  • Inside lever operates latchbolt at all times
  • Outside lever locked, operable only with key
  • Free-wheeling lever prevents forced rotation damage
• Applications: Storerooms, utility doors, exit doors
• Construction: Grade 1 strength for heavy-duty use
• Handing: Non-handed for easy installation

Benefits

• Provides secure, key-controlled access from outside
• Ensures reliable egress from inside at all times
• Free-wheeling lever protects the lock from damage
• Ideal for commercial, institutional, and utility applications

Specifications

Certifications

• ANSI/SDI 250.13
• UL/cUL Fire Rated (Up to 3 Hours)
• ADA Compliant
• NFPA 80
• ASTM E1886, E1996, E330
• Florida Building Code Approved (FL# 3063)
• TAS 201, 202, 203
• ICC A117.1
• ANSI/BHMA A156.2 (Grade 1)
• ANSI/BHMA A156.41

Manufacturers Website
