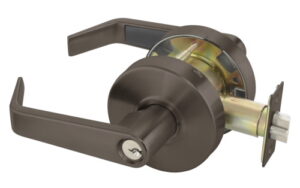

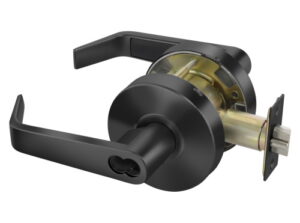

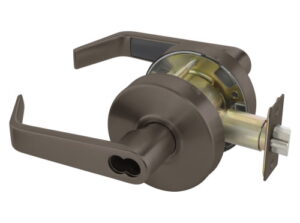

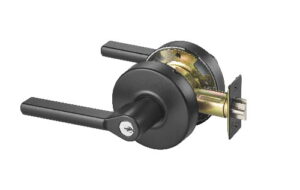

Accentra 4605LN Storeroom Lever (ANSI F86) – Storeroom / Closet Door Lever

The Accentra 4605LN Storeroom Lever is engineered for secure, reliable operation in areas that require controlled access, such as storerooms, utility rooms, and exit doors. Designed with a deadlocking latchbolt, this lockset ensures maximum protection while offering smooth interior egress.

The exterior lever remains rigid at all times, preventing unauthorized entry, while the interior lever stays active for quick and convenient exit. Ideal for commercial, institutional, and multi-use facilities requiring durable, Grade 2 hardware.

Lever Options

• Standard Series

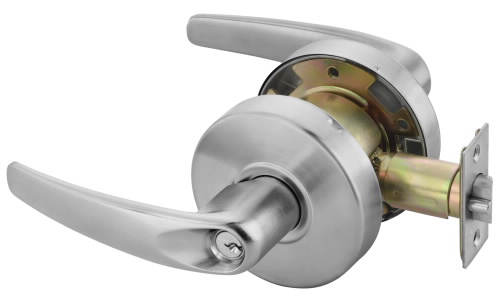

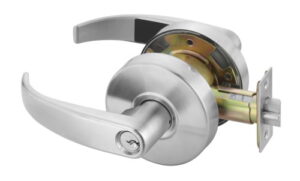

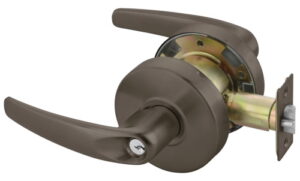

  • AU – Augusta, MO – Monroe, PB – Pacific Beach
• Reflections Series

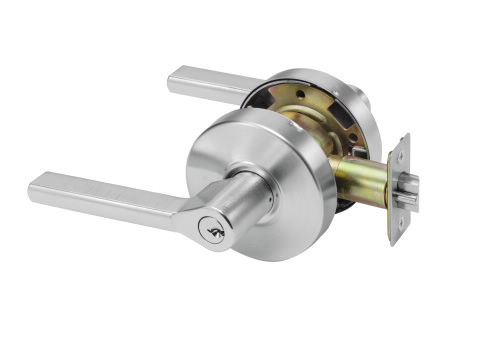

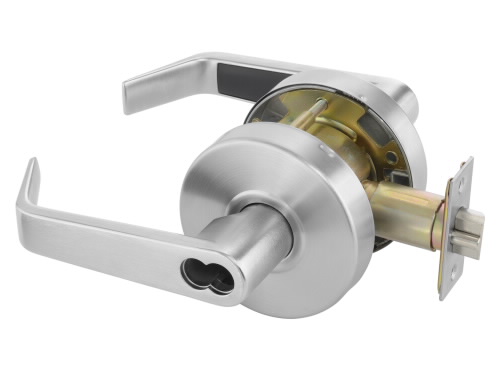

  • TB – Hudson Lever, UB – Hudson Lever, B-AU – Augusta Lever

Key Features

• Function: Storeroom – ANSI Function No. F86
• Operation:
  • Inside lever always active, operating the latchbolt for immediate egress
  • Outside lever remains rigid; latchbolt operated by key only
• Handing: Field reversible for easy installation
• Applications: Suitable for commercial, institutional, and multi-use facilities
• Available Options: 5 trims and 6 finishes for design flexibility
• ADA Compliant: Accessible lever design for universal usability
• UL/cUL Fire Rated: Up to 3 hours for added safety
• Windstorm Certified: Meets stringent local building codes
• Warranty: Backed by a 3-year mechanical warranty

Benefits

• High-security performance for controlled-access environments
• Reliable interior egress with always-active inside lever
• Durable, commercial-grade construction for heavy-duty use
• Meets multiple safety and performance certifications
• Designed for ease of use, accessibility, and long-term reliability

Specifications

• • ANSI/BHMA Code: A156.2, Series 4000LN, Grade 2
  • Backset Depth (Standard): 2-3/4″
  • Backset Range: 2-3/8″ to 2-3/4″
  • Latchbolt Throw: 1/2″
  • Door Thickness (Standard): 1-3/4″
  • Door Thickness Range: 1-3/8″ to 1-3/4″
  • Cylinder Format: Conventional, Small Format
  • Cylinder Pins: 6 pin
  • Number of Keys: 2
  • Strike Type: ANSI Curved Lip
  • Handing: Non-handed (Field Reversible)
  • UL/ULC Listed: Yes

Certifications

• ANSI/SDI 250.13 Certified
• ASTM E1886 / E1996 / E330 Certified
• Florida Building Code Approved (FL# 3063)
• UL/cUL Fire Rated – Up to 3 Hours
• NFPA 80 Compliant
• TAS 201, TAS 202, TAS 203 Certified
• ICC A117.1 & ADA Compliant
