Description

Accentra 2700 Series Architectural Door Closer

The Accentra 2700 Series is a premium, cost-effective architectural solution designed for commercial environments that require a balance of aesthetics and rugged performance. Featuring a sleek full plastic cover and a durable aluminum body, this Grade 1 closer is engineered for high-traffic applications where ease of installation and precise control are essential. With adjustable spring sizes 1-6 and a variety of specialized heavy-duty arm options, the 2700 Series offers a high level of customization for any opening

Model Options

Select the model that best fits your mounting and operational requirements:

• 2701: Non-Hold Open Tri-Packed (Regular, Parallel, or Top Jamb)
• 2701DL: Non-Hold Open Tri-Packed with Delayed Action

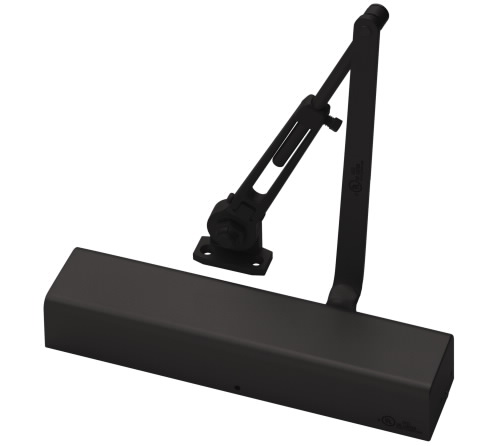

• 2711: Hold Open Tri-Packed

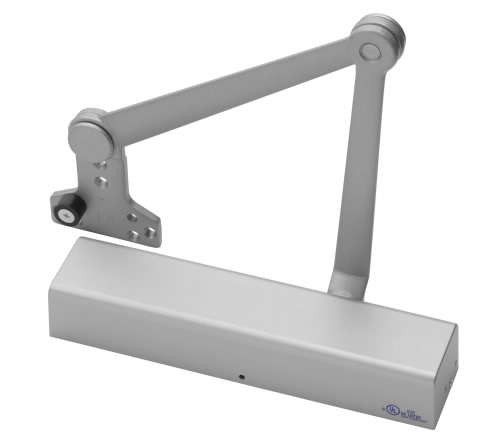

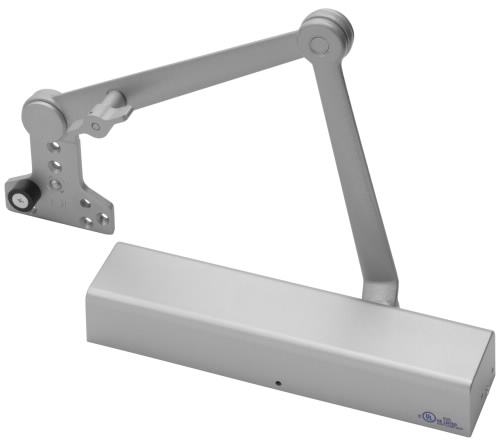

• 2721 / 2721T: Heavy-Duty Non-Hold Open / Hold Open with Removable Stop

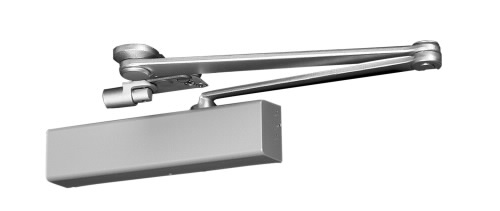

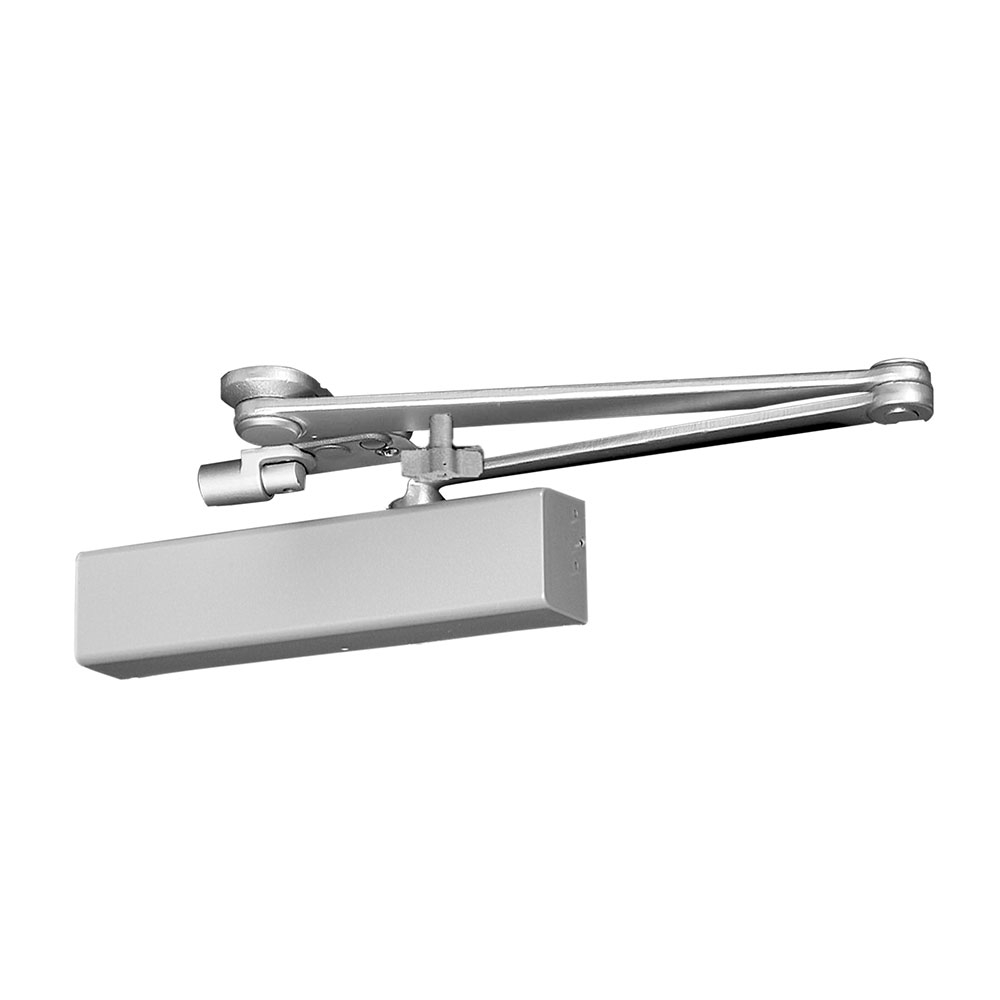

• 2731 / 2731T: Heavy-Duty Non-Hold Open / Hold Open with Spring Buffer and Removable Stop

Key Features

• Operation: Precision rack and pinion mechanism for smooth opening and closing cycles.
• Adjustability: Fully adjustable spring sizes 1-6; independent valves for backcheck, closing speed, and latch speed.
• Versatile Mounting: Tri-packed standard (Regular, Parallel, or Top Jamb) with non-handed design for universal installation.
• Construction: Rugged aluminum body protected by a full plastic cover for improved aesthetics.
• Included Hardware: Furnished with sleeve nuts standard; optional through-bolts and grommet nuts available.
• Warranty: 10-year limited mechanical warranty.

Benefits

• Accessible: Designed for ease of use and compliant with ADA low opening force requirements across various door sizes.
• Economical: Extended life cycle and a 10-year warranty reduce the total cost of ownership and material waste.
• Highly Customizable: A wide range of arm options—including stop arms and spring buffers—allows for tailored protection in high-impact areas.
• Architectural Appeal: The full cover conceals the closer body and mounting screws, providing a clean, professional appearance.

Specifications

• Brand: Accentra
• Usage: Architectural/Commercial Heavy Duty
• ANSI/BHMA Standard: A156.4, Grade 1
• Spring Size: Adjustable 1 through 6
• Handing: Non-handed
• Door Thickness: 1-3/4″ Standard
• Certifications: UL-cUL Listed for fire doors; ANSI/BHMA A117.1 Accessibility Code compliant.

Arm Function

Specify Non-Hold Open for mandatory automatic closing on fire-rated doors, or Hold Open to mechanically maintain a door’s position at a set angle on non-fire-rated openings.

Mounting Options & Applications
