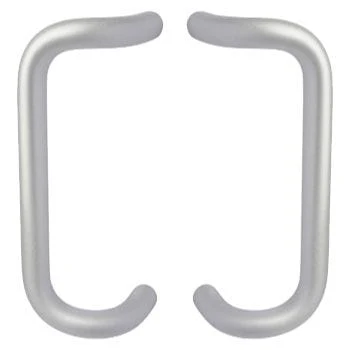

The Rockwood BF157BTB16 Back-to-Back 90° Offset Door Pull is built for barrier-free access and heavy use. First, its 90° offset and round grip provide a comfortable and easy hold for ADA doors. Next, the back-to-back design allows use from both sides of the door. In addition, the heavy-duty mounting system adds strength and support for high-traffic openings. As a result, it performs well in rough service conditions.

Furthermore, this pull works on both wood and metal doors. For better stability, Y base plates are recommended for wood or glass doors. Also, the HD mounting uses a hex drive, which ensures tight fastening and long-lasting use. Moreover, corrosion-resistant finishes help protect the pull in harsh environments. Therefore, it remains reliable over time.

Key Features:

• Back-to-back 90° offset design for double-sided door use
• ADA-recommended, barrier-free operation
• Heavy-duty (HD) mounting with hex drive for secure installation
• Recommended for high-frequency and rough service openings
• Y base plates recommended for wood or glass doors
• Superior corrosion resistance with US32316 and US32D316 finishes

Installation Details:

• Mounting Type: Back-to-back (Type 16) for wood or metal doors
• Bolt Size: 1/4″-20
• Drill Size: 9/32″
• Material Size: 1″ diameter

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, Brass, Bronze, Stainless Steel
• Projection: 3 1/2″
• Offset: 4″
• Center-to-Center: 10″
• Clearance: 2 1/2″
• Max Overall Size: 11″ H
• Weight: 4.1 lbs
• Door Thickness: Standard 1-3/4″ (advise if different)
