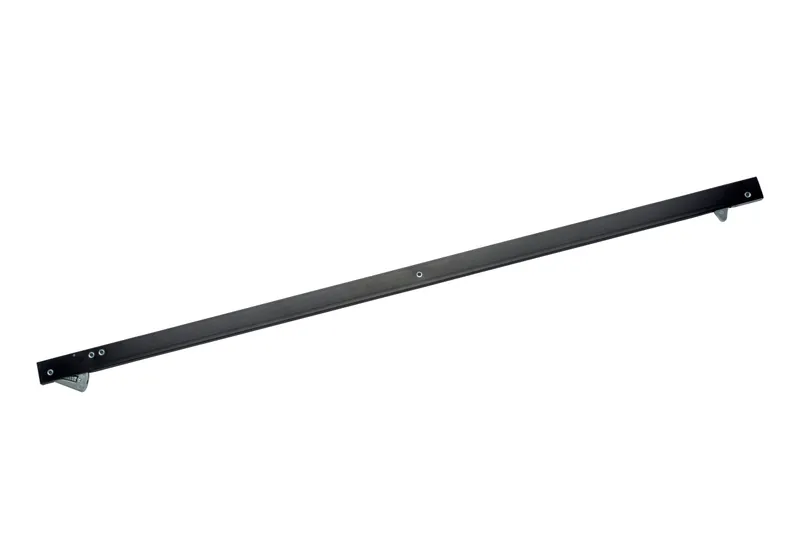

Rockwood 2600 Series Door Coordinator

The Rockwood 2600 Series Door Coordinator provides reliable coordination for pairs of doors while preventing damage from abnormal force. Its override protection mechanism ensures doors operate smoothly even under high stress, safeguarding both doors and frames.

The coordinator’s mechanism and filler bar completely span the width of the opening, and when painted to match the door frame, it becomes virtually invisible. Available in multiple sizes, the 2600 Series accommodates a wide range of jamb widths, with custom lengths for both smaller and larger openings. Designed for practical installation, surface vertical rod strikes can be prepped directly into the coordinator body for a clean and efficient setup.

Features:

• Override protection prevents damage from abnormal force
• Mechanism and filler bar completely fill the width of the opening
• Custom sizes accommodate a full range of door widths
• Surface vertical rod strikes can be prepped directly into the coordinator body

Specifications:

• Bumper Material: Steel
• Width: 1-5/8″
• Depth: 5/8″
• Weight: 7 lbs
• Fasteners Included: 7 ea. #12-24 × 1-1/4″ Truss Head Type C Tapping Screws

Available Models and Sizes:

• NX2600 Series: Jamb widths 48″–54″, coordinator length 42″
• 2600 Series: Jamb widths 54″–96″, coordinator length 52″
• Custom sizes available; contact factory for smaller or larger openings
