The Pemko XG90KIT Perimeter Gasket Solution with Stop Extender quickly restores fire-rated doors to compliance, while also filling large vertical and head gaps. It combines an intumescent gasket with a silicone gasket, so doors such as steel, wood, hollow metal, or composite meet UL 90-minute fire rating standards. In addition, the kit includes a stop extender for vertical jambs, making installation easier and more complete.

Features:

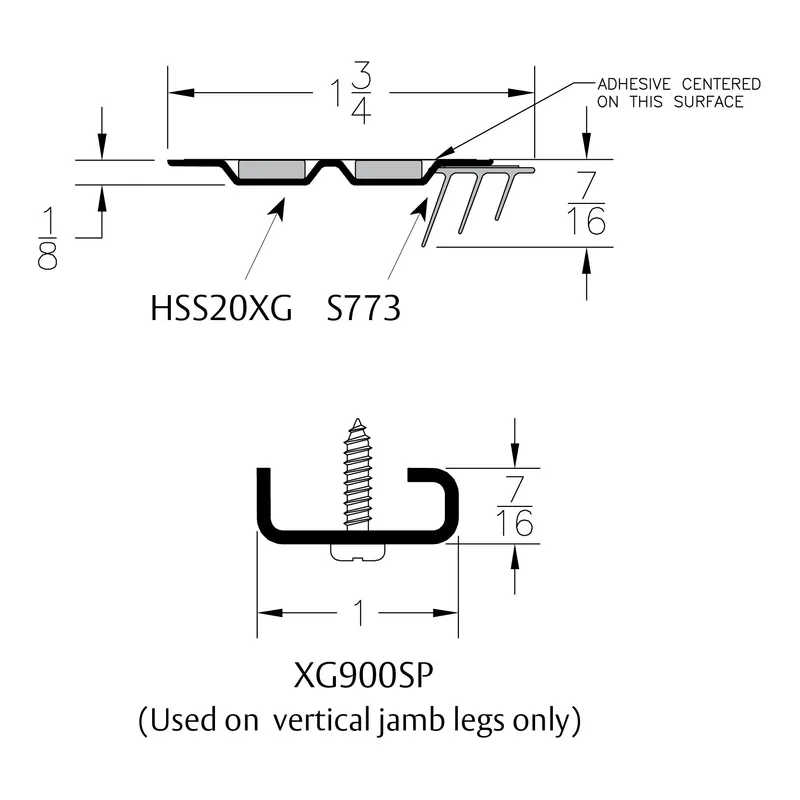

• HSS20XG: PVC-encased intumescent gasket with adhesive backing, so installation is fast and simple
• S773: Triple-fin, high-temperature silicone gasket for extra fire protection
• XG900SP Stop Extender: Fits vertical jambs and is included in kits with 84-inch designations (_84, _3684, _4884)
• UL Classified for openings with gaps beyond NFPA 80 limits
• Rated up to 90 minutes for steel, wood, hollow metal, and composite doors
• Designed for vertical gaps from 1/8” up to 3/8”

Benefits:

• Restores fire doors to compliance quickly, so inspection issues are resolved easily
• Saves money, because full door replacements are unnecessary
• Peel-and-stick design makes installation simple, and the stop extender ensures proper fit
• Provides reliable protection and improves safety for staff and building occupants

Specifications:

• Base Material: Galvannealed steel
• Gasketing Material: Intumescent, Silicone
• Fasteners: PHSMS #6 x 5/8″
• Mounting Location: Side of frame
• Mounting Type: Screw applied
• Minimum Length: 3′
• Profile Height: 7/16″
• Overall Height: 219/500″
• Weight: 0.65 lbs

Certifications:

• UL 10C – Positive Pressure Fire Test for Door Assemblies
