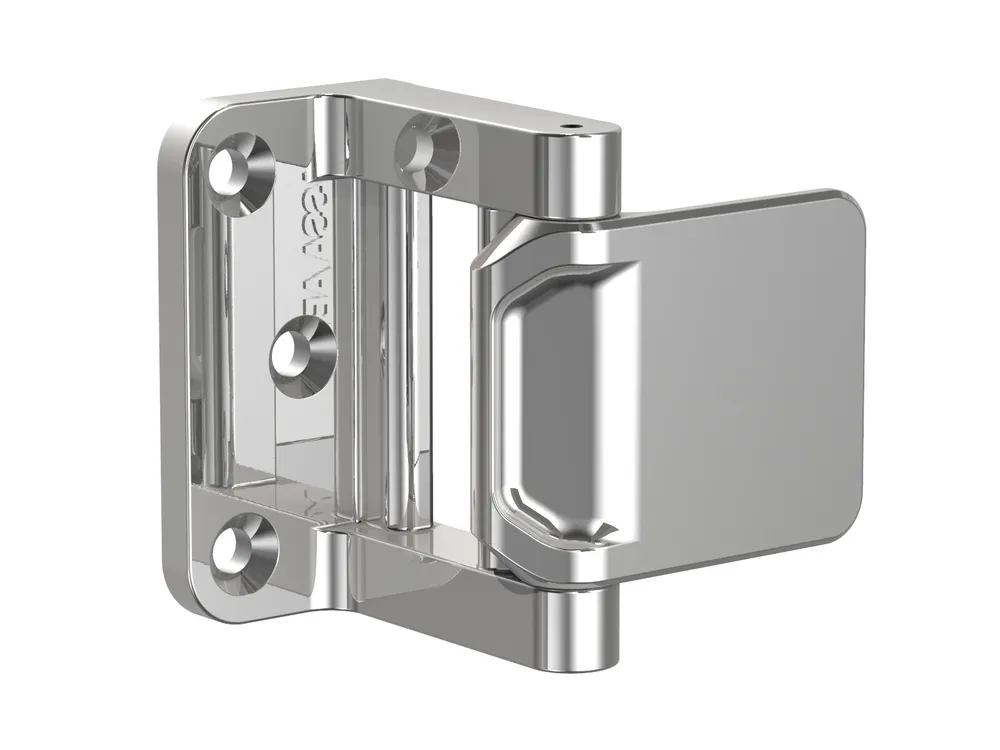

The Pemko PDLAA Hospitality Privacy Door Latch features a modern, streamlined design that enhances privacy and security for interior corridor doors in hotels, dormitories, and similar facilities. Designed for simple operation and quick installation, it is fully compatible with existing accessories and can easily retrofit legacy Pemko PDL latches.

Key Features & Benefits:

• Modern, updated design for a sleek and professional appearance
• Simple operation for easy use by guests and residents
• Small footprint that blends seamlessly with door hardware
• Easily retrofits existing Pemko PDL latch installations
• Compatible with aluminum, wood, and metal doors
• Silicone bumpers help protect the door surface
• Does not interfere with normal door operation
• Supplied with #12 x 1-3/4″ Phillips flat head SMS screws
• Provides enhanced in-room privacy and visitor identification
• Cannot be used to keep a door ajar

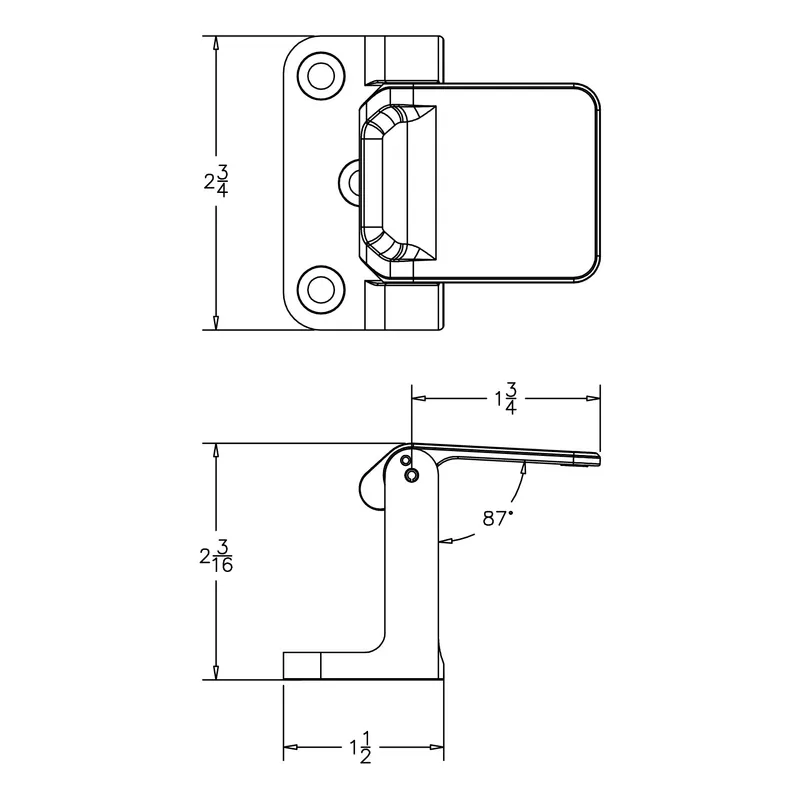

Specifications:

• Base Material: Cast zinc
• Door Type: Aluminum, Wood, Metal
• Height: 2 3/16″
• Width: 1 1/2″
• Projection: 1 3/4″
• Latch Face Height: 1 3/4″
• Latch Face Length: 2 3/4″
• Mounting Type: Screw applied
• Weight: 0.75 lbs

Certifications:

• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ADA Compliant (when installed according to ADA guidelines)
• NFPA 80-2016 5.1.2.3.3
• NFPA 80-2016 5.2.3.5.2(10)

Ideal for hospitality and multi-residential environments, this privacy door latch delivers reliable performance, improved aesthetics, and convenient installation for modern door systems.

Finish Available:

• PDLAA26- Polished Chrome
• PDLAABSP – Black Suede Powder Coat
• PDLAA10BE – Dark Oxidized Satin Bronze Equivalent
• PDLAA3 –Bright brass
• PDLAA26D –Satin Chrome Plated
• PDLAA4 – Satin brass
