The Pemko FS_CP Full Surface Center Pivot Hinge is made for retrofit projects. Because it mounts to exposed door and frame surfaces, installation is quick and simple. In addition, it replaces standard butt hinges, so no door or frame changes are required. Moreover, it works with hollow metal doors and frames, and no special reinforcements are needed.

Furthermore, it is a great choice for tight or restricted frame faces. Also, multiple fasteners provide a secure hold, so the hinge supports heavy use. As a result, doors pivot smoothly and stay aligned. Additionally, it meets ANSI/BHMA and UL fire standards, which ensures code compliance. Therefore, it delivers safe and reliable performance. Finally, it offers a durable and practical solution for commercial retrofit work.

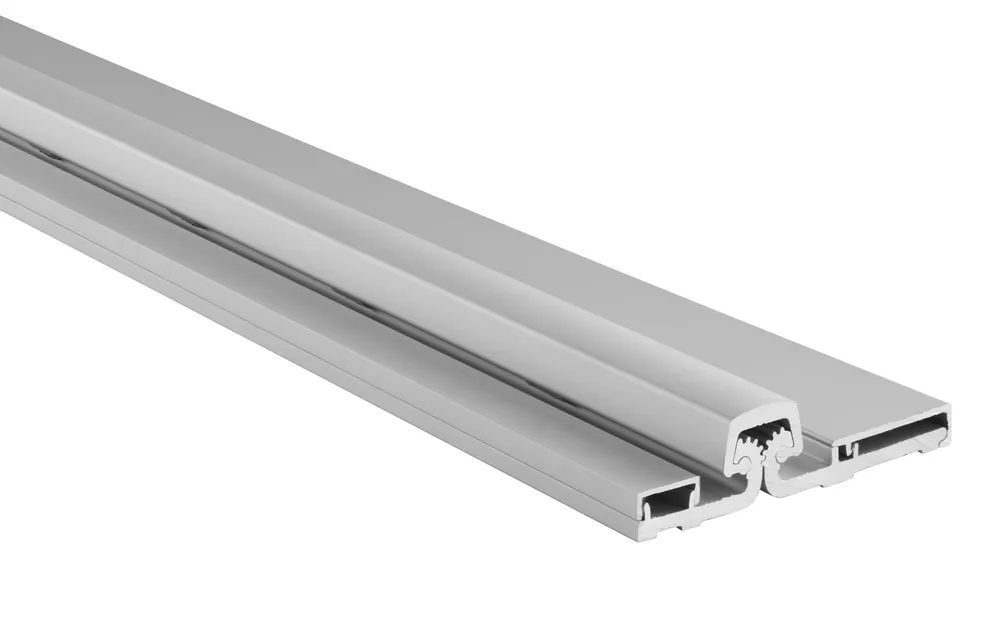

• CFS_CP – C – Clear Anodized Aluminum

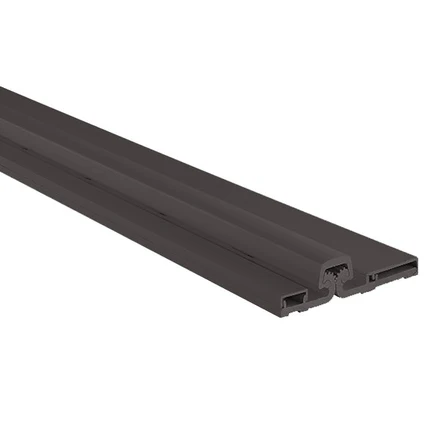

• DFS_CP– D – Dark Bronze Anodized Aluminum

Key Features

• Designed mainly for retrofit projects
• Replaces traditional butt hinges easily
• Applied to exposed door and frame surfaces
• No special hinge reinforcements required
• Works with hollow metal doors and frames
• Heavy-duty, Grade 1 aluminum construction
• Standard duty, 6″ bearing space
• Smooth pivot operation with 180° swing
• Guaranteed for life of the opening
• Complies with ANSI/BHMA and UL fire standards

Specifications

• Grade: Grade 1
• Material: Aluminum
• Hinge Type: Full Surface Center Pivot Continuous Geared
• Strength: Heavy Weight
• Handing: Non-Handed
• Door Thickness: 1-3/4″
• Maximum Door Width: 4′
• Maximum Hinge Length: 120″
• Minimum Hinge Length: 79″
• Maximum Swing: 180°
• Minimum Hinge Clearance: 1/16″
• Weight: 1.29 lbs. per foot
• Width (frame leaf): 1-3/16″
• Width (door leaf): 2″
• Cap Width: 25/32″
• Height (total hinge): 3/4″
• Fasteners: Teks, Thru Bolts

Certifications

• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.26 Grade 1 (for 300 lb. doors)
• ANSI/BHMA A156.18
• Health Product Declaration (HPD)
