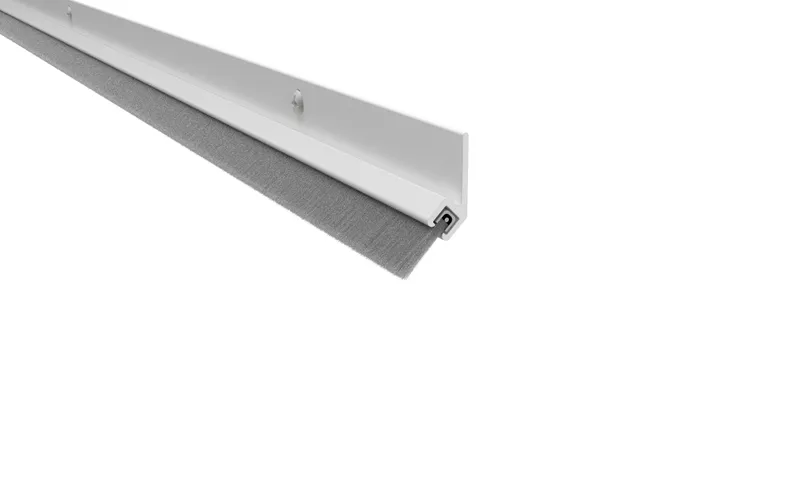

The Pemko 45041_NB 45° Aluminum Brush Seal is designed to provide a tight seal between doors and floor surfaces or jambs. This Pemko 45041_NB brush seal effectively reduces gaps up to 1/4″, preventing the infiltration of light, air, wind, rain, snow, smoke, and fumes. In addition, it naturally repels rodents and spiders, while maintaining smooth operation over slightly uneven floors.

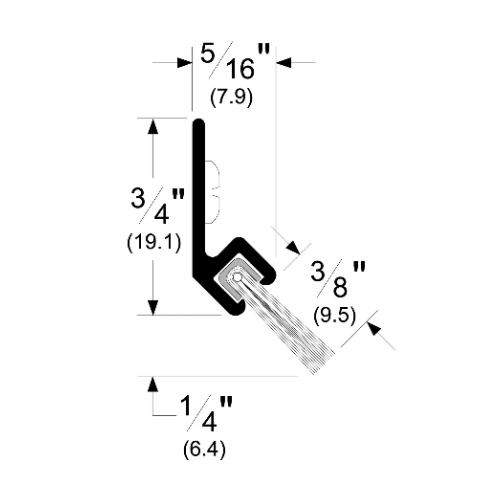

The 3/8″ nylon brush is densely compressed and set at a 45° angle in an aluminum retainer for optimal contact with surfaces. Moreover, the brush remains flexible from -40°F to over 400°F, ensuring reliable performance in extreme temperatures. Furthermore, it conforms to irregular surfaces such as carpet, stone, and grout lines, providing an excellent seal with minimal closing force.

This brush seal works on hollow metal and wood doors and can be used on overhead, sectional, sliding, and automatic doors. Additionally, it is UV stable, durable, and cost-effective for long-term use. Its design ensures protection against drafts, dust, moisture, insects, light, sound, and heat loss.

Key Features

• 3/8″ densely compressed nylon brush
• 45° aluminum retainer for optimal surface contact
• Flexible in high and low temperatures
• Seals gaps up to 1/4″
• Conforms to irregular surfaces for superior sealing
• Suitable for hollow metal and wood doors
• Works on overhead, sectional, sliding, and automatic doors

Benefits

• Reduces infiltration of light, air, wind, rain, smoke, and fumes
• Smooth gliding brush adjusts to uneven floors
• Durable, UV stable, and long-lasting
• Naturally repels rodents and spiders
• Helps prevent heat loss and drafts

Specifications

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1″

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 4L10 Listed
• UL 1784 – Air Leakage Tests of Door Assemblies
• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

Overall, the Pemko 45041_NB 45° Aluminum Brush Seal offers reliable, long-lasting sealing for commercial doors, protecting interiors from drafts, moisture, pests, and environmental elements. Therefore, it is an ideal choice for energy efficiency and comfort in high-traffic areas.
