Description

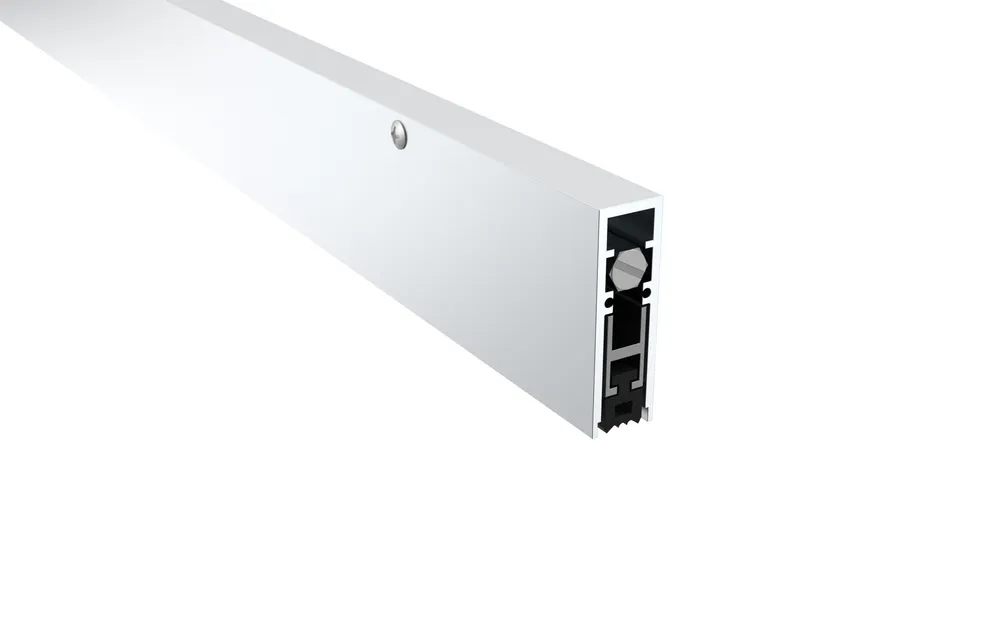

Pemko 4131_RL Auto Door Bottom – Surface or Semi-Mortise with Sponge Neoprene Insert

The Pemko 4131_RL Automatic Door Bottom – Sponge Neoprene Insert helps keep rooms quiet, clean, and energy efficient. It blocks light, sound, and drafts, while also helping stop dust, smoke, and odors from entering under the door. Because it can be surface mounted or semi-mortised, it offers flexible installation for many types of projects.

When the door closes, the jamb-contacting plunger activates the internal drop-bar seal. As a result, the sponge neoprene insert lowers smoothly and presses firmly against the floor or threshold. This creates a tight seal every time the door shuts. In addition, the aluminum case protects the internal parts, which helps ensure long service life and steady performance.

The black sponge EPDM insert is slightly compressible, so it seals small gaps with ease. At the same time, it stays flexible in both hot and cold temperatures. It also resists damage from oily substances, which makes it a dependable choice for busy buildings.

Key Features

• Surface Applied or Semi-Mortise Installation
• Non-Handed Design for versatile application
• Smooth, Positive Seal Mechanism with plunger-activated drop-bar
• Sponge Neoprene (EPDM) Insert – Flexible and oil-resistant
• Compatible with wood or hollow metal doors (select models)
• Optional nylon brush (NB) models available for uneven surfaces
• End plates included for all mounting applications
• Clean, symmetrical square case for flush mounting
• Includes installation instructions and mounting screws

Benefits

• Effectively seals out drafts, dust, moisture, insects, fumes, light, and sound
• Enhances energy efficiency and acoustic control
• Supports fire- and smoke-rated door assemblies
• Smooth, reliable operation for long-lasting performance

Specifications

• Base Material: Aluminum
• Insert: Black Sponge EPDM
• Fasteners: THSMS #8 x 1-1/4″
• Maximum Length: 72″
• Minimum Length: 12″
• Overall Height: 1-27/32″ (46.8 mm)
• Width: 19/32″ (15.1 mm)

Available Finishes

• 4131CRL: Clear Anodized Aluminum with Black Sponge EPDM
• 4131BSPRL: Black Suede Powder Coat with Black Sponge EPDM
• 4131DRL: Dark Bronze Anodized Aluminum with Black Sponge EPDM

Certifications & Ratings

• Air Infiltration Tested
• Sound Tested – ASTM E90
• BHMA Certified
• Smoke Tested – UL 1784
• Fire Rated – UL 10C (Positive Pressure)
• Underwriters Laboratory 4L10 Listed
• GREENGUARD Gold Certified

The Pemko 4131_RL delivers professional-grade sealing performance with flexible mounting options, making it an excellent choice for projects requiring sound control, fire compliance, and dependable environmental sealing.
