Description

Pemko 411ANBL Full Mortise Auto Door Bottom, Nylon Brush Insert

Pemko 411ANBL Full Mortise Auto Door Bottom, Nylon Brush Insert provides a reliable solution to seal gaps under doors, keeping out drafts, dust, moisture, insects, light, and sound. This automatic door bottom lowers a durable drop-bar seal as the door closes, ensuring a tight fit on floors while maintaining smooth operation.

The aluminum full-mortise case houses a nylon brush insert that conforms to irregular surfaces such as carpet, stone, or grout lines, providing a flexible seal in any environment. Moreover, the drop-bar mechanism ensures hinge-side actuation, preventing seal skidding and door hang-up during closure.

Features:

• Non-handed, full mortise design for versatile installation
• Drop-bar seal actuated by a jamb-contacting plunger for smooth operation
• Nylon brush conforms to irregular surfaces such as carpet, stone, and grout
• Compatible with 1-3/4″ and 1-3/8″ doors; includes end plates and screws
• Available in stock lengths 12″–72″; field-trimmable up to 2″
• Provides energy efficiency by reducing heat loss and controlling smoke/fume penetration
• Clean, flush-mounted aluminum case with symmetrical square design

Benefits:

• Keeps out air, moisture, dust, light, sound, and insects
• Easy and fast installation without disassembly
• Maintains door aesthetics while enhancing performance
• Ideal for upscale condos, commercial buildings, dormitories, and luxury hotels

Specifications:

• Base Material: Aluminum

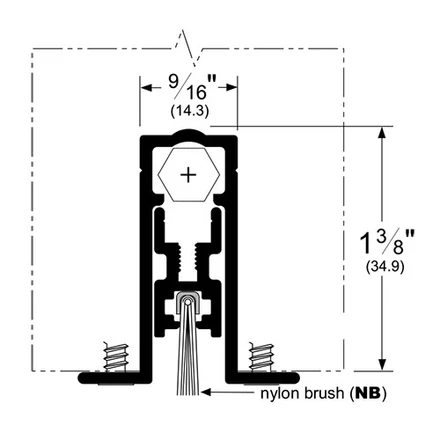

• Overall Height: 1 3/8″ | Width: 9/16″
• Fasteners: FHSMS #6 x 5/8″
• Maximum Length: 72″ | Minimum Length: 12″
• UL & ASTM Certified: UL 1784, UL 10C, ASTM E-283-04 (2012), ANSI/BHMA A156.22
• GREENGUARD Gold Certified
