The Pemko 346 Overhead Rain Drip Projection Strip is a fire-rated weatherstrip that protects doors from water damage. Because it is made of high-quality aluminum, it effectively deflects rain and moisture away from gaps at the top or bottom of doors, helping prevent seepage and prolonging door life.

It features an overhead rain drip with slotted holes, which allows for easy and secure installation. In addition, it should be ordered at least 4″ longer than the door width to ensure full coverage and proper water deflection.

Key Features

• Fire-rated aluminum construction
• Overhead rain drip with slotted holes
• Directs water away from door edges
• Easy to install with #6 x 5/8″ SMS fasteners

Benefits

• Protects doors from rain and moisture damage
• Enhances door durability and lifespan
• Helps maintain energy efficiency by reducing water infiltration
• Simple installation for commercial and residential use

Specifications

• Base Material: Aluminum
• Fasteners: SMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″

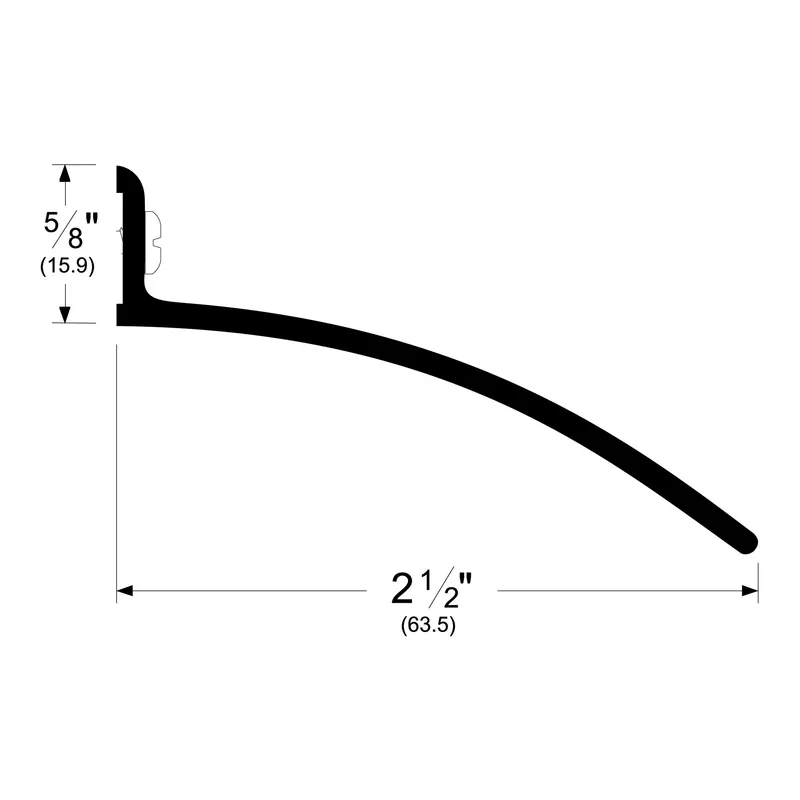

• Overall Height: 5/8″
• Width: 2 1/2″
• Weight: 0.35 lbs

Certifications

• UL 4L10 – Listed
• UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies

The Pemko 346 Rain Drip Projection Strip provides a reliable solution for keeping doors dry and protected. Its durable aluminum construction and fire-rated design make it a practical choice for commercial or residential doors exposed to the elements.

Finish Available
