Description

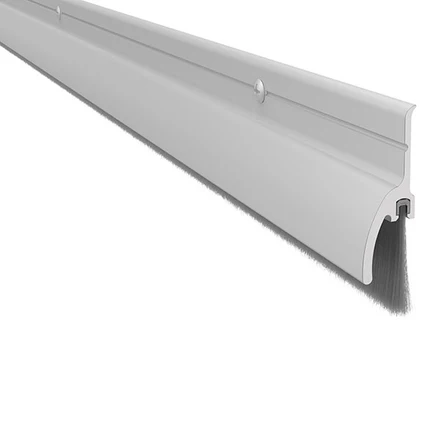

Pemko 345_NB Surface Plate Rain Drip-7/16″ Nylon Brush

The Pemko 345_NB Surface Plate Rain Drip is designed to shield doorways from rain, drafts, and debris. Featuring a durable 7/16″ nylon brush door seal, this surface-mounted rain deflector helps prevent water seepage while protecting the bottom of your door from daily wear and environmental damage.

Constructed with densely compressed nylon filaments secured in a high-quality aluminum retainer, this rain drip provides long-lasting performance in demanding commercial and residential settings. The aluminum casing includes slotted holes for easy adjustment and precise installation. The brush remains flexible in temperatures as low as -40°F and withstands heat above 400°F, ensuring reliable protection in extreme conditions.

Key Features

• Densely compressed nylon filaments encased in a durable aluminum retainer
• 7/16″ nylon brush for effective sealing and deflection
• Slotted holes for easy alignment and installation adjustments
• Suitable for hollow metal and wood doors
• Compatible with overhead, sectional, sliding, and automatic doors
• Brush maintains flexibility in extreme cold and high heat

Benefits

• Effectively deflects rain away from the bottom of the door
• Reduces infiltration of light, air, wind, rain, snow, smoke, and fumes
• Helps prevent heat loss and improves energy efficiency
• Naturally deters rodents and spiders (can be treated with household pest repellent for enhanced protection)
• Protects door bottoms from wear and environmental damage

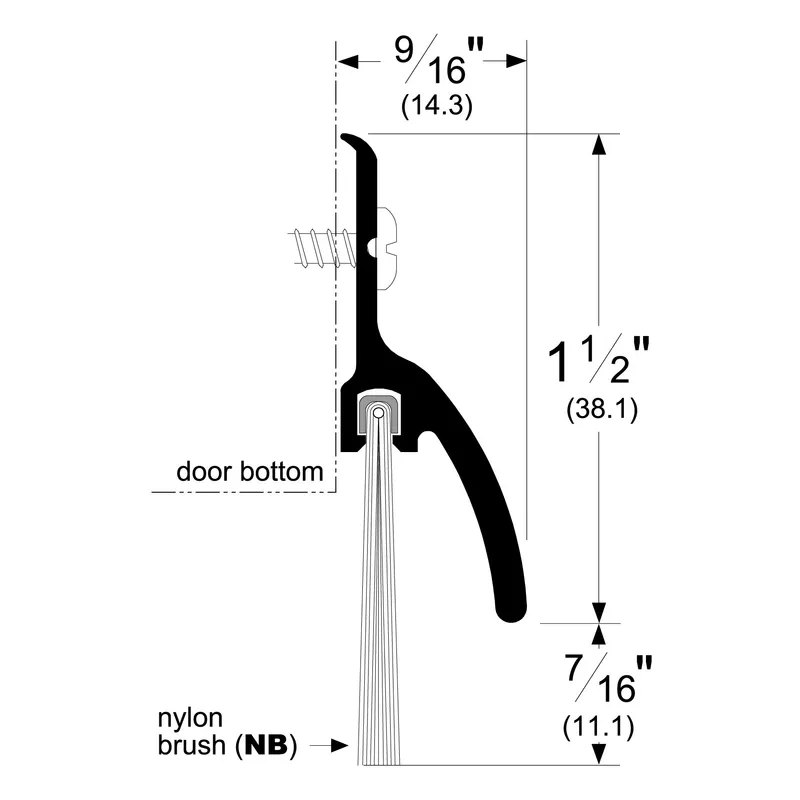

Specifications

• Base Material: Aluminum, Brass
• Fasteners: PHSMS #6 x 5/8″
• Width: 9/16″
• Minimum Length: 24″
• Maximum Length: 185″

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 1784 – Air Leakage Tests of Door Assemblies
• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

The Pemko 345_NB Surface Plate Rain Drip is a reliable, high-performance solution for protecting door openings against harsh weather and environmental infiltration—making it an ideal choice for commercial, industrial, and institutional settings.

Finish Available

• 345ANB: A – Mill Finish Aluminum
• 345BSPNB: BSP – Black Suede Powder Coat Aluminum
• 345DNB: D – Dark Bronze Anodized Aluminum
