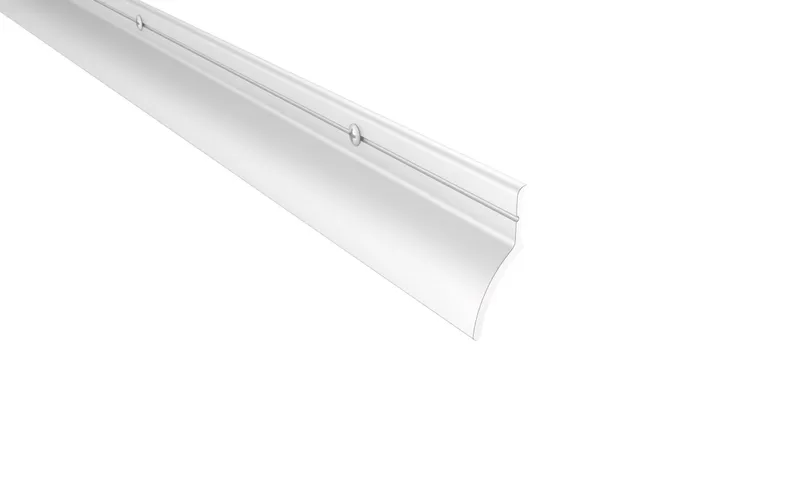

Pemko 345 Surface Plate Door Bottom Sweep with Rain Drip

The Pemko 345 Surface Plate Door Bottom Sweep with Rain Drip is designed for doorways where protection from rain and weather is essential. Featuring an extended rain deflector plate that projects 0.875″ to the floor and 0.625″ above the door bottom, this sweep helps direct water away from the entrance while reducing air, light, and moisture infiltration.

Built with a durable aluminum or brass base, this surface-mounted door sweep installs easily with slotted holes for precise adjustment.

Key Features

• Integrated rain drip for effective water deflection
• Deflector plate extends 0.875″ to floor and 0.625″ above door bottom
• Slotted holes for easy adjustment and alignment
• Recommended gasket compression: 1/16″
• Option available without gasket
• Surface-mounted design for straightforward installation

Benefits

• Deflects rain away from the bottom of the door
• Reduces infiltration of air, wind, rain, snow, smoke, and light
• Helps prevent heat loss and improve energy efficiency
• Low VOC emission materials support healthier indoor environments
• Ideal for commercial and exterior door applications

Specifications

• Base Material: Aluminum, Brass
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Width: 9/16″

Certifications & Compliance

• ANSI/BHMA A156.22 – Door Gasketing & Edge Seal Systems

The Pemko 345 offers reliable weather protection, easy installation, and long-lasting performance for commercial and residential doors exposed to the elements.

Finish Available

• 345A: A – Mill Finish Aluminum
• 345BSP: BSP – Black Suede Powder Coat Aluminum
• 345D: D – Dark Bronze Anodized Aluminum
