Description

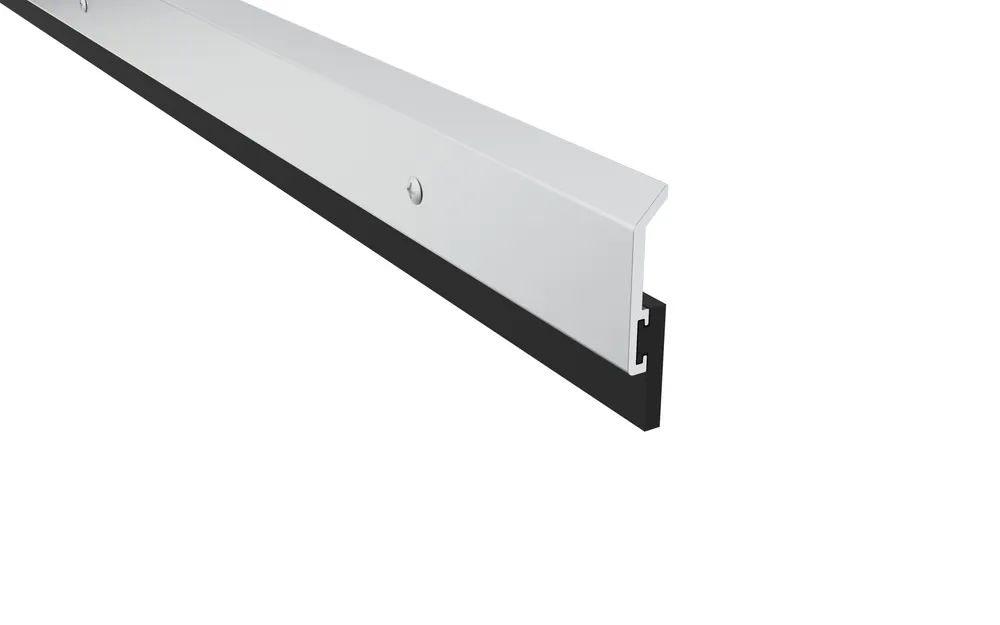

Pemko 315_N Surface Plate Door Sweep – Neoprene Insert
The Pemko 315_N Surface Plate Door Sweep is a high-performance solution for sealing the gap between a door bottom and the threshold or floor surface. Featuring a 1.25″ aluminum casing and a durable neoprene extrusion, this door sweep effectively blocks smoke, fire, air, wind, and moisture infiltration, enhancing energy efficiency and occupant comfort. Designed for easy surface-mounted installation, it comes with color-coordinated screws and slotted holes for quick adjustment.
Ideal for commercial and residential applications, the 315_N can seal gaps up to 7/16″ and is resistant to abrasion, heat, ozone, weather, and polar substances, making it a reliable choice for long-term performance.
Key Features
- Surface-applied design for easy installation
- 1.25″ aluminum casing with neoprene synthetic rubber extrusion
- Slotted holes for simple height adjustment
- Seals gaps up to 7/16″ between door and threshold/floor
- Recommended gasket compression: 1/16″
- Screws included and color-coordinated with casing
- Not recommended for exposure to gasoline, kerosene, propane, or mineral oil
Benefits
- Reduces infiltration of air, light, smoke, wind, rain, and snow
- Prevents heat loss and improves energy efficiency
- Provides excellent resistance to abrasion, heat, ozone, and weather
- Resistant to polar substances and steam
- Supports compliance with building codes and energy-saving standards

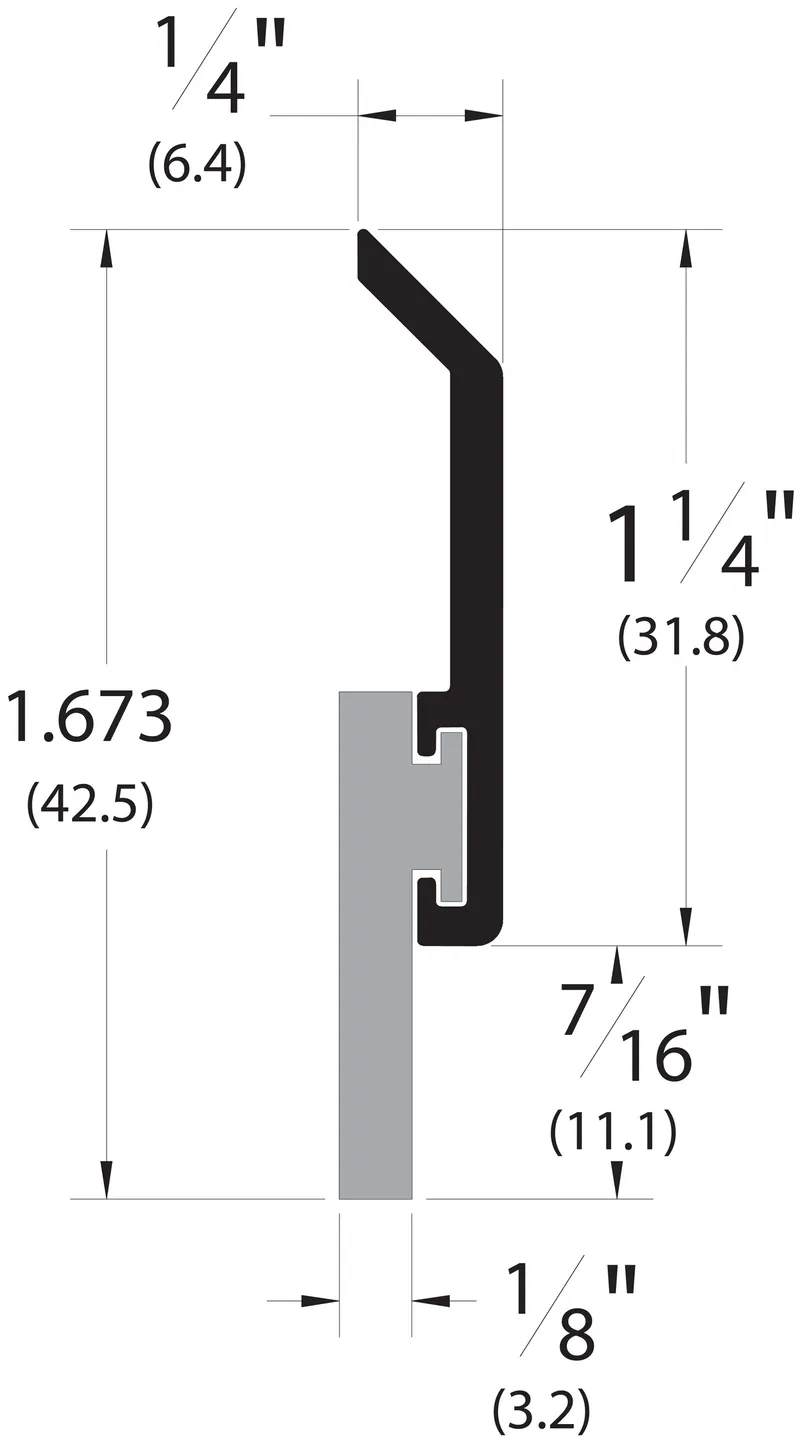

Specifications
- Base Material: Aluminum, Brass, Stainless Steel
- Fasteners: PHSMS #6 x 5/8″
- Minimum Length: 24″
- Width: 1/4″
Certifications & Compliance
- GREENGUARD Gold Certified
- UL 1784 – Air Leakage Tests of Door Assemblies
- UL 10C – Positive Pressure Fire Tests
- ASTM E-283-04 (2012)
- ASTM E90-2009
- ANSI/BHMA A156.22 – Door Gasketing & Edge Seal Systems
The Pemko 315_N Surface Plate Door Sweep – Neoprene Insert provides reliable smoke, fire, and air sealing, combining durability with easy installation for commercial and residential doors.
Finish Available
- 315BSPN: BSP – Black Suede Powder Coat Aluminum
- 315CN: C – Clear Anodized Aluminum
- 315DN: D – Dark Bronze Anodized Aluminum
