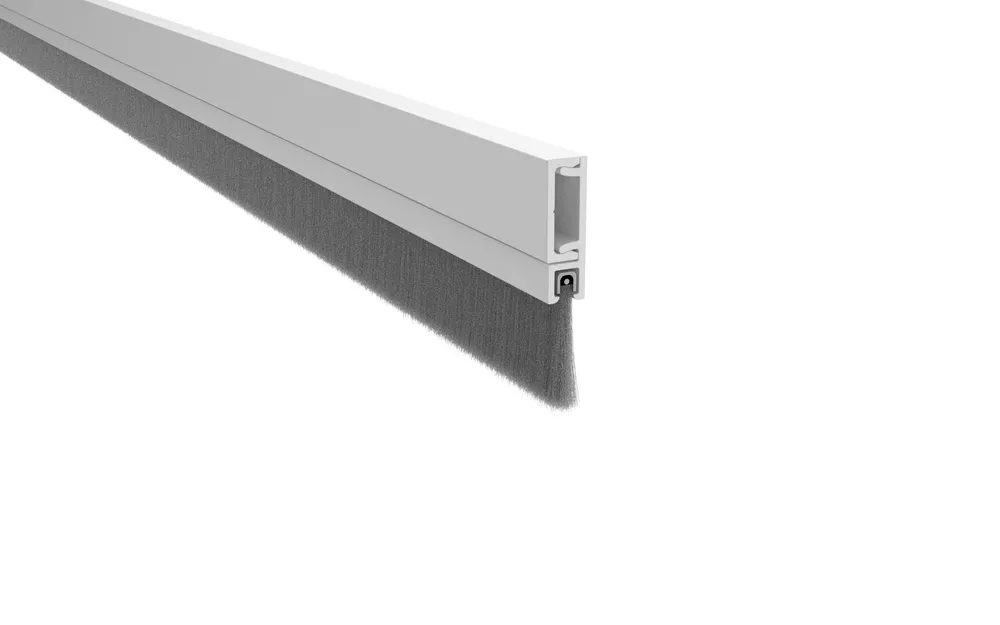

The Pemko 29326_NB Door Bottom Sweep is designed to seal the bottom of doors and block unwanted elements. In addition, this Pemko 29326_NB Door Bottom Sweep features a concealed fastener design, a 180° aluminum retainer, and a 5/8″ nylon brush seal. As a result, it helps stop dust, light, smoke, fire, and insects from entering.

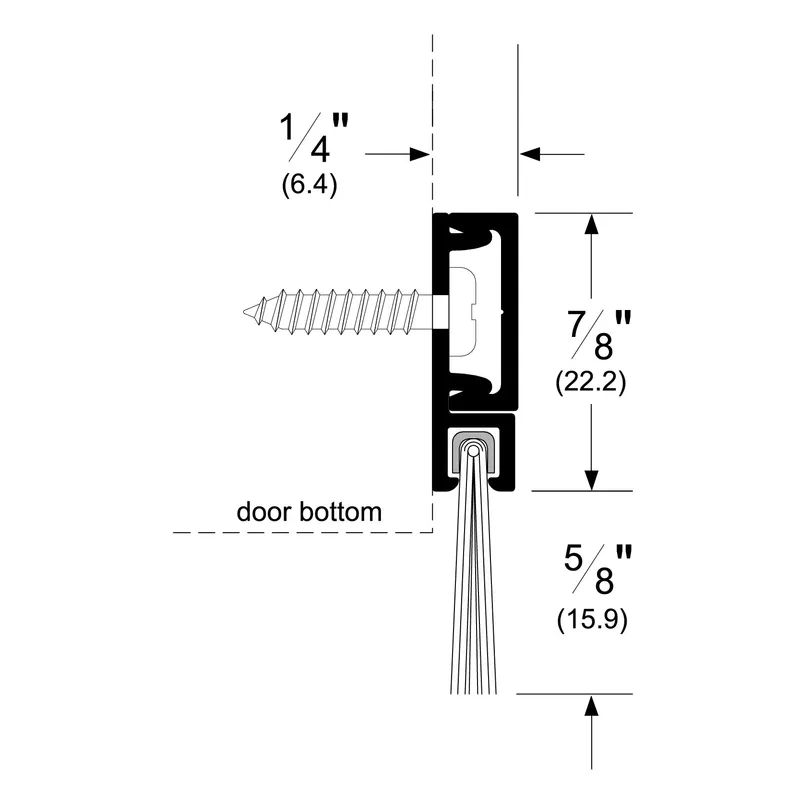

This sweep contains compressed nylon filaments secured in a strong aluminum retainer. The brush height is .625″, while the casing and snap-on cover are .875″. Moreover, the brush stays flexible from -40°F to over 400°F, so it performs well in both hot and cold conditions. Also, the brush glides smoothly and adjusts to slightly uneven floors. Furthermore, slotted holes allow quick and easy adjustment during installation.

The Pemko 29326_NB Door Bottom Sweep works on hollow metal and wood doors. Additionally, it can be used on overhead, sectional, sliding, and automatic doors. Therefore, it is a versatile option for commercial buildings. At the same time, the aluminum snap-on cover hides mounting screws for a clean look. Because of this, it also helps prevent tampering and vandalism.

Key Features

• 5/8″ (.625″) nylon brush seal
• Compressed nylon filaments in aluminum retainer
• Concealed fastener design with snap-on cover
• Flexible from -40°F to 400°F+
• Slotted holes for easy adjustment
• Suitable for hollow metal and wood doors
• Compatible with overhead, sectional, sliding, and automatic doors

Benefits

• Blocks dust, smoke, light, fire, weather, and insects
• Snap-on aluminum cover conceals screws for a clean look
• Cover snaps securely into place to help prevent vandalism
• Brush glides smoothly over slightly uneven floors
• UV stable, durable, and cost-effective
• Naturally repels rodents and spiders

Specifications

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1 1/2″
• Width: 1/4″

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 4L10 Listed
• UL 1784 – Air Leakage Tests of Door Assemblies
• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

The Pemko 29326_NB Door Bottom Sweep delivers long-lasting performance, clean aesthetics, and reliable sealing for commercial and industrial door applications.
