Description

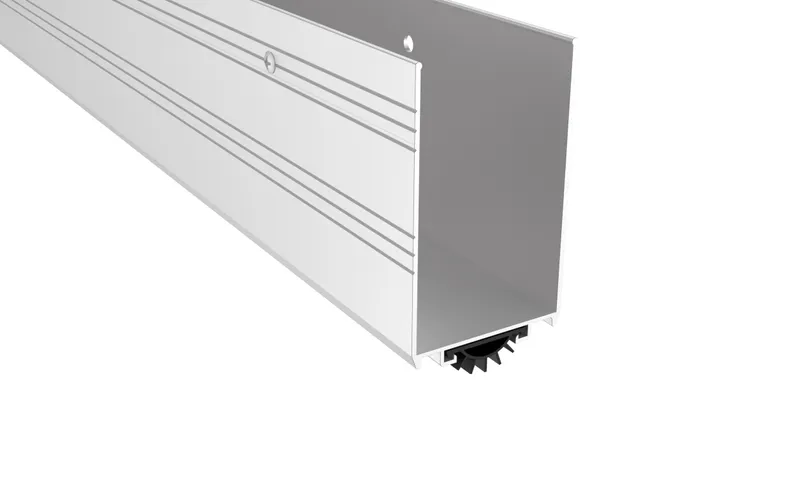

Pemko 221_V U-Shaped Door Shoe & Kick Plate with Eco-V

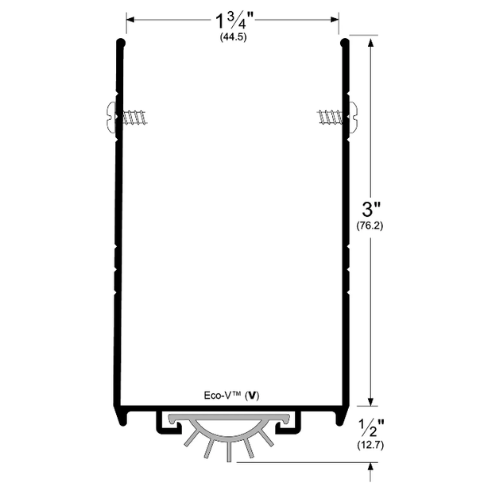

The Pemko 221_V U-Shaped Door Shoe & Kick Plate with Eco-V Insert combines bottom sealing performance with added door protection in one integrated solution. Designed for 1.75″ thick doors, this combination door shoe and kick plate seals gaps up to 0.5″ while extending 3″ up both the face and back of the door—ideal for restoring damaged doors and protecting against heavy traffic abuse.

The durable aluminum casing and Eco-V insert work together to block unwanted airflow and light, enhance privacy, and improve energy efficiency. Slotted holes allow for easy adjustment, with a recommended gasket compression of 1/16″ for optimal sealing performance.

Key Features

• Combination door shoe and kick plate
• Seals gaps up to 0.5″ at the bottom of the door
• Casing extends 3″ up the face and back of door
• Designed for 1.75″ thick doors
• Slotted holes for easy adjustment
• Recommended compression: 1/16″
• Blocks airflow and light while enhancing privacy
• Protects bottom and lower face of door from wear and damage

Eco-V Insert Benefits

• GREENGUARD Gold Certified, eco-friendly material
• Bio-based and free of phthalates and heavy metals
• Surpasses traditional vinyl in durability and service life
• Meets Pemko standards for compression and tensile strength
• Prevents air leakage for improved energy performance
• Stabilized with organic-based, zinc-free materials
• Limited UV/weather resistance; good resistance to adhesives and mild cleaners

Specifications

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 3 1/2″

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 1784 – Air Leakage Tests
• UL 10C – Positive Pressure Fire Tests
• ASTM E-283-04 (2012)
• ASTM E 90-2009
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

The Pemko 221_V U-Shaped delivers durable, code-compliant protection and sealing performance, making it an ideal solution for high-traffic commercial and institutional environments.

Finish Available

• 221AV – A – Mill Finish Aluminum
• 221DV – D – Dark Bronze Anodized Aluminum
