Description

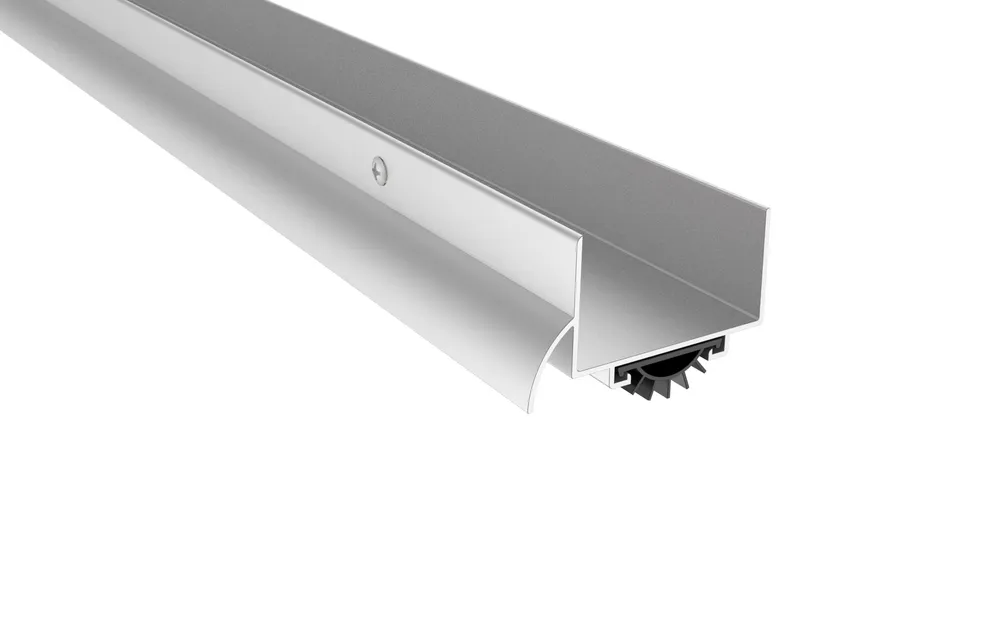

Pemko 216_V U-Shaped Door Shoe with Eco-V Insert

The Pemko 216_V U-Shaped Door Shoe is a fire- and smoke-rated solution designed to fill the gap under 1 3/4″ thick doors while maintaining a clean, finished appearance. Featuring a durable Eco-V (vinyl) insert, it effectively blocks airflow, light, smoke, and fire, providing privacy and energy efficiency. The integrated rain drip design deflects water from the door bottom, ensuring superior weather protection.

Key Features

• Fills gaps under doors while maintaining appearance
• Rain drip design diverts water from door bottom
• Blocks unwanted airflow, light, smoke, and fire
• Slotted holes and elongated slots allow easy adjustment during installation
• Recommended gasket compression: 1/16″
• Eco-friendly Eco-V insert, free of phthalates and heavy metals
• Durable and long-lasting, outperforming traditional vinyl
• Prevents air leakage and enhances energy efficiency

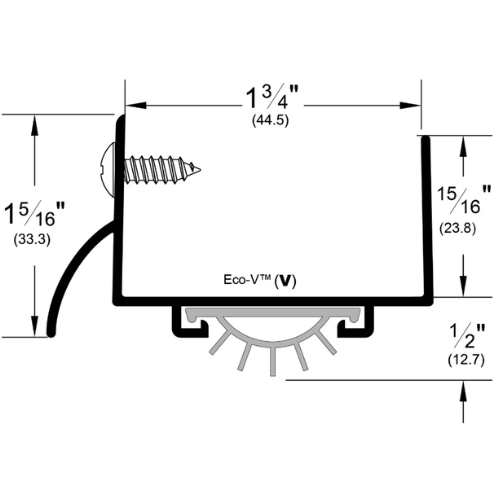

Specifications

• Base Material: Aluminum or Brass
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1 9/16″

Eco-V Insert Benefits

• GREENGUARD Gold certified, bio-based, and environmentally safe
• Heavy metal free with organic-based, zinc-free stabilizers
• Supports green building programs and emissions criteria compliance
• Limited UV and weather resistance; good chemical resistance to adhesives and mild cleaning solutions
• Meets Pemko standards for compression and tensile strength, ensuring long-lasting performance

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 1784 – Air Leakage Tests of Door Assemblies
• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

Applications

• Fire-rated and smoke-rated door assemblies
• Commercial and residential doors 1 3/4″ thick
• Air, light, smoke, and sound blocking at door bottoms
• Rain and weather protection for exterior doors

The Pemko 216_V U-Shaped Door Shoe with Eco-V Insert delivers durable, eco-friendly, and code-compliant protection at the bottom of doors, enhancing both safety and energy efficiency in any building.

Finish Available

• 216AV – A – Mill Finish Aluminum
• 216DV – D – Dark Bronze Anodized Aluminum
• 216BSPV – BSP – Black Suede Powder Coat
• 216PWV – WSP – White Suede Powder Coat
