Description

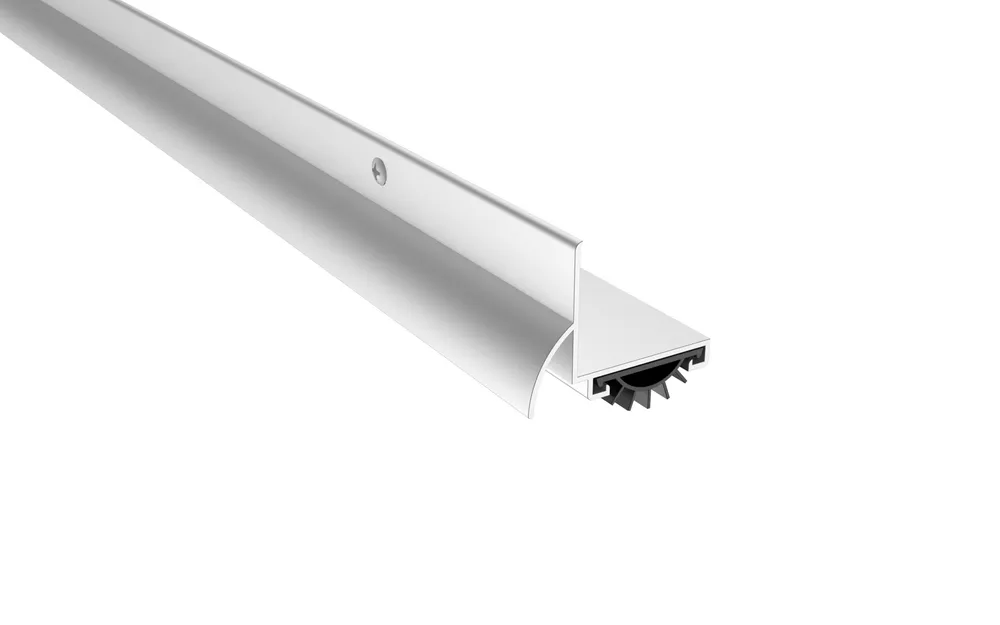

Pemko 210_V L-Shaped Door Shoe with Eco-V Insert

The Pemko 210_V L-Shaped Door Shoe is a surface-mounted solution designed to fit all door thicknesses, providing reliable protection at the bottom of doors. Featuring an Eco-V (vinyl) insert, this door shoe blocks smoke, fire, airflow, light, and unwanted elements while enhancing privacy and energy efficiency. Its rain drip design deflects water from the door bottom, offering superior weather protection.

Key Features

• Fills gaps up to 0.5 inches for effective sealing
• Rain drip design diverts water, protecting door bottoms
• Slotted holes allow easy adjustment during installation
• Recommended gasket compression: 1/16″
• 1/4″ undercut supplied from length ordered (unless specified otherwise)
• Eco-friendly Eco-V insert, free of phthalates and heavy metals
• Surpasses traditional vinyl in durability and service life
• Prevents air leakage, enhances energy efficiency, and reduces maintenance

Specifications

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1 9/16″

Eco-V Insert Benefits

• GREENGUARD Gold certified, bio-based, and environmentally safe
• Heavy metal free and stabilized with organic-based zinc-free materials
• Limited UV and weather resistance; good chemical resistance to adhesives and mild cleaning solutions
• Supports green building programs and emissions criteria compliance

Certifications & Compliance

• GREENGUARD Gold Certified
• UL 1784 – Air Leakage Tests of Door Assemblies
• UL 10C – Positive Pressure Fire Tests of Door Assemblies
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems

Applications

• Commercial and residential doors of all thicknesses
• Fire-rated and smoke-rated door assemblies
• Air, light, and sound blocking at door bottoms
• Rain and weather protection for exterior doors

The Pemko 210_V L-Shaped Door Shoe with Eco-V Insert provides a durable, eco-friendly, and code-compliant solution for protecting door bottoms while enhancing energy efficiency and privacy.

Finish Available

• 210AV – A – Mill Finish Aluminum
• 210DV – D – Dark Bronze Anodized Aluminum
