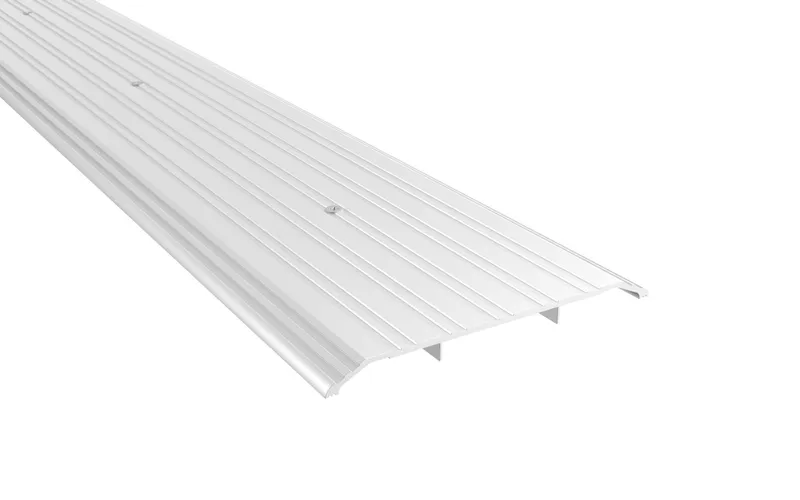

The Pemko 176 Flat Saddle Threshold – 7″ x 1/2″ provides a smooth and safe transition under doors in commercial and institutional spaces. Because it measures 7″ wide and 1/2″ high, it ensures ADA accessibility while remaining strong and durable for long-term use.

Moreover, this threshold is barrier-free and fire-rated, making it suitable for a wide range of applications. In addition, its symmetrical design allows use in offset conditions with elevators, and it comes in multiple finishes to match any interior style. Also, it is BHMA certified and has been tested thoroughly, so you can rely on its performance. For easy installation, wood screw fasteners are included, but other fasteners are available as needed. Altogether, this threshold combines durability, accessibility, and convenience in one high-quality solution.

Features

• Low-profile 1/2″ height for smooth transitions
• Barrier-free and fire-rated for safety
• Symmetrical design for use in offset conditions with elevators
• Wood screw standard; other fasteners available

Benefits

• ADA accessible for all users
• Creates a smooth, reliable transition under doors
• Durable, high-performing for commercial traffic

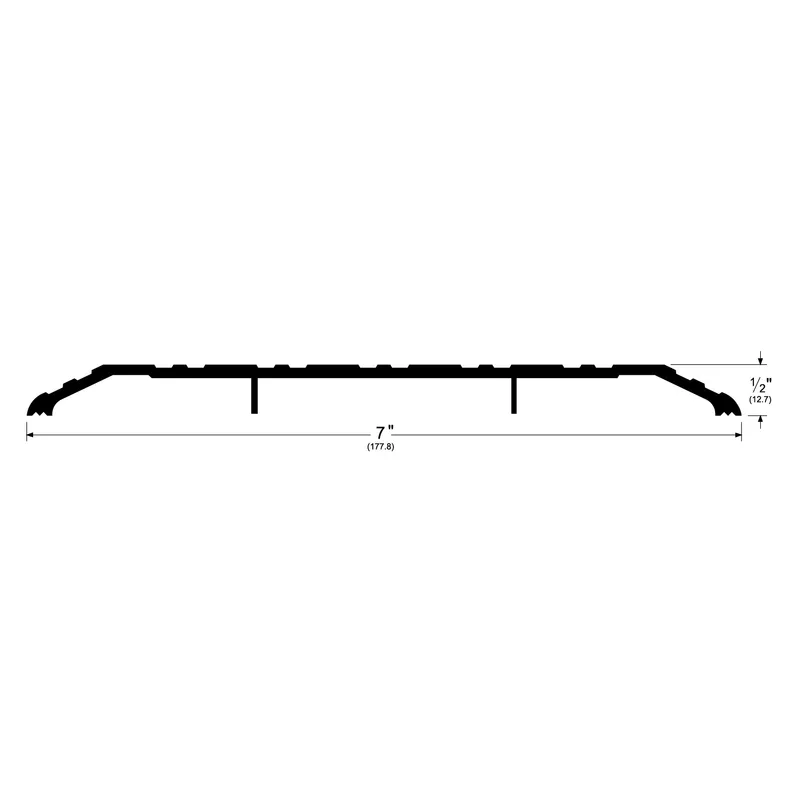

Specifications

• Base Material: Aluminum, Brass
• Fasteners: WS #10 x 1.5″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1/2″
• Width: 7″
• Weight: 1.29 lbs

Certifications

• UL 10C Positive Pressure
• UL 4L10 Listed
• ADA Compliant
• ANSI/BHMA A117.1
• ANSI/BHMA A156.21 Thresholds

Finish Available
