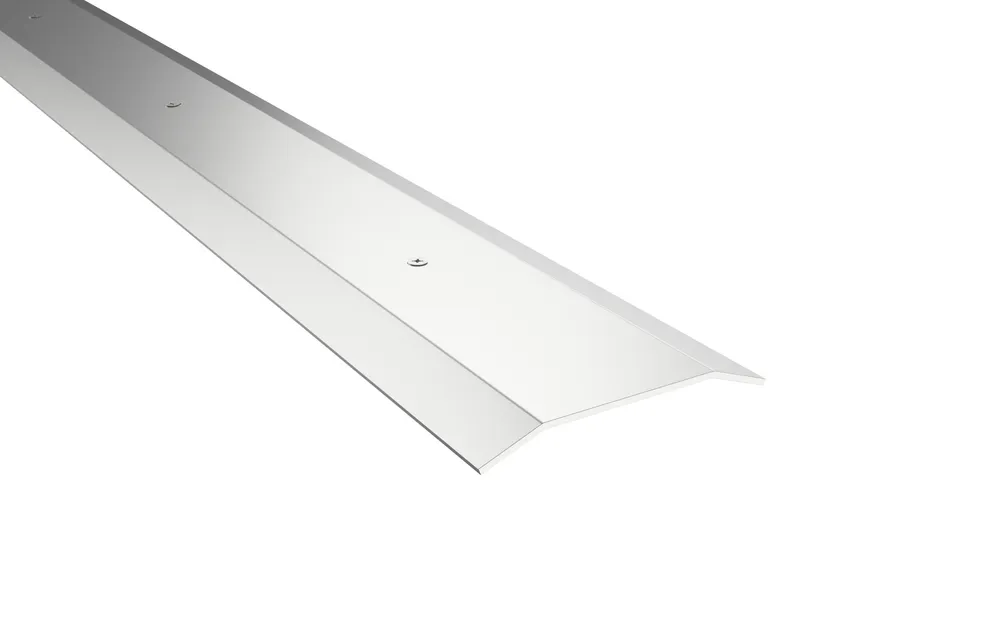

The Pemko 154 Flat Saddle Threshold 5″ wide is a commercial-grade aluminum threshold designed to provide smooth and safe door transitions. With a 1/2″ low-profile height and durable smooth top surface, the Pemko 154 helps reduce mud, ice, and snow buildup in high-traffic environments.

This flat saddle threshold is barrier-free, fire rated, and ADA compliant, making it ideal for commercial and institutional applications. When paired with an automatic door bottom, it creates an even sealing surface that improves energy efficiency and door performance. Available in multiple finishes and custom cut to size, it offers flexibility for a wide range of project requirements.

Features

• Smooth top surface
• Low-profile design (1/2″ height)
• Barrier-free and fire rated
• Compatible with automatic door bottoms for a tight, even seal
• Wood screws standard (other fasteners available)

Benefits

• Provides smooth, safe transitions
• Reduces accumulation of mud, snow, and debris
• Custom cut to size for project flexibility

Specifications

• Profile Width: 5″
• Overall Height: 1/2″
• Minimum Length: 24″
• Maximum Length: 185″

Certifications

• UL 10C Positive Pressure
• UL 4L10 Listed
• ADA Compliant
• ANSI/BHMA A117.1
• ANSI/BHMA A156.21

Finish Available
