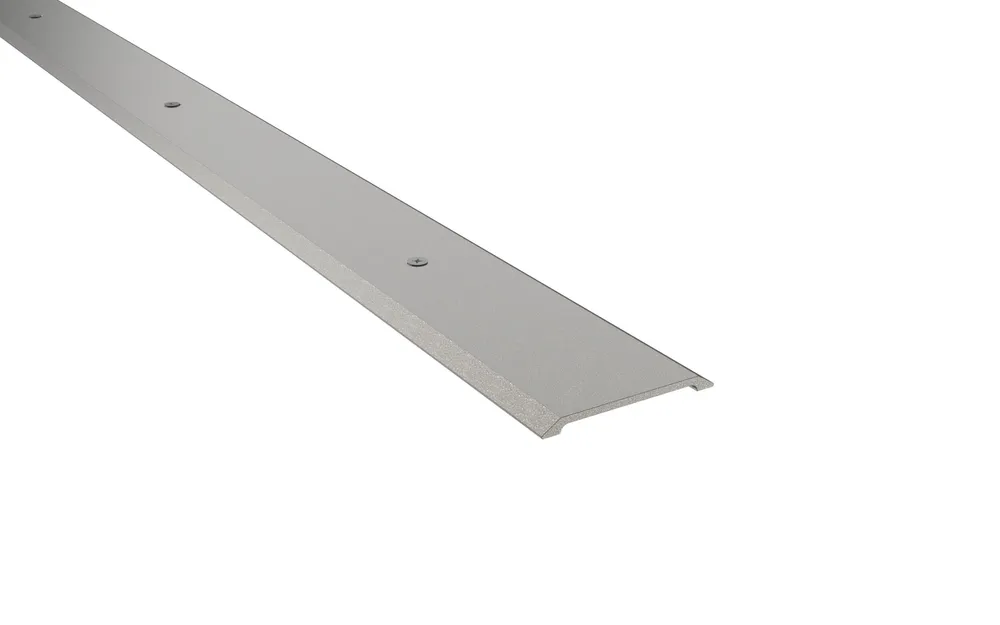

The Pemko 151 Flat Saddle Threshold is a 3″ wide, symmetrical threshold designed to span under doors, creating a smooth and even transition between spaces. In addition, it prevents the accumulation of mud, ice, and snow in crevices, making maintenance quick and straightforward.

Its smooth, low-profile surface allows easy passage for wheelchairs and foot traffic. When used with automatic door bottoms, it provides a consistent, even sealing surface for improved energy efficiency and comfort. This threshold is also fire-rated, ensuring safety without compromising accessibility.

Key Features

• Smooth top and low profile
• Can be used with automatic door bottoms for a uniform seal
• Spans under doors for a clean transition
• Barrier-free and fire-rated
• Standard wood screw installation; other fasteners available

Benefits

• Creates a smooth, safe transition between spaces
• Prevents debris and moisture buildup
• Easy to maintain and clean
• Supports accessibility compliance

Specifications

• Base Material: Aluminum, Brass
• Fasteners: SMS #10 x 1″
• Maximum Length: 185″
• Minimum Length: 24″
• Overall Height: 1/4″
• Width: 3″
• Weight: 0.48 lbs

Certifications

• UL 10C – Positive Pressure Fire Rated
• UL 4L10 – Listed
• ADA Compliant – Barrier-Free
• ANSI/BHMA A117.1 – Accessibility Standard
• ANSI/BHMA A156.21 – Threshold Standard

Overall, the Pemko 151 Flat Saddle Threshold offers a durable, safe, and accessible solution for both commercial and residential doors. Therefore, it is ideal for spaces that require smooth transitions, easy maintenance, and fire-rated performance.

Finish Available
