Description

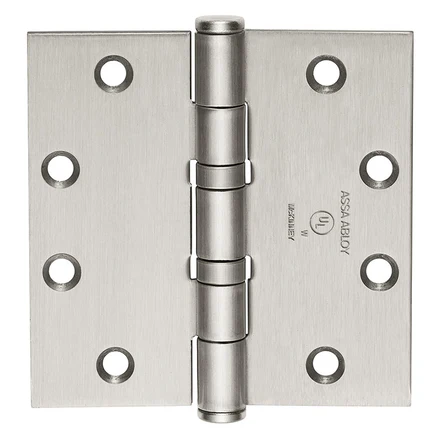

McKinney® TA2314 – 4.5″ x 4.5″ Non-Ferrous Bearing Hinge

The McKinney® TA2314 – 4.5″ x 4.5″ Non-Ferrous Bearing Hinge is designed for smooth and dependable door operation in commercial settings. Made from brass or stainless steel, the McKinney® TA2314 offers corrosion resistance and long-lasting durability for standard weight doors.

Because it features an oil-impregnated bearing (TA design), this hinge delivers quiet and consistent performance. In addition, it is recommended for standard weight, medium-frequency doors, including doors with closing devices. Therefore, it works well for common flush door, frame, and wall applications, as well as doors with a beveled edge on the hinge side.

Features

• Size: 4-1/2″ x 4-1/2″
• Material: Brass or Stainless Steel (Non-Ferrous)
• Weight: Standard Weight (.134 gauge)
• Design: Full Mortise, 5-Knuckle
• Bearing Type: Oil-Impregnated Bearing (TA)
• Template hole pattern for easy installation
• Meets ANSI/BHMA A156.1 (.134) Standard Weight
• ANSI Cross Reference: A5112, A2112
• UL Listed – 3 Hour Fire Rating
• NFPA 80 Compliant
• Includes wood and metal screws

Benefits

• First, it provides smooth and long-lasting door operation.
• In addition, the non-ferrous material helps resist rust and corrosion.
• As a result, it performs well in commercial settings.
• Furthermore, it meets fire and safety standards for code compliance.
• Overall, it offers dependable performance for medium-duty doors.

Applications:

This hinge is recommended for common flush door, frame, and wall installations in offices, schools, healthcare facilities, and other commercial buildings. Whenever a standard weight hinge is needed for medium-frequency doors—or doors with closing devices—the McKinney® TA2314 is a durable and trusted choice.

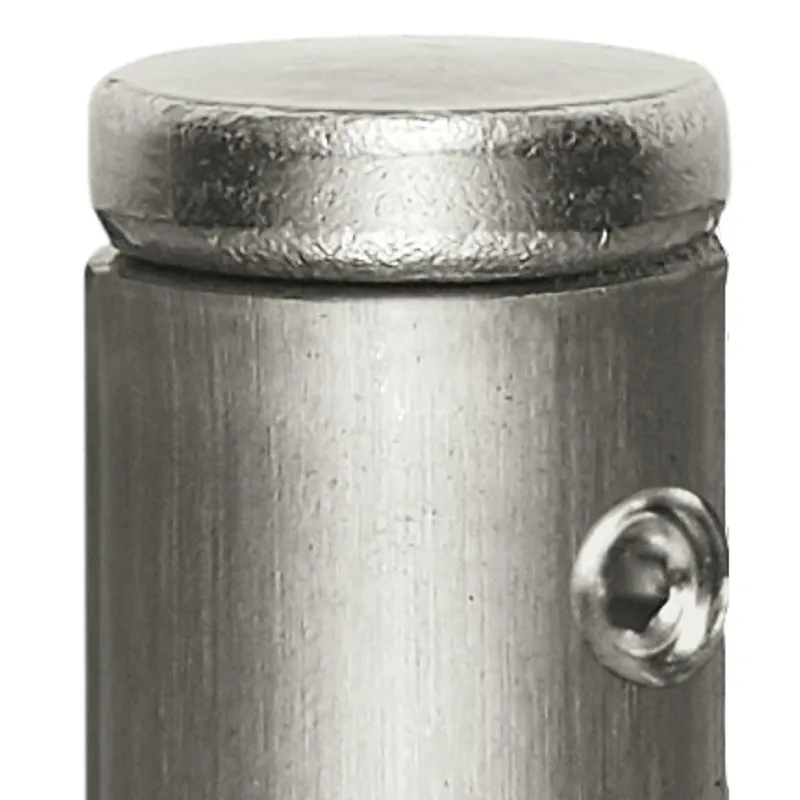

Optional Security Feature:

An NRP (Non-Removable Pin) option is available for outswinging exterior doors with locking hardware. In this case, a set screw in the barrel prevents removal of the hinge pin, which improves security.
