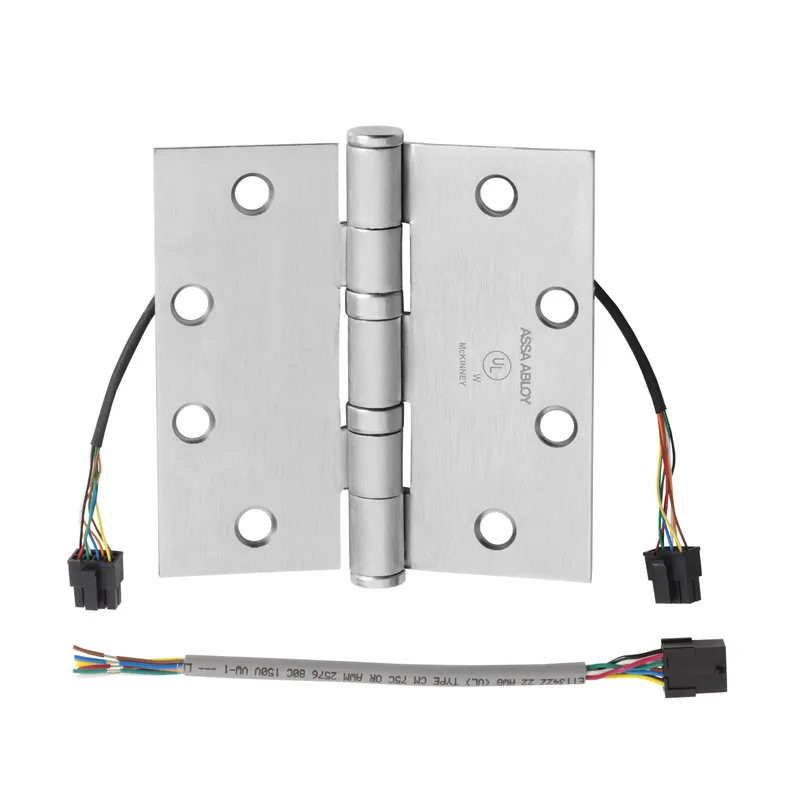

McKinney® TA2714 QC8 Full Mortise Hinge, 8 Wire

The McKinney® TA2714 QC8 Full Mortise Hinge provides reliable power transfer from the jamb through the hinge into the door, supporting electrified hardware while keeping all wiring concealed for a clean and secure appearance. Featuring QC8 ElectroLynx® Quick Connect wiring with 8 wires and 4 circuits, this hinge ensures fast, simple installation with no exposed wiring.

Features

• QC8 Quick Connect concealed wiring with 8 wires and 4 circuits
• Five-knuckle full mortise design with template hole pattern
• ElectroLynx® plug connectors simplify installation and eliminate exposed wiring
• Pigtail included for easy connection to source wiring
• Brass eyelets protect wires and enhance durability
• Compatible with ASSA ABLOY Group electro-mechanical hardware
• Suitable for use with hinge pin door stops to protect doors and walls

Benefits

• Provides constant power to electrified door hardware
• Concealed wiring improves door aesthetics and reduces tampering
• Supports standard weight, medium-duty doors with closing devices
• Quick and simple installation saves time and effort
• Performs reliably at 4 amps continuous per circuit @ 24V AC/DC

Specifications

• Hinge Type: Full Mortise
• Knuckles: Five
• Size: 4-1/2″ x 4-1/2″
• Bearings: Oil Impregnated
• Usage: Medium Duty
• Base Material: Steel
• Weight: Standard
• Fire Rating: UL Listed
• ANSI/BHMA Standard: A156.1
• ANSI Cross Reference: A8112
• Corner Shape: Square
• Description: Standard Weight Full Mortise Five Knuckle Hinge
