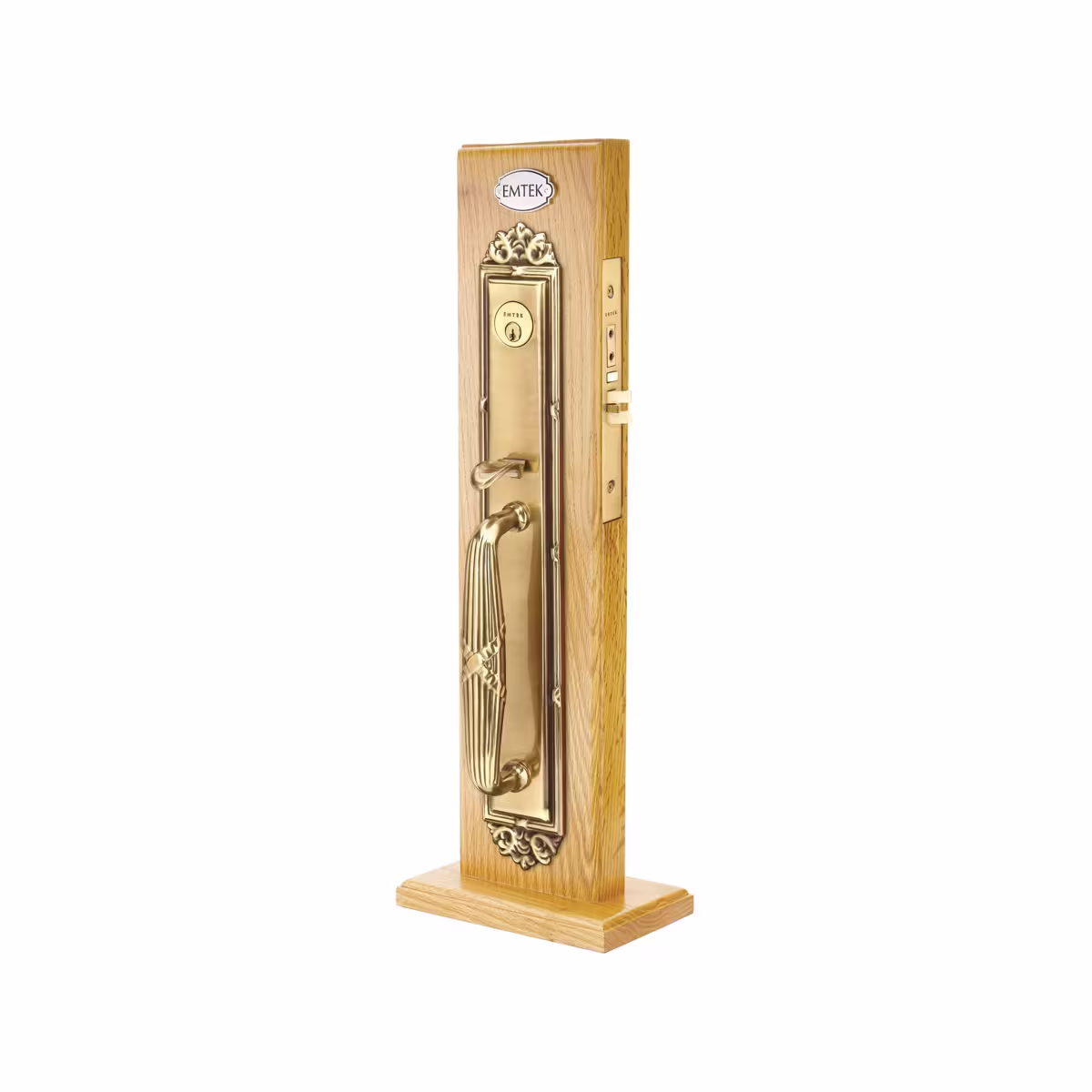

Emtek Versailles Mortise

The Emtek Versailles Mortise embodies the elegance and artistry of French design, inspired by the grandeur of the Palace of Versailles. Part of Emtek’s Ribbon & Reed Collection, it showcases a graceful ribbon pattern intertwined with a delicate reed motif, creating a look that reflects both luxury and heritage. Although this design carries a regal presence, its versatility allows it to enhance craftsman, colonial, and traditional-style homes with equal sophistication.

Expertly crafted from solid brass, the Versailles Mortise offers unmatched durability and refined detail. Additionally, its UL Listed heavy-duty mortise lock box guarantees lasting performance and superior protection, while its timeless styling transforms any entryway into a true architectural statement.

Functions

• F13 Mortise (Standard Keyed Entry): Operates as a traditional keyed entry lock. The exterior key controls both bolts, while the interior lever retracts the latch and deadbolt simultaneously for smooth and secure operation. This function combines safety and convenience, making it ideal for everyday use.
• F20 Mortise (Always Locked): Designed for maximum exterior security, this option keeps the door locked from the outside at all times. However, it includes stop and release buttons on the latch plate for temporary override when needed. The interior lever still retracts both latch and deadbolt effortlessly for easy exit.
• Dummy Function: Serves as a non-operational but decorative companion to the active door. Perfect for double or French doors, this function maintains visual balance while completing the elegant look of your entryway.

Each function includes UL 180-minute fire rating, a forged deadbolt with anti-saw inserts, anti-pick latches, anti-friction triggers, and a deadlocking latch bolt, all designed to enhance performance and security.

Product Overview

• Can be ordered with any Emtek brass knob or lever for interior trim
• Sold as a complete set, including latch and strike plate
• Offered in 2-1/2″ or 2-3/4″ backsets
• Standard mortise door prep ANSI A115.1
• UL Listed mortise with ANSI F13 or F20 function
• Schlage C keyway for smooth key operation
• Handing required for all mortise locks
• Standard door thickness: 1-3/4″ (specify if thicker)
• Standard for in-swing doors; out-swing option available upon request
