Description

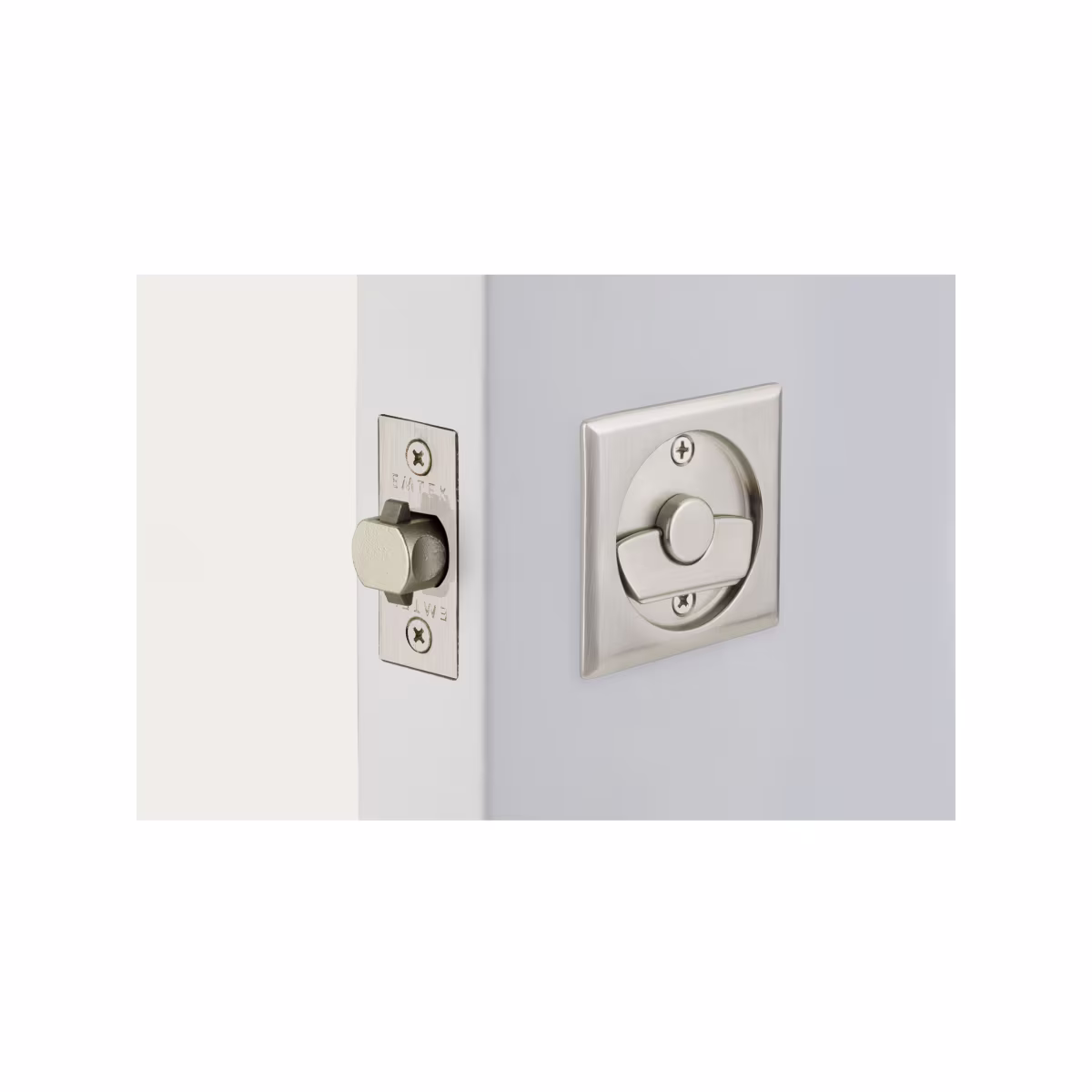

Emtek Square Pocket Door Tubular Lock Set

The Emtek Square Pocket Door Tubular Lock Set combines modern styling with lasting durability, making it a premium choice for sliding pocket doors. Built on Emtek’s tubular lock platform, it offers a stronger and more refined option compared to standard pocket door hardware. With solid brass trim, an all-metal housing, and a casted nose bolt, this set is designed for dependable performance and smooth operation in everyday use.

Functions:

• Passage – Non-locking function with strike plate and pop-out edge pull, ideal for hallways or closets
• Privacy – Includes a 2-in-1 tubular latch, pop-out edge pull, strike plate, and dust box, providing secure closure for bedrooms or bathrooms
• Dummy – Non-functional trim with edge pull, designed for double-door applications where one door acts as a stationary jamb

Specifications:

• Fits door thickness: 1-3/8″ to 1-3/4″
• Backset: 2-3/8″ only
• Door prep: 2-1/8″ bore hole with 1″ cross bore (standard tubular prep)
• Plate size: 2-1/2″ x 2-1/2″ square design
• Supplied as a complete set with strike plate and matching screws

Features & Benefits:

• Solid brass trim for strength and a refined appearance
• All-metal housing with casted nose bolt for long-lasting durability
• Pop-out edge pull for smooth operation of sliding doors
• Easy installation on standard tubular door preps
• Privacy dust box included for added strength and stability
• Available in 10 finishes to coordinate with other Emtek hardware

Combining function, durability, and a modern square profile, this pocket door tubular lock set enhances interiors while delivering a dependable solution for sliding door applications.
